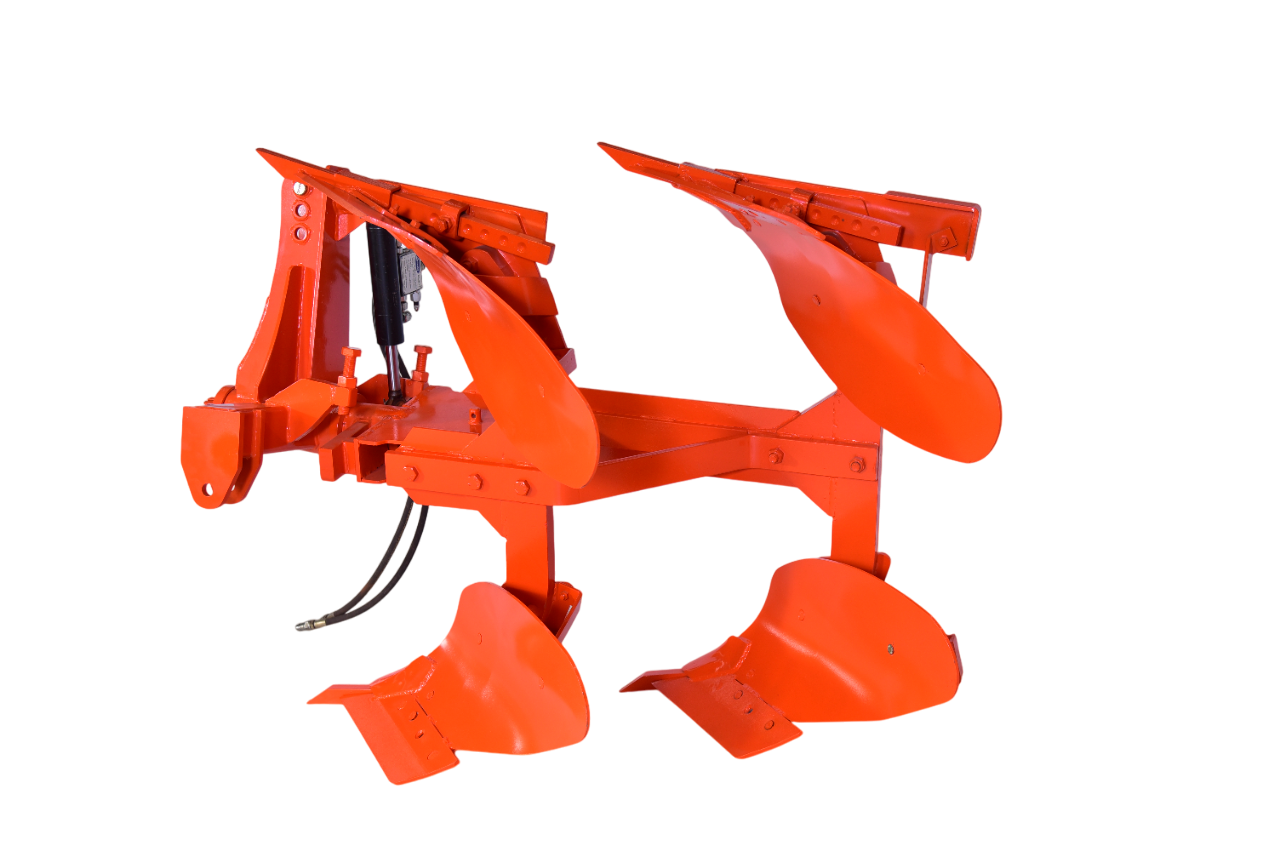

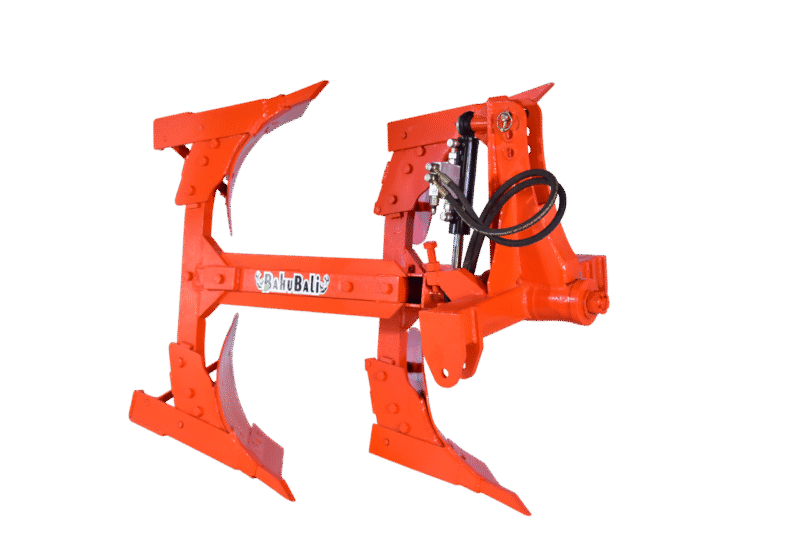

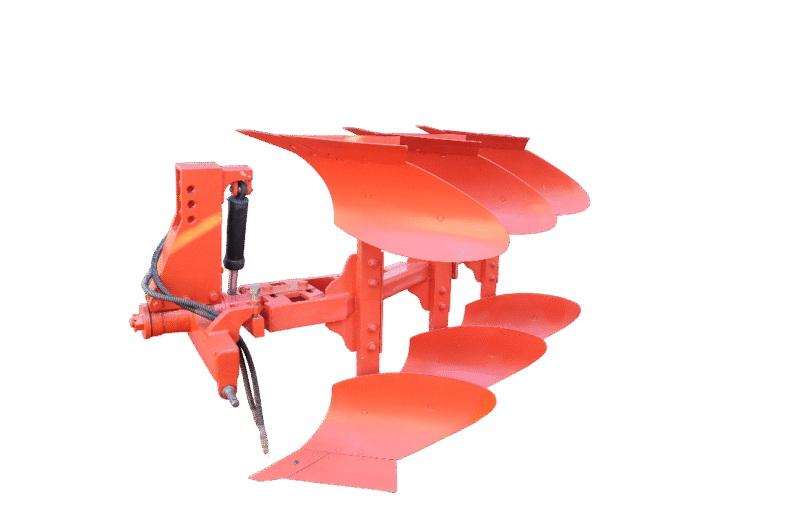

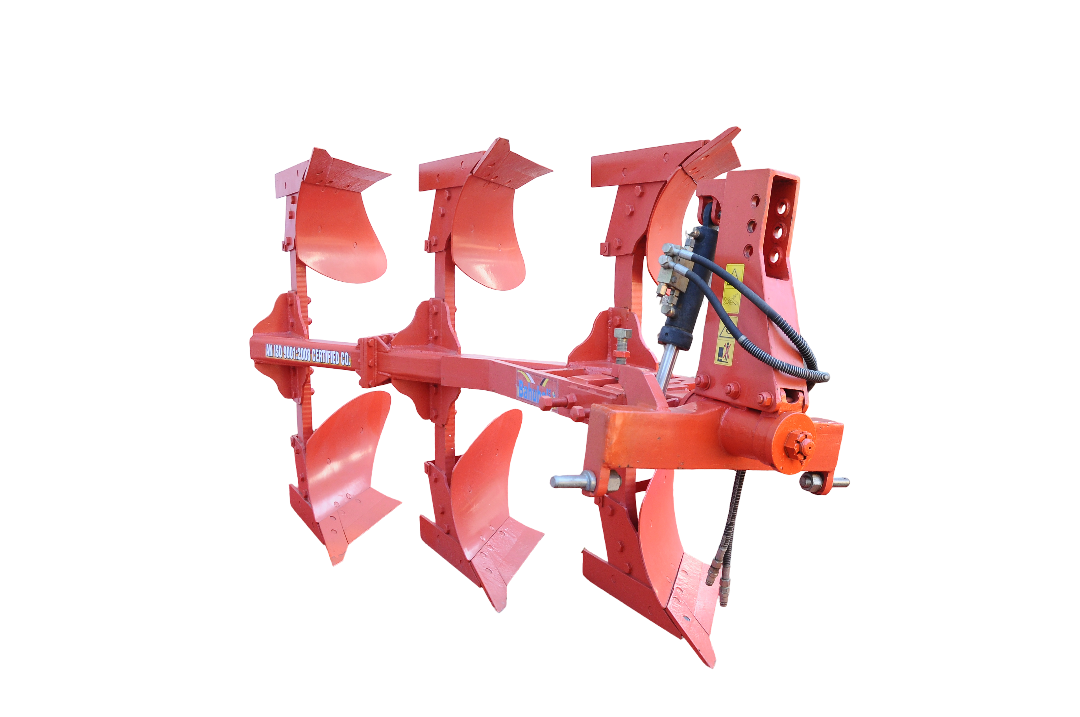

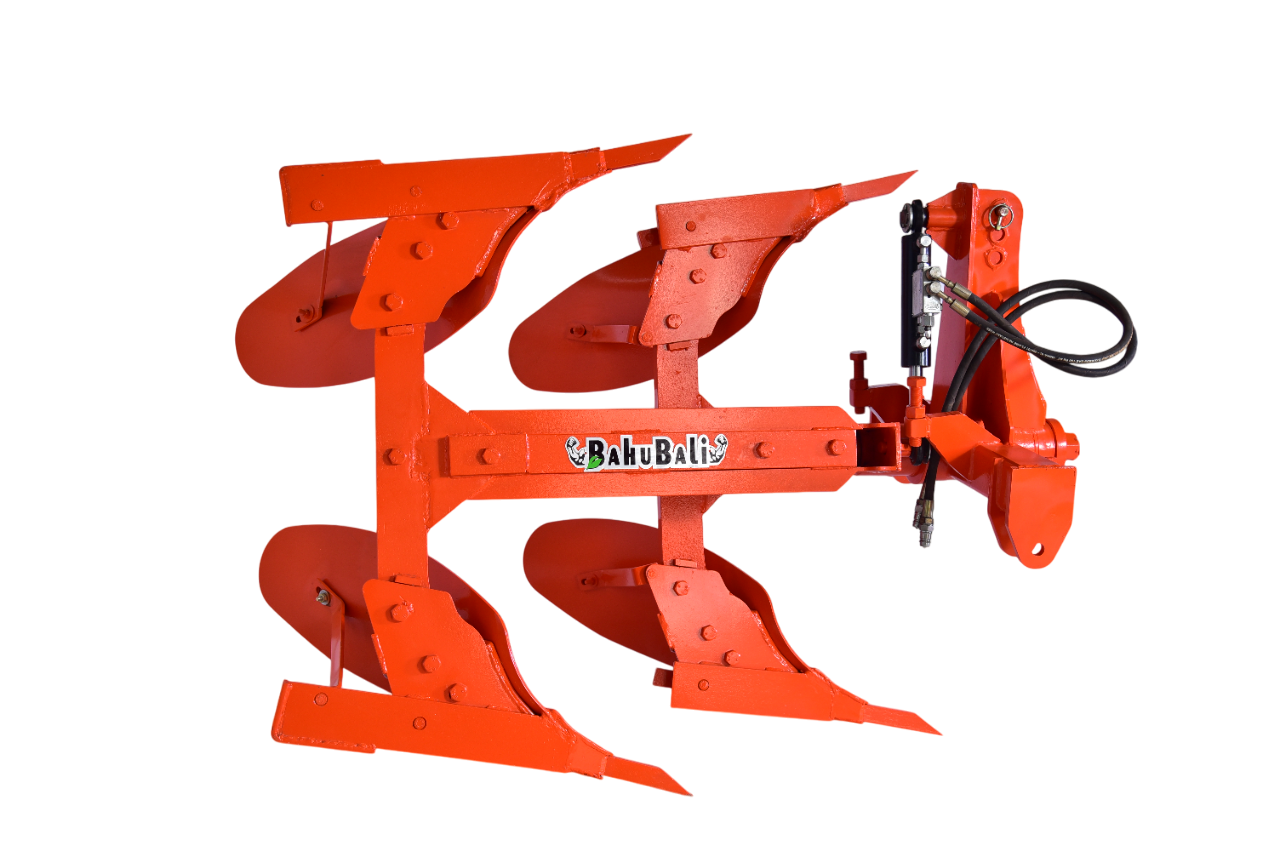

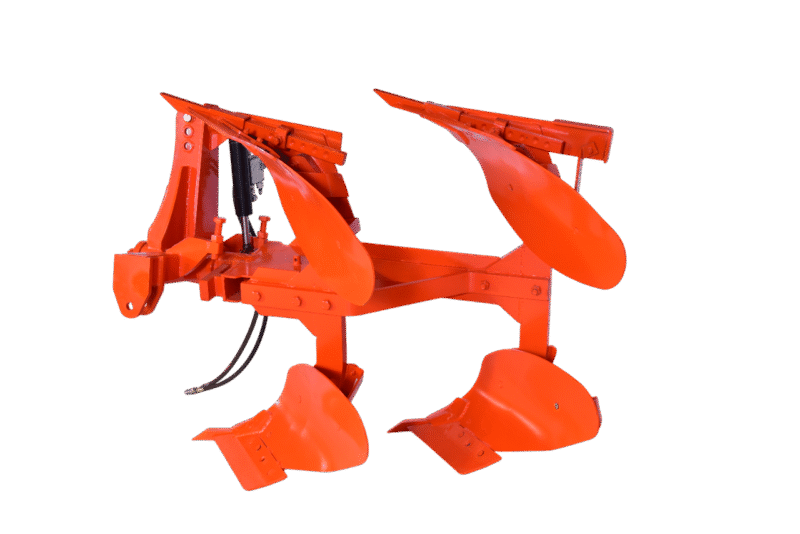

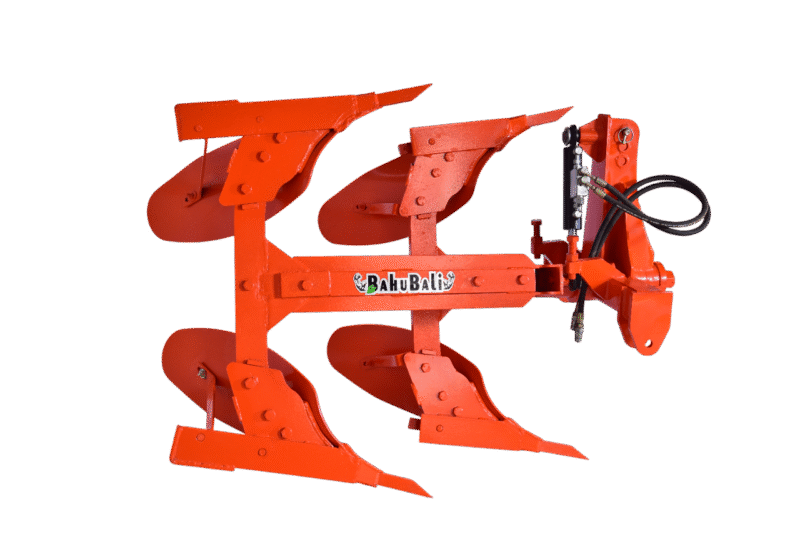

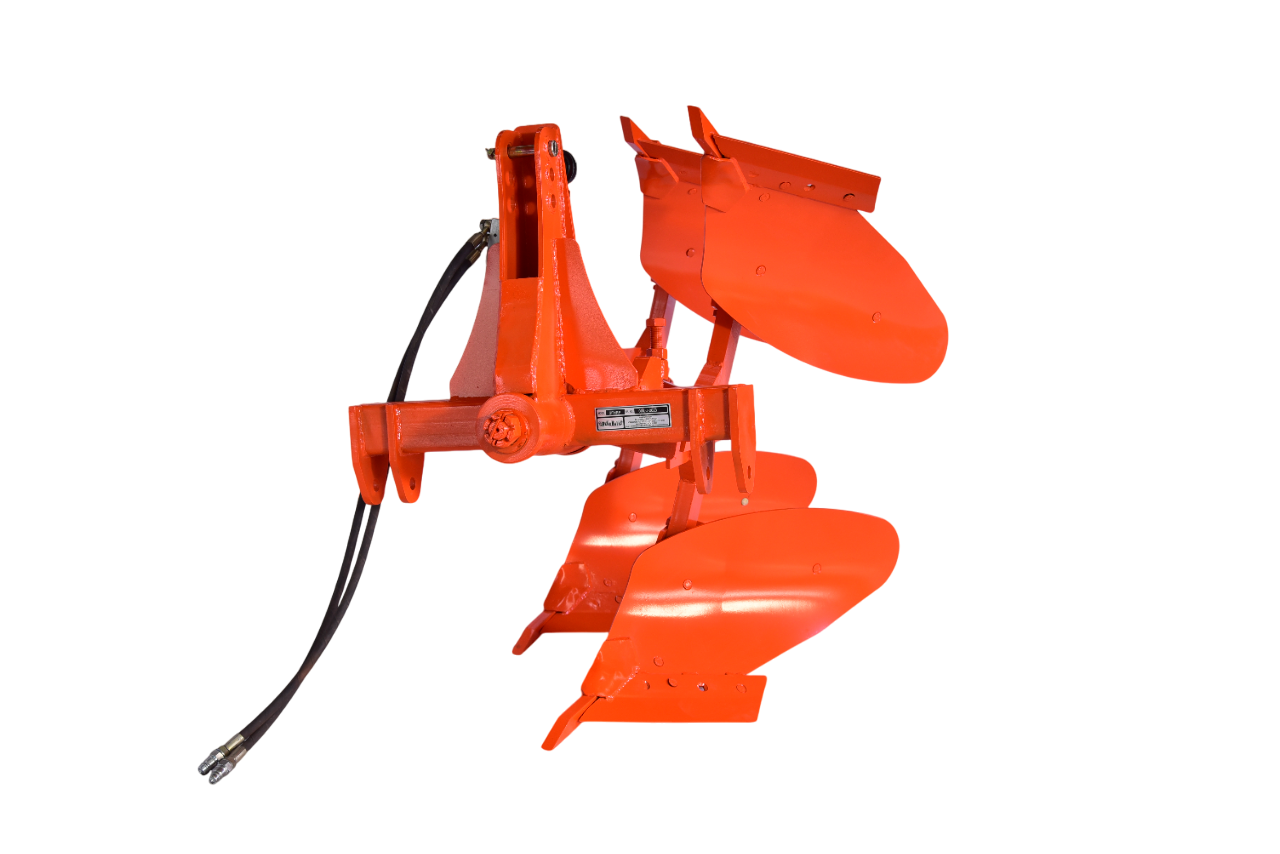

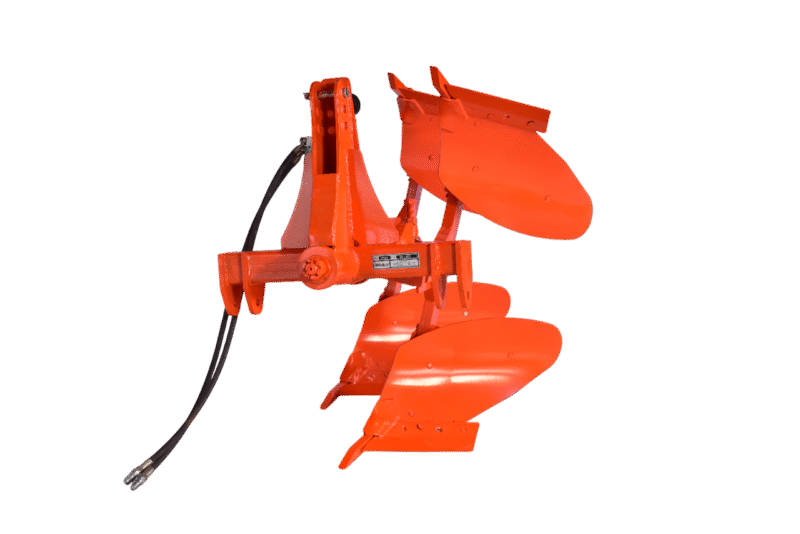

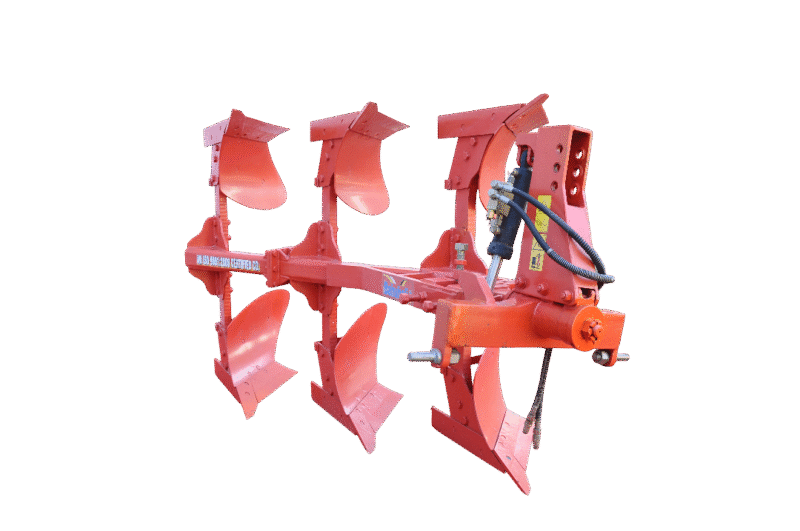

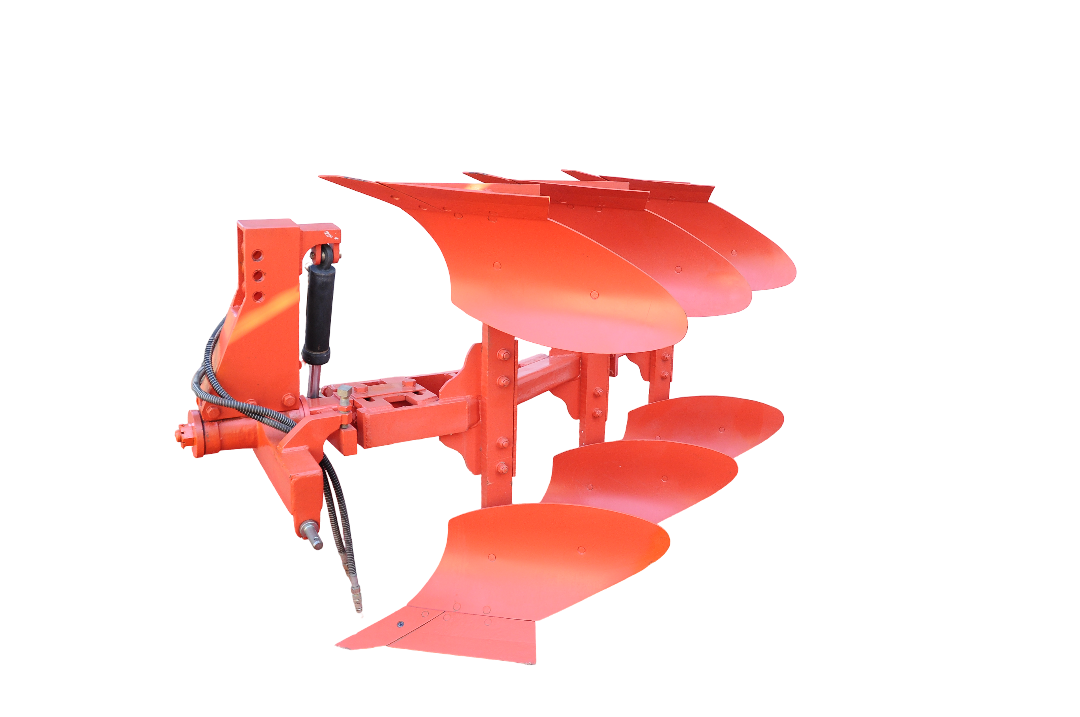

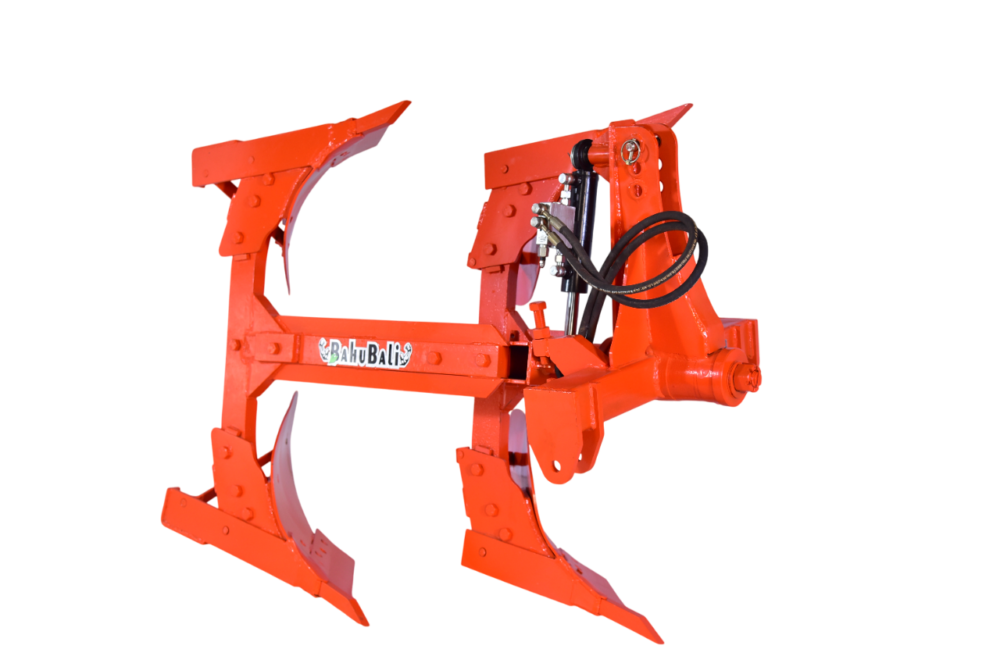

Hydraulic Reversible MB Plough

Reversible MB plough uses for brake & inverse the hard soil where other implements can not penetrate.
It has a pair of 2 sets of MB ploughs which can be changed or revered to work in both directions.
Reversing of the furrow easily done by hydraulic actuation mechanism.
Since two furrows are used it reduces ploughing time.
It performs the function of deep opening and loosing of soil.
It lifts the soil-clod and throws it on the soil surface breaking the soil-clod into smaller particle size.
Easy connectivity to tractor hydraulic control valve & easy to mount on tractor three-point hitch system.

Description

Specification

Model	2FRPH-45	2FRPH-50	3FRPH-60
Number of Furrow (One Side)	2 Bottom		3 Bottom
Size of Board in inch	10, 12	14,16
Complete width of Cut in inch	24		36
Depth of Cut (Inch)	6-12
Size of frame	Channel 75 X 40 mm
Material of Shear Bar & land slide	EN 45
Over All Length x Width x Height in mm	1750 x 940 x 1230		2030x1220x1270
Material of Shear Point	EN 8
Actuation of change of Board	Hydraulic
Weight (Approx.) in Kgs	285	315	550
Suitable HP Range	45 – 55	55 – 60	60 – 70
