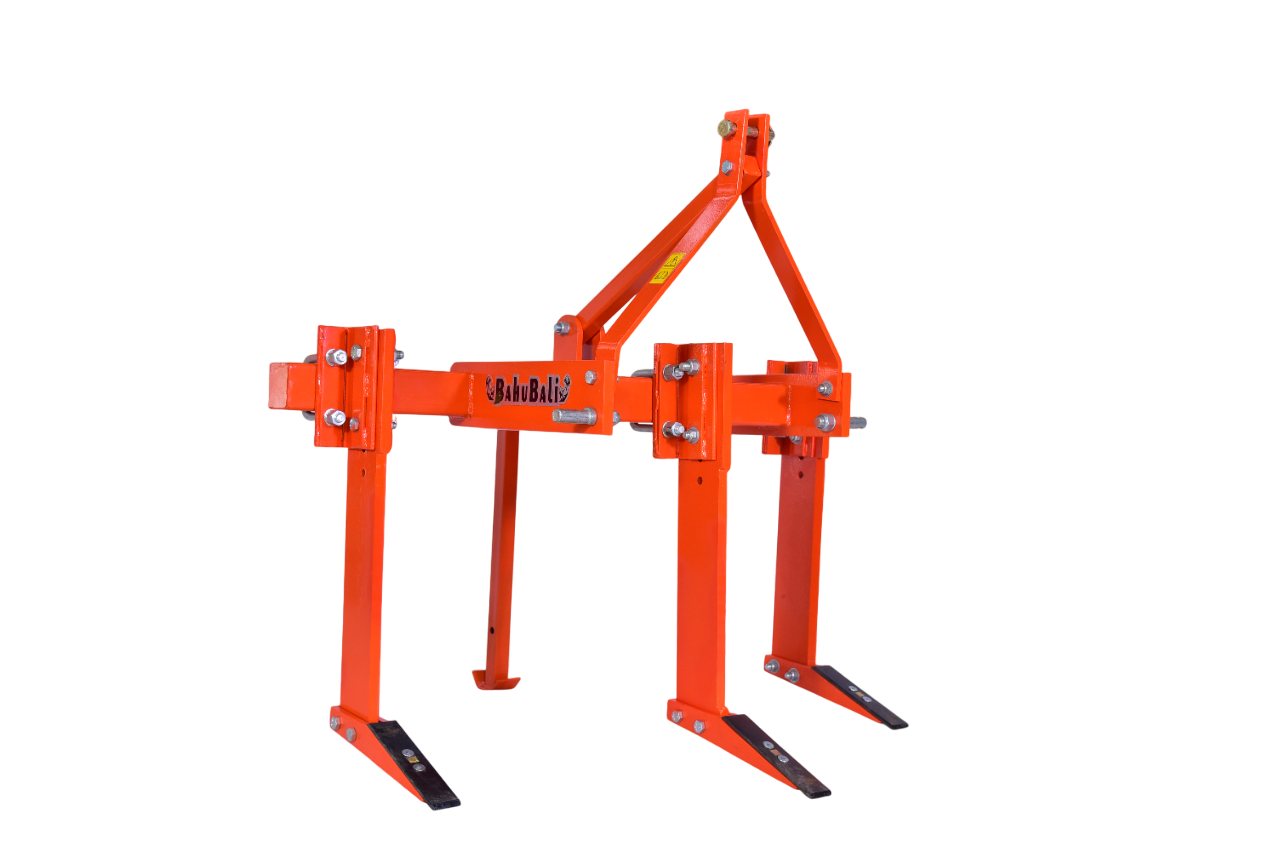

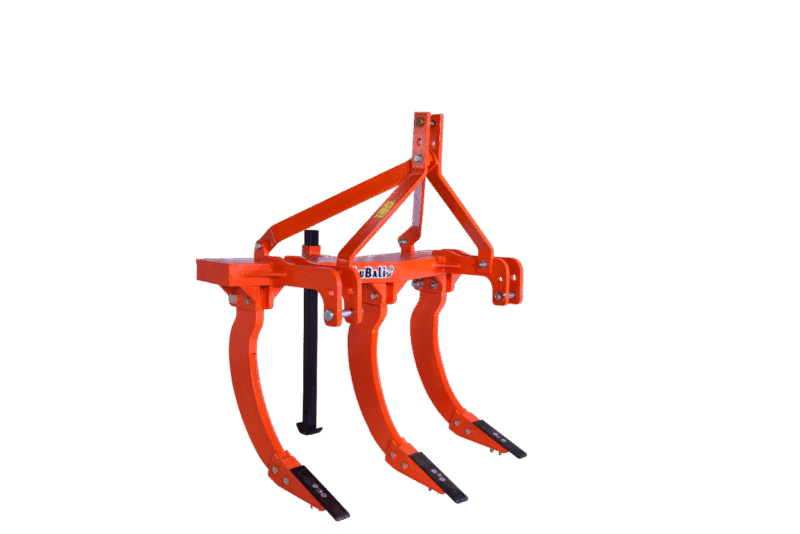

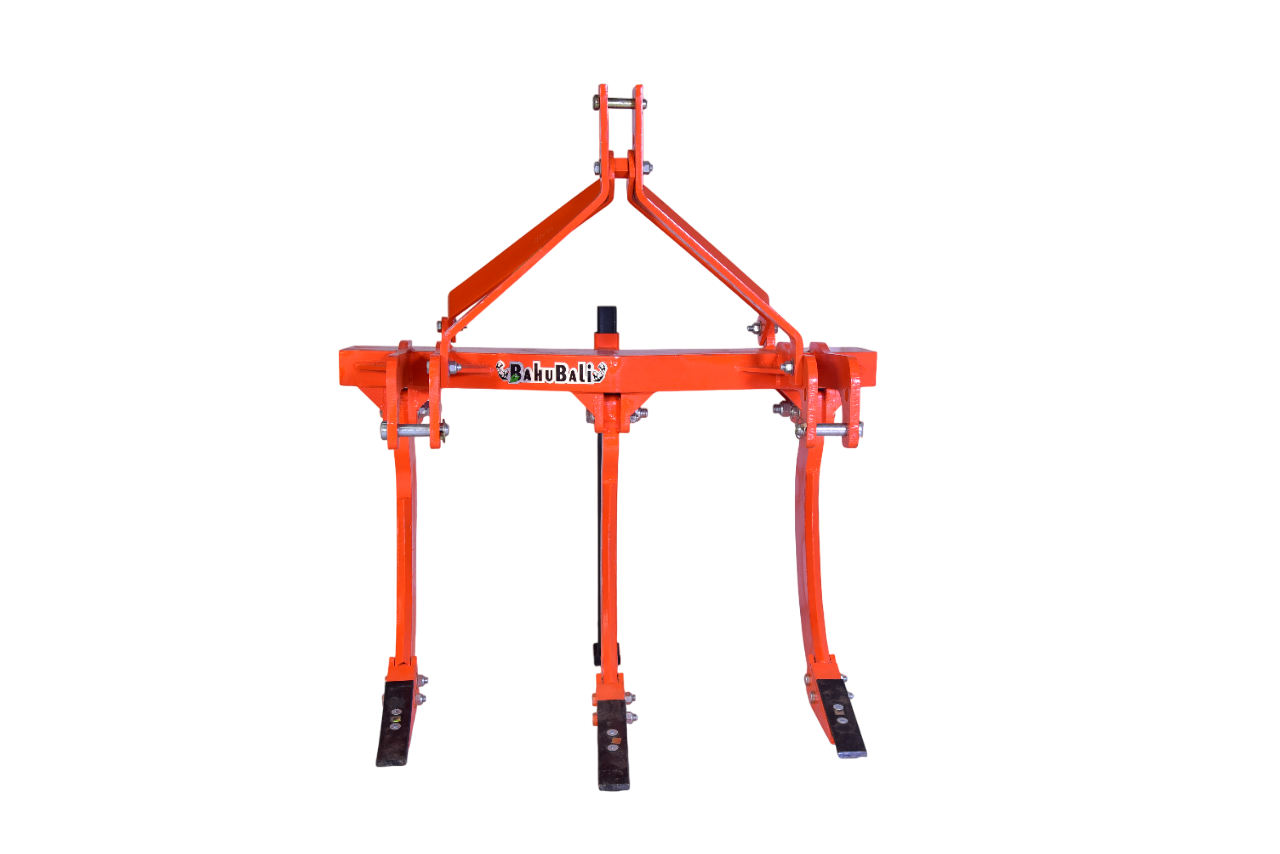

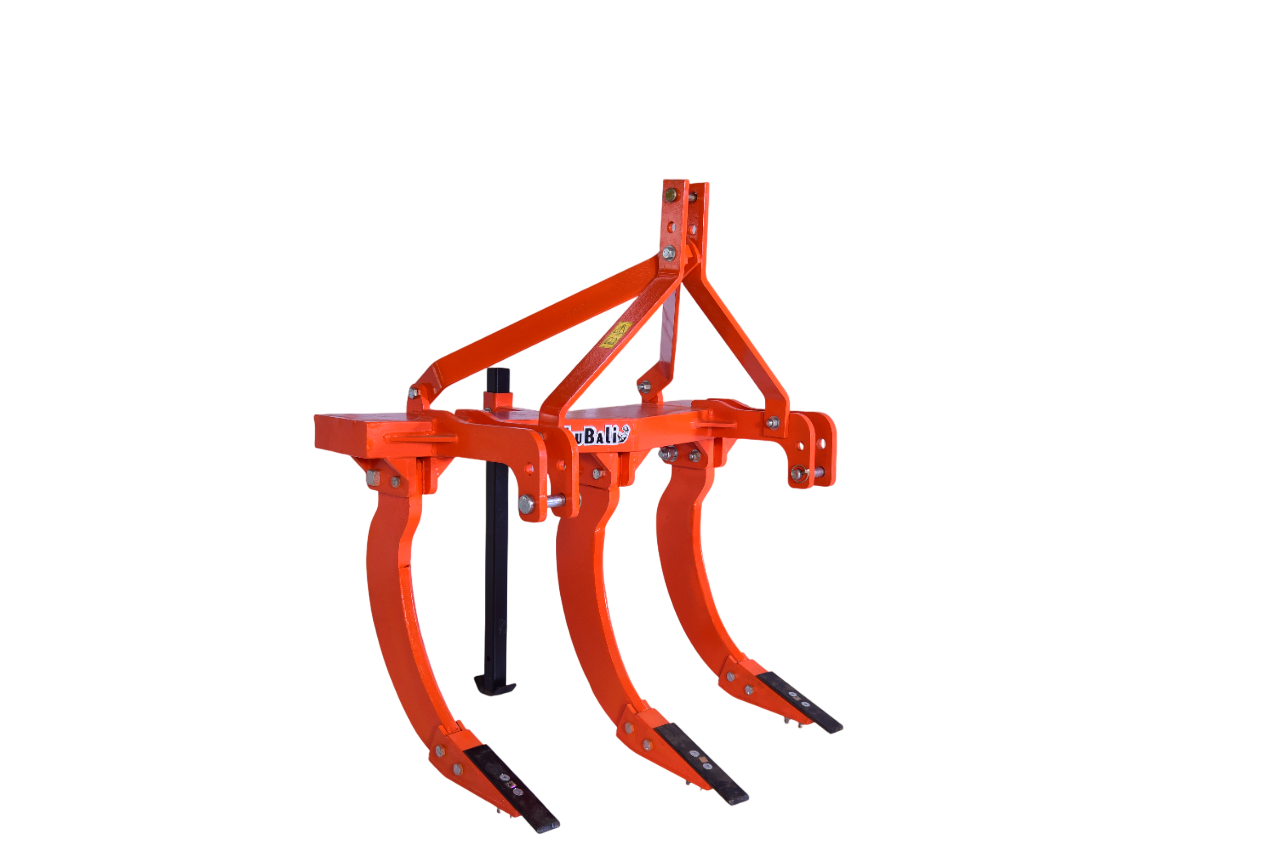

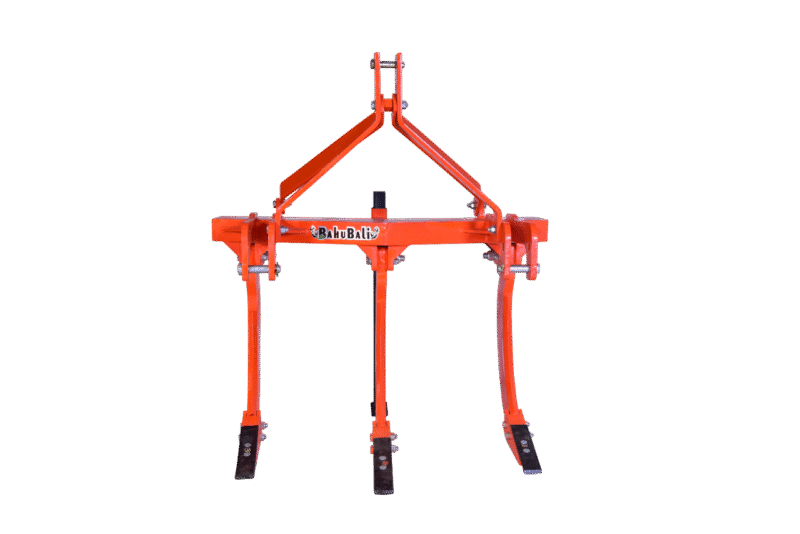

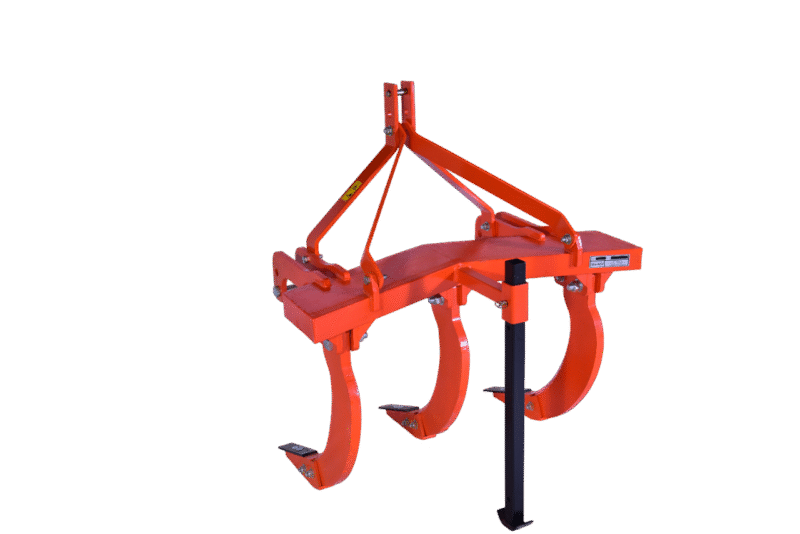

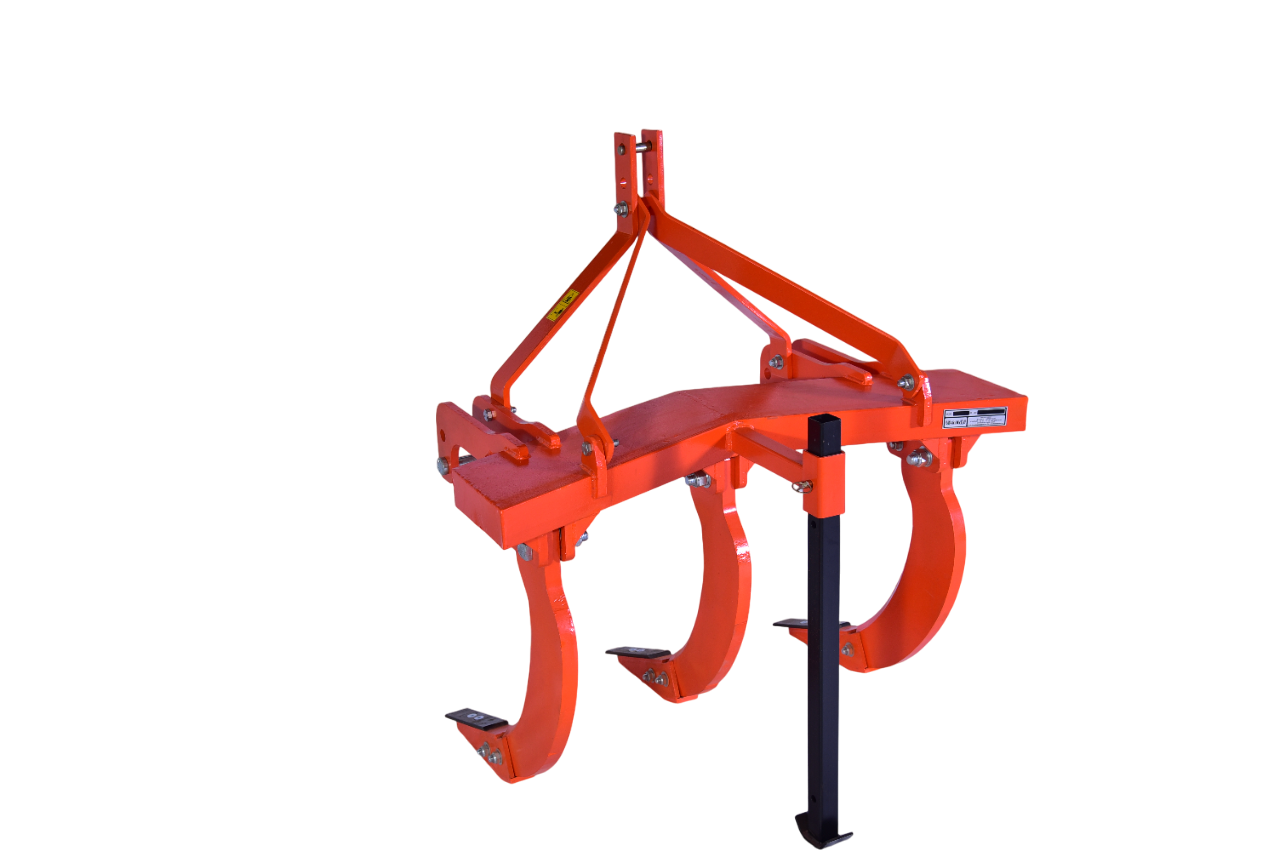

Sub Soiler-C Type

Sub-soiler is primary tillage deep plough working up to 55 cm depth approx.
To ensure development of crop root system of proper depth and environment.
It is an inexpensive implement and it provided a simple and economical way to obtain boosting crop yield.
Depth can be adjusted by leg hole & top links .
Shear bolt protection available in all sub soiler.
Adjustable width of ploughing available for sub-soiler.

Description

MODEL	SS-1	SS-2	SS-3
Number Of Tynes	1	2	3
Main Frame Size mm	Rec. box Frame
Type Mounting	Three Point Hitch Linkage (Cat II)
Overall length, mm	692	1200	1200
Overall Width, mm	800	800	1500
height,(mm)	1445
Weight,(Kg)	105	395	550
Recommended Tractor Power (HP)	45-55	65-75	90-115
Working Depth range (mm) (Depends On soil moisture and field condition)	500
Tyne Size mm / Shovel Material	150 x 25 / EN8
