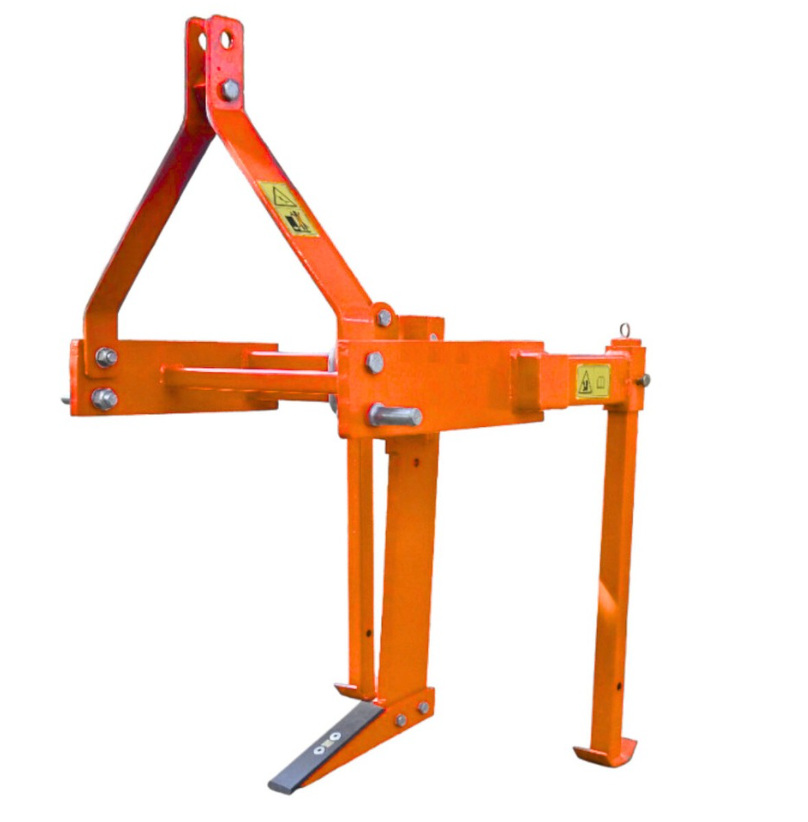

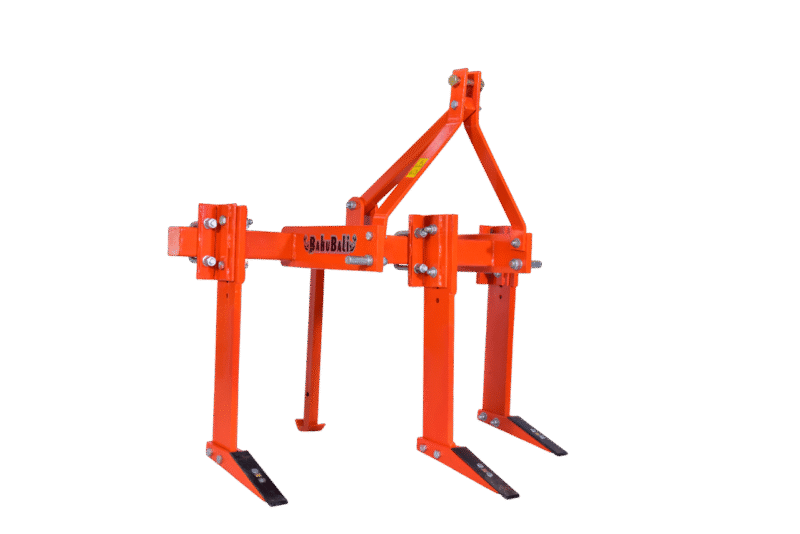

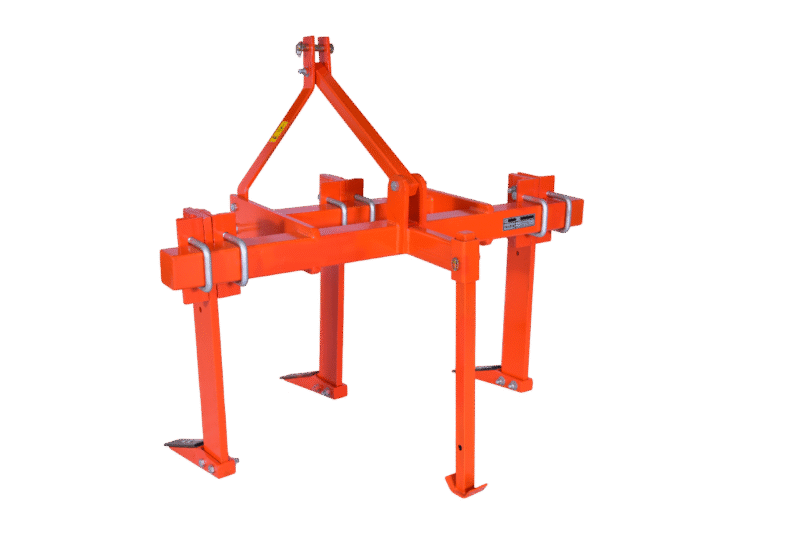

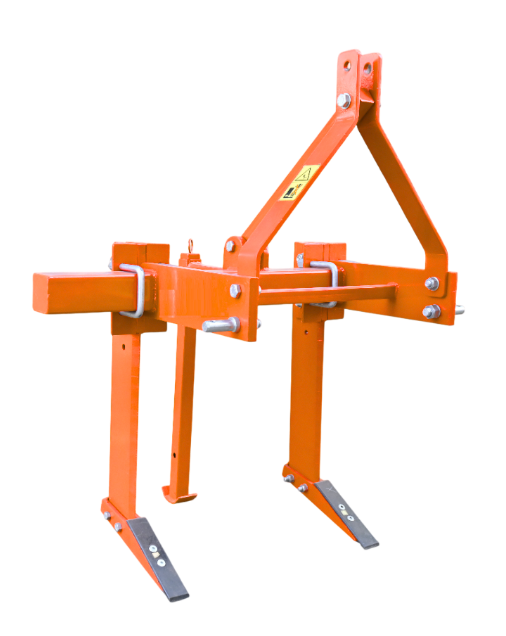

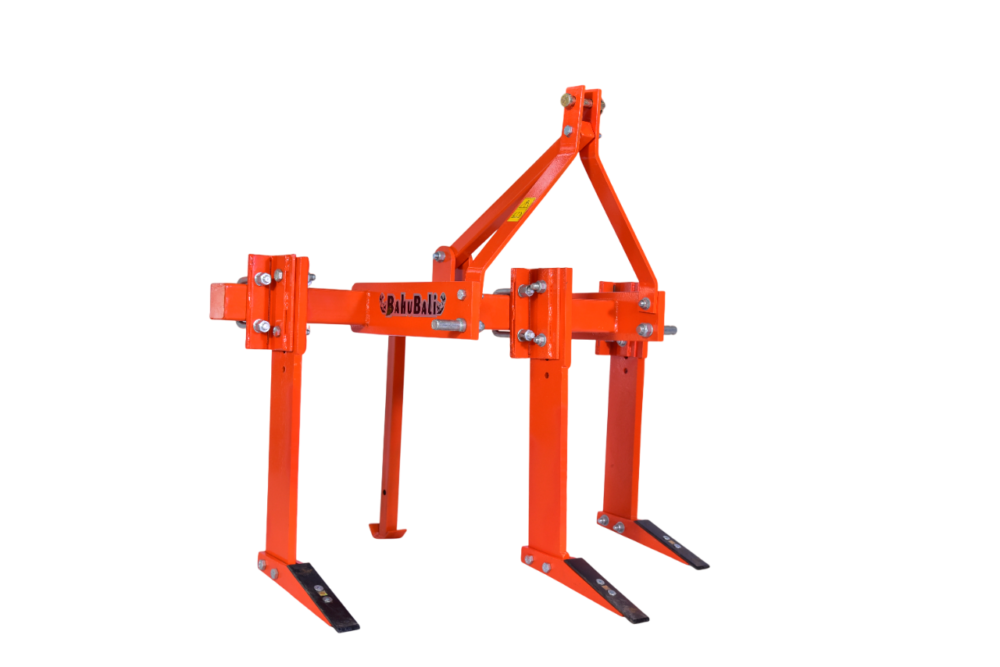

Sub Soiler

Sub-soiler is primary tillage deep plough working up to 55 cm depth approx.
To ensure development of crop root system of proper depth and environment.
The subsoiler increase natural fertility of soil as deep tillage provides enough circulation of air , moisture and sunlight into soil.
It is an inexpensive implement and it provided a simple and economical way to obtain boosting crop yield.
Depth can be adjusted by leg hole & top links .
Shear bolt protection available in all sub soiler.
Adjustable width of ploughing available for sub-soiler.

Description

Specification

MODEL	SS-1	SS-2	SS-3
Number Of Tynes	1	2	3
Main Frame Size mm	BOX Frame 100×100
Type Mounting	Three Point Hitch Linkage (Cat II)
Overall length, mm	860	860	1420
Overall Width, mm	850	1340	1030
Height,(mm)	1470		1430
Weight,(Kg)	165	225	260
Recommended Tractor Power (HP)	45-55	55-65	65-80
Working Depth range (mm) (Depends On soil moisture and field condition)	400
Tyne Size mm / Shovel Material	150 x 25 / EN8
