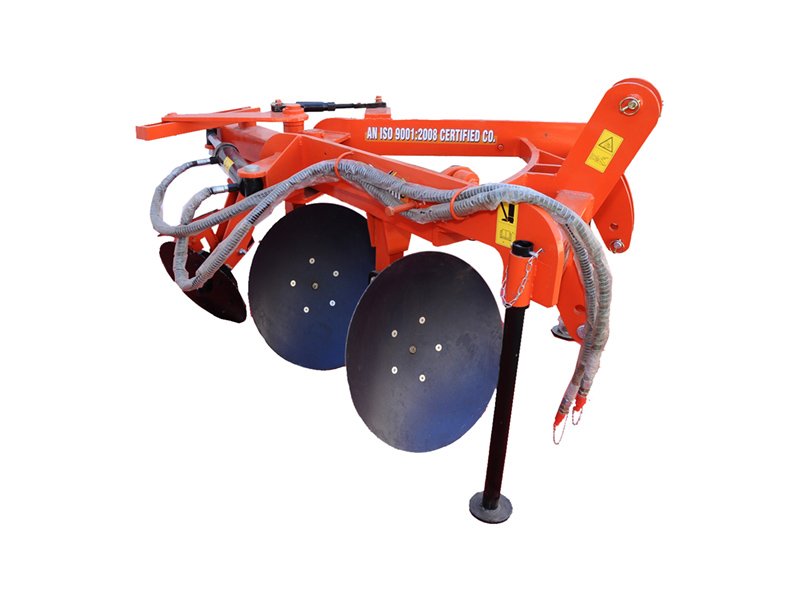

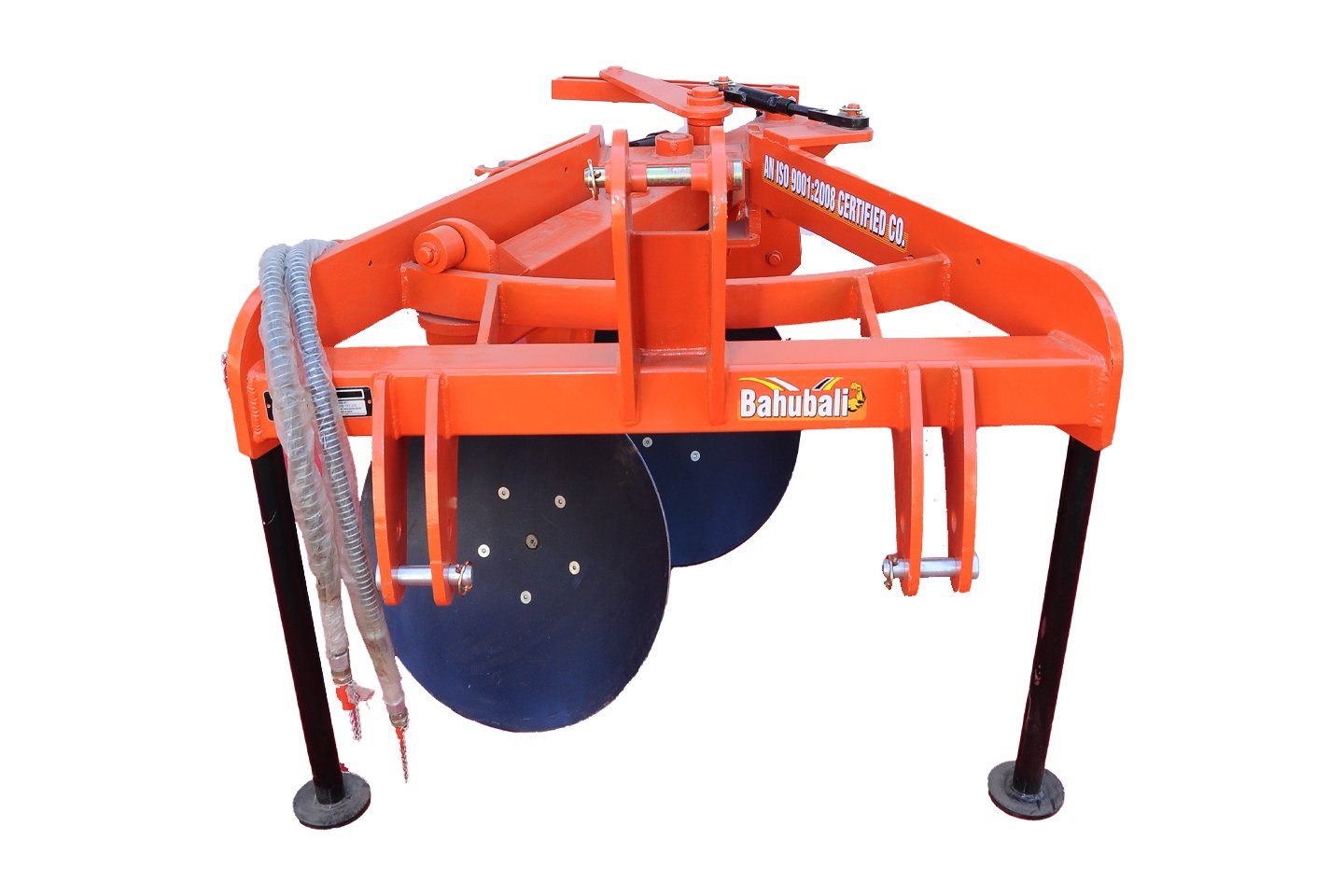

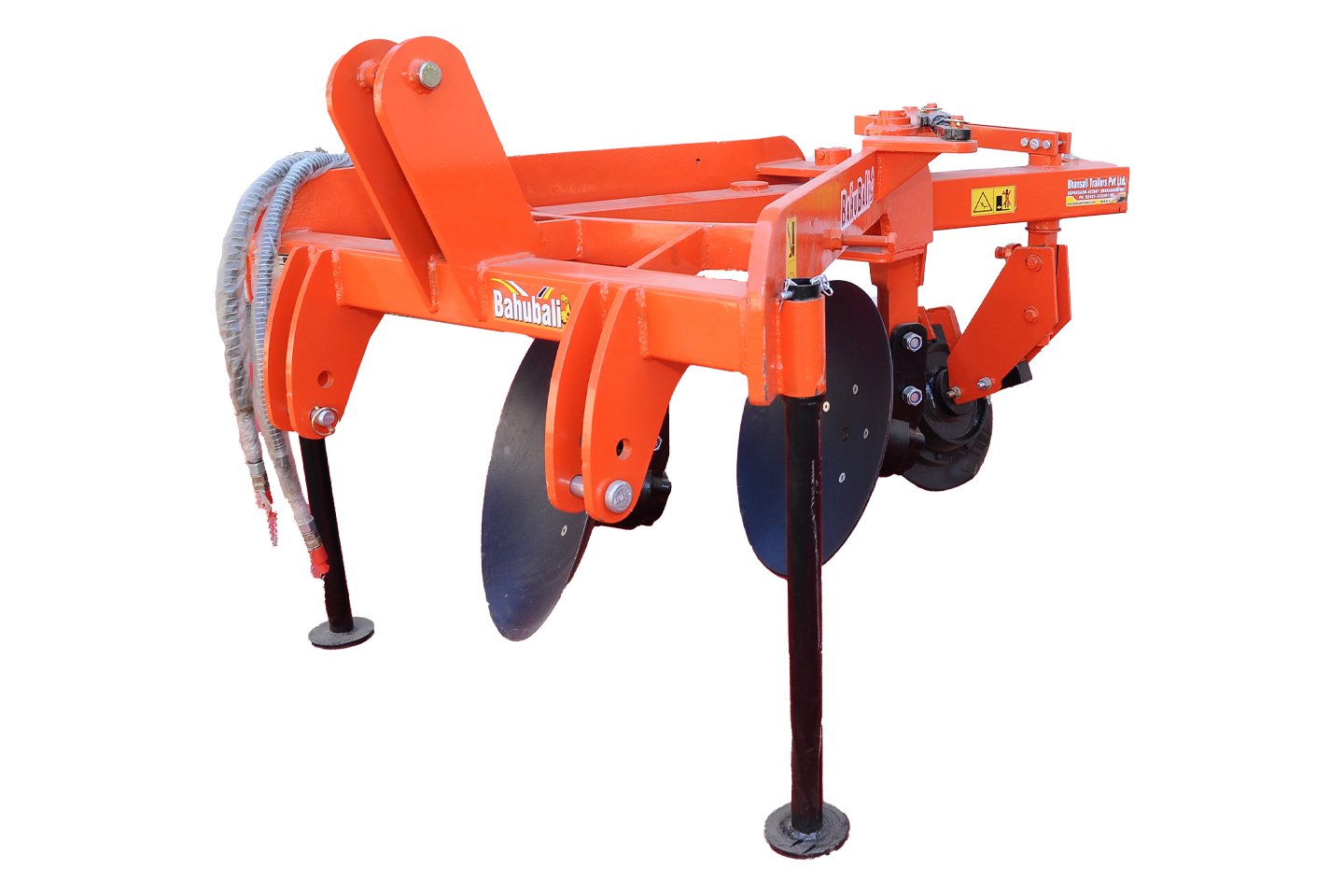

Hydraulic Reversible Disc Plough

This Hydraulic Reversible disc plough is the most suitable and versatile to work on slopes because it is not necessary to open or close plowing frames, providing high ploughing quality and performance, which can also be used for the construction of contour lines.
It has multiple disc adjustments, such as height, swivel and inclination, ensuring the best adjustment for each soil type Leveling adjustments are simple to perform giving you an even cut at the appropriate depth, thus increasing your productivity in the field.
Leveling adjustments are simple to perform giving you an even cut at the appropriate depth, thus increasing your productivity in the field.
Another feature is the reinforced chassis and the reduced amount of moving parts resulting in lowered maintenance costs.

Description

Specification

DESCRIPTION	2 Disc	3 Disc
Number Of Disc	2	3
Mounting CAT	CAT-ll (Suitable for CAT II Mounting)
Main Frame	Heavy duty Profile Cutting
Size of Disc	660 mm
Type Of Disc/ Material	Boron steel
Colter Wheel (Dia)	20”
Axel Type (Dia) /Material	30 mm / EN 8
Working Width Range (mm Approx.) (Depends On soil moisture and field condition)	600-750	751-840
Working Depth Range (mm Approx.)	150-250
Weight (Kg)	415	525
Spacing Between Disc (mm)	560	560
Suitable HP Range	50-60	60-70
