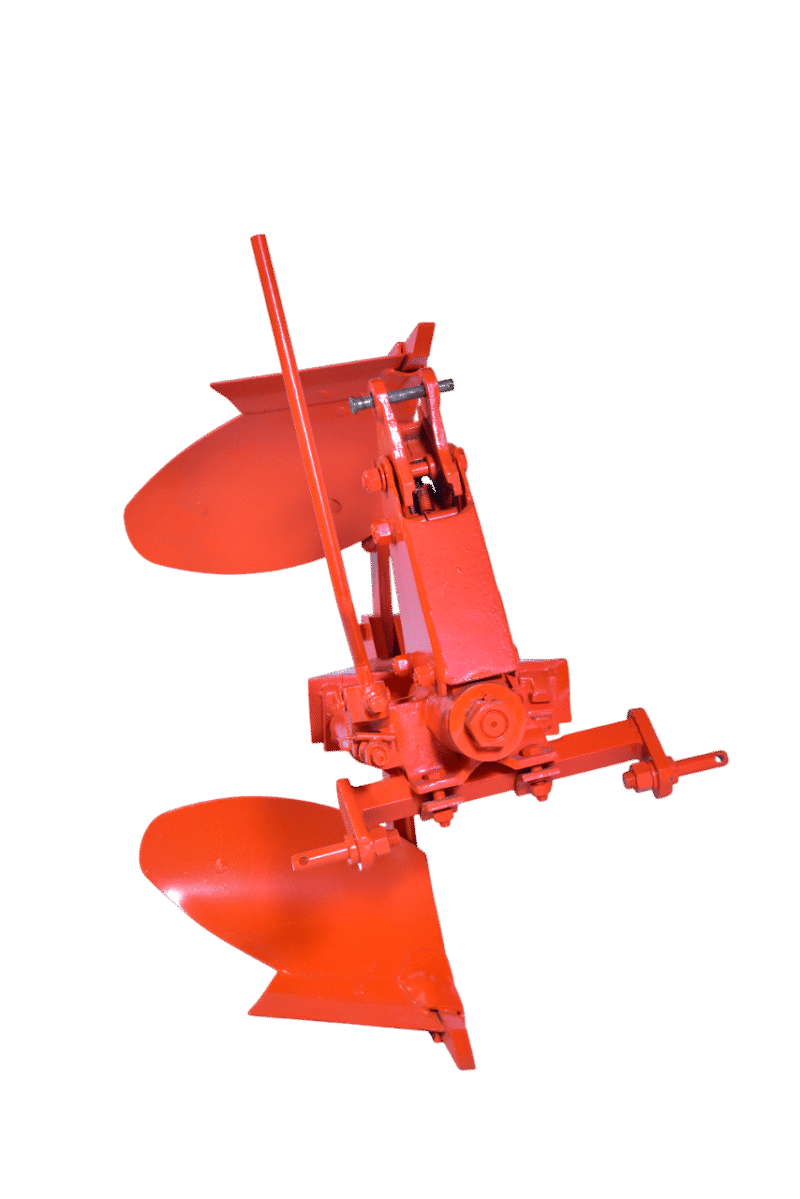

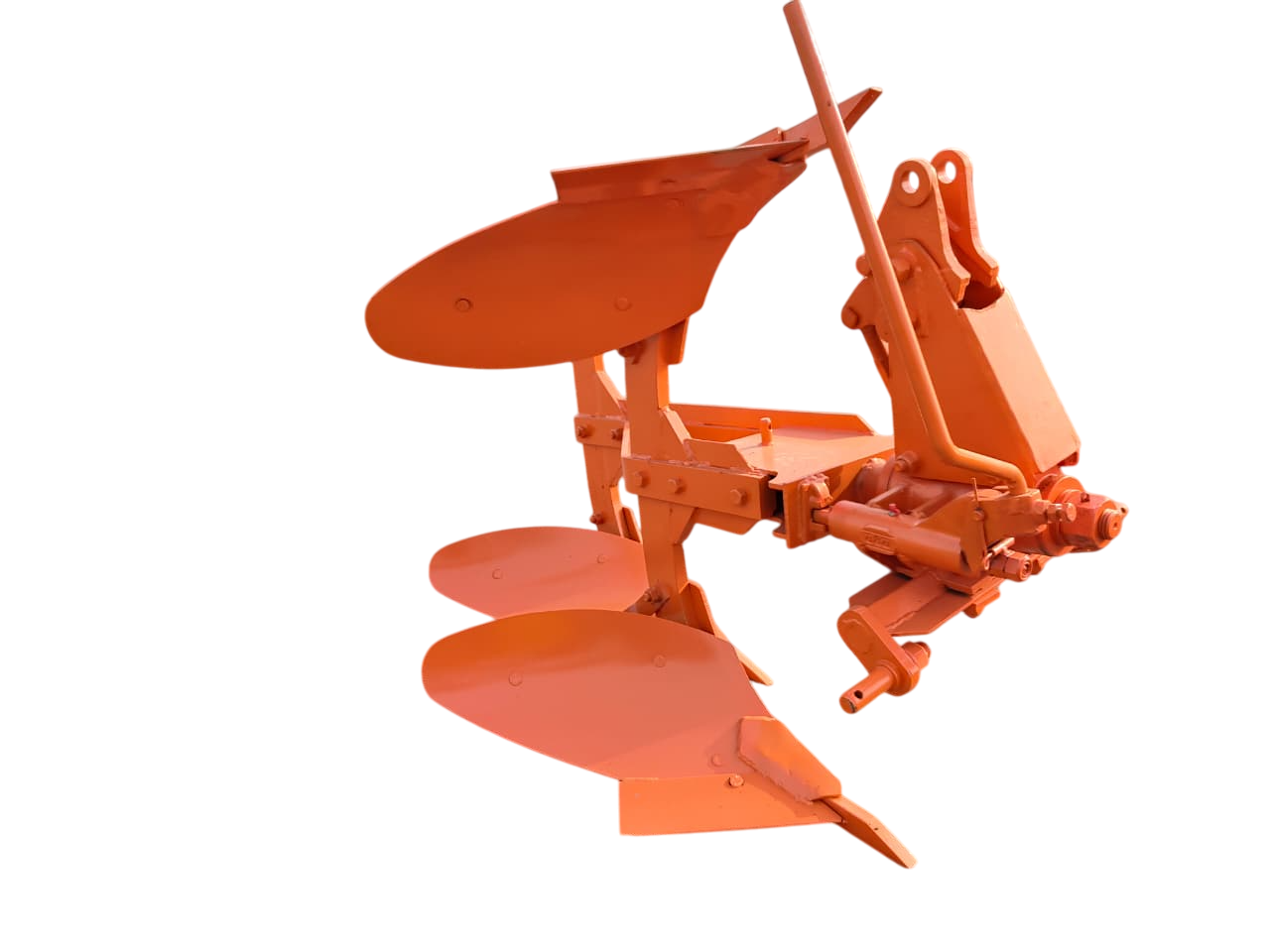

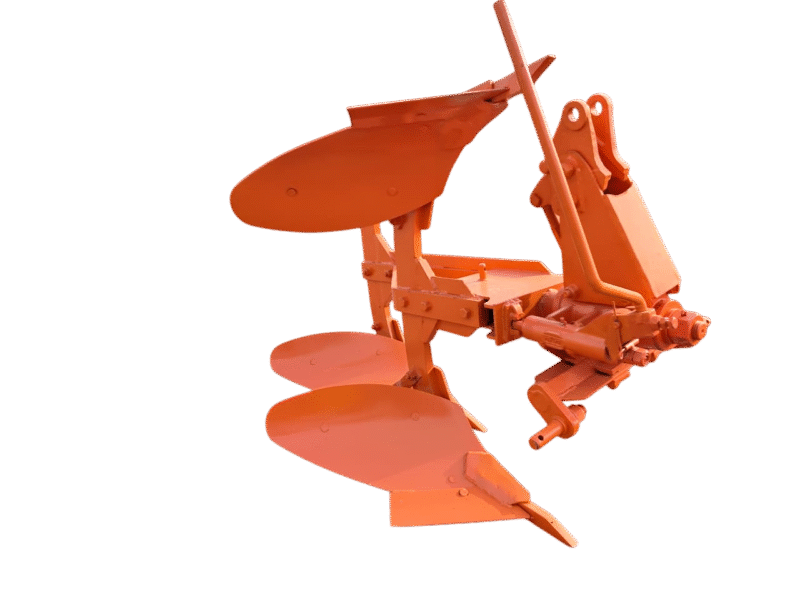

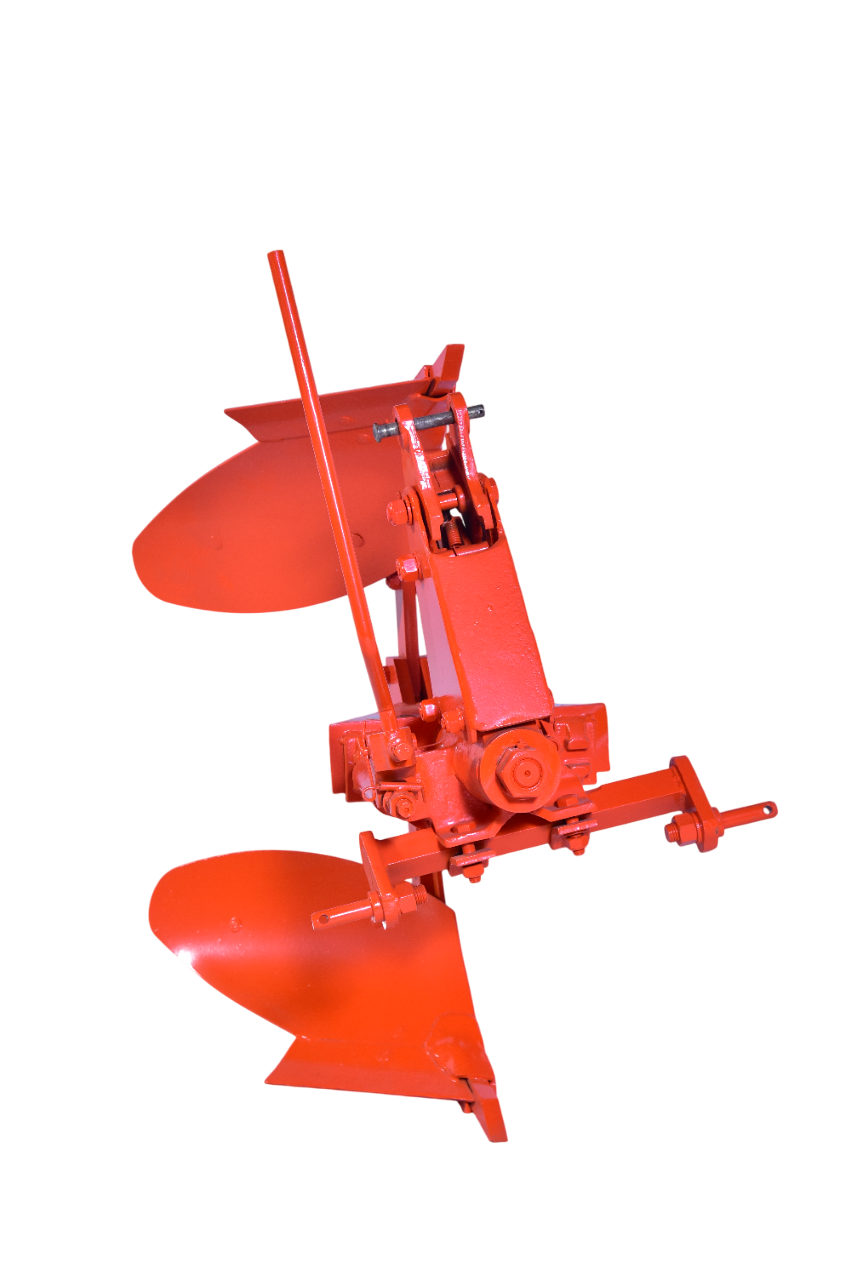

Mannual Reversible MB Plough

Reversible MB Plough is a specially designed agricultural implement used for turning the soil levels up side down, incorporating soil residues and making available more fertile layer for the new crop. It provides deep seed bed preparation with proper aeration and drainage. MB Plough is used as a primary tillage implement for soft and hard soils.
It has a pair of two sets of Mould board ploughs which can be changed or reversed to work in both direction.
Reversing of the Furrow easily done by tilting of a handle bar.
It is easily used for deep-opening and loosening of the soil.
It lifts the soil-cold and throws it on the soil surface breaking the soil-cold into smaller particle size.

Description

Specification

MODEL NUMBER	2FHITPS	2FHITP	3FHITP
Number of Furrow (One Side)	2 Bottom	2 Bottom	3 Bottom (2+1)
Complete width of Cut in (inch)	26	26	42
Depth of Cut (inch)	9/16 inch	9/16 inch	9/16 inch
Size of frame mm	HD Sq. pipe 90 X 90 mm	HD Sq. pipe 90 X 90 mm	HD Sq. pipe 90 X 90 mm
Material of Shear Bar & land slide	Boron Steel	Boron Steel	Boron Steel
Material of Shear plate	Boron Steel	Boron Steel	Boron Steel
Actuation of change of Board	Hydraulic	Hydraulic	Hydraulic
Safety	Shear Bolt	Shear Bolt	Shear Bolt
Weight (Approx.) in Kgs	395	415	550
Suitable HP Range	50-60	50-70	70-90
