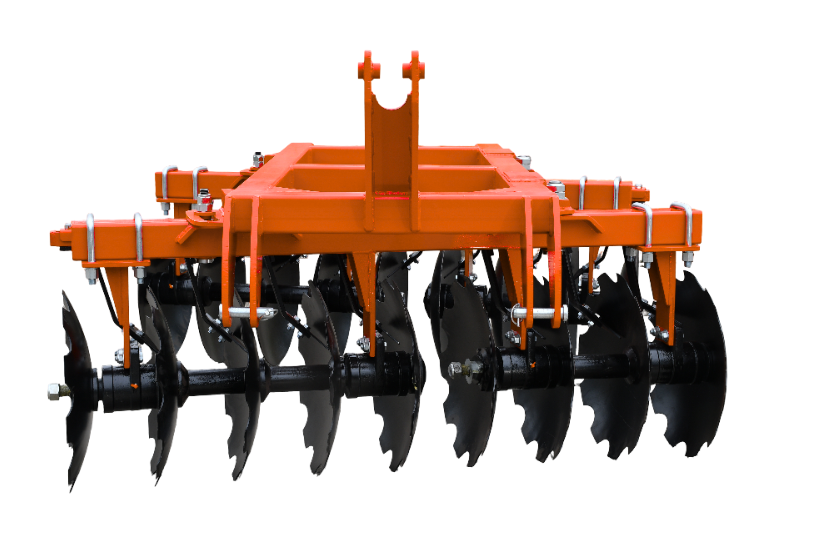

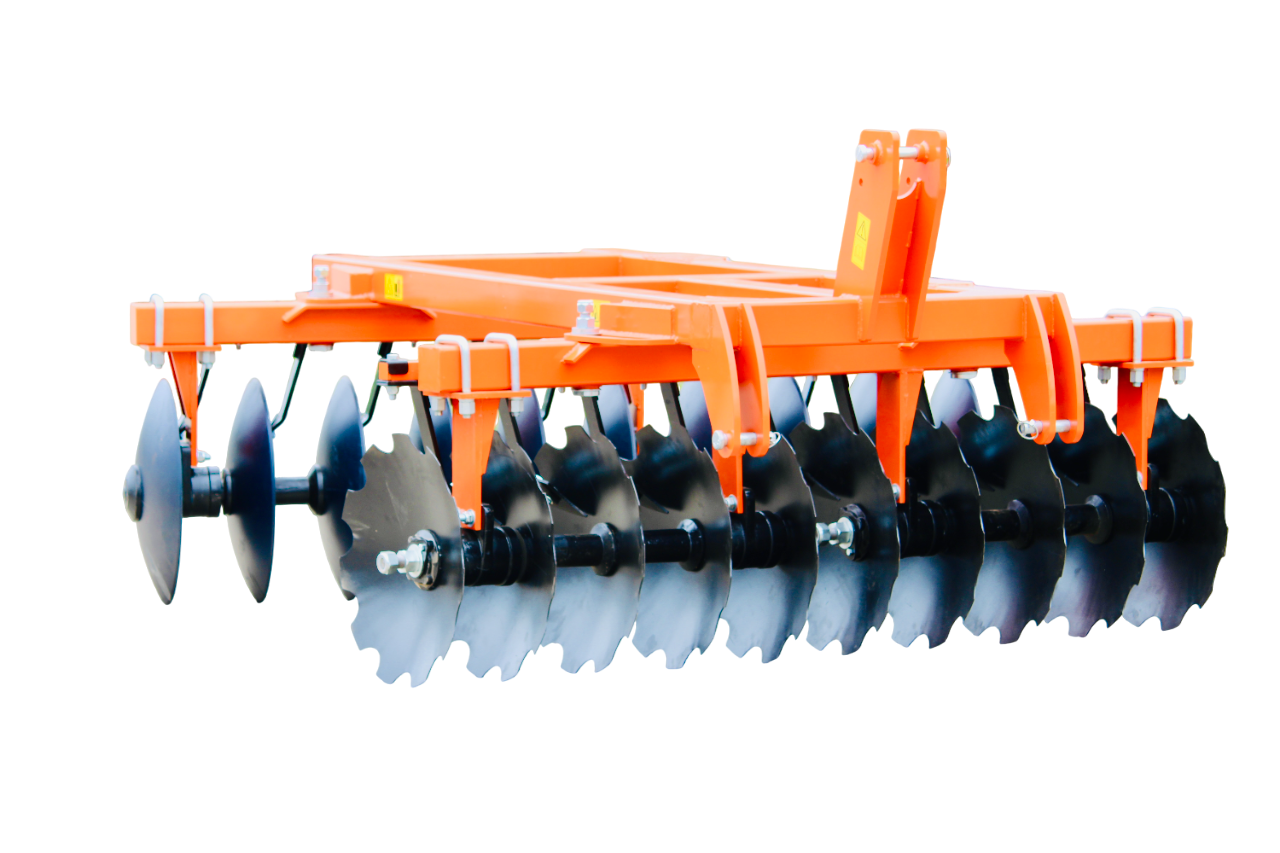

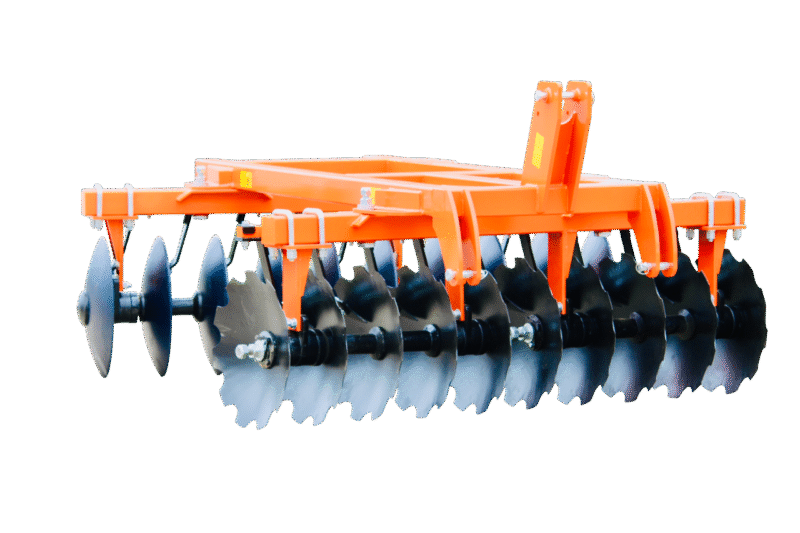

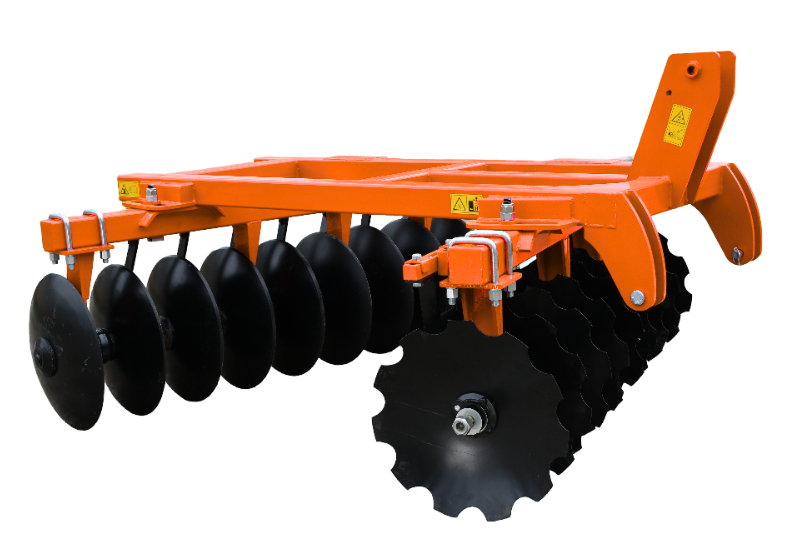

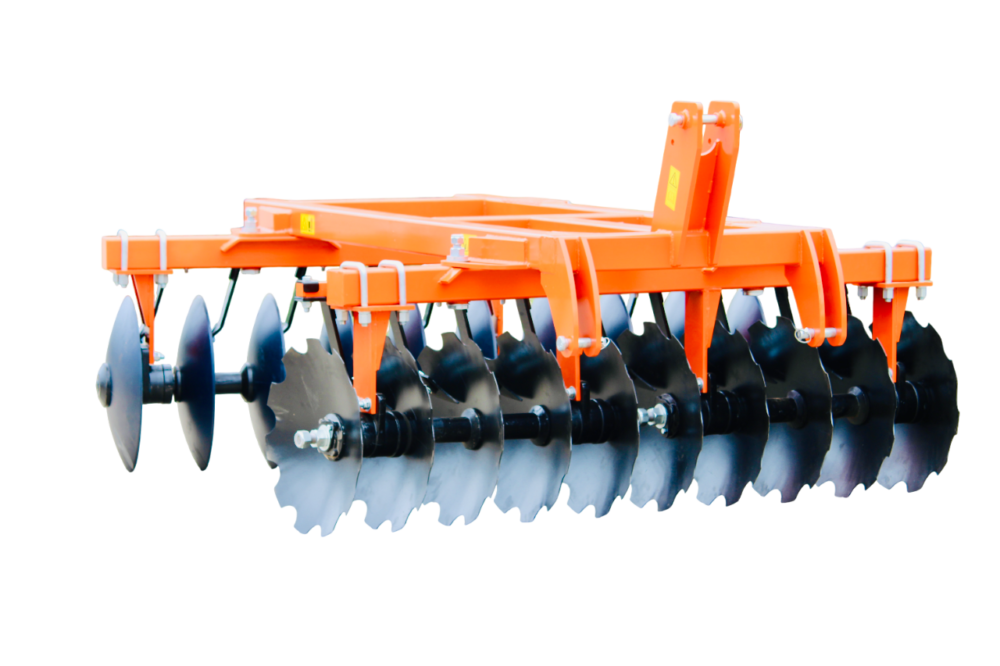

Square Pipe Frame Disc Harrow

Offset Disc Harrow is tractor hydraulic operated implement which trails behind the tractor and effectively breaks up clods with deeper penetration due to its heavy weight and design. Both Disc gangs are offset at an angle to ensure no soil remains uncut and heavy crop residue with organic matter is effectively buried.
In addition the implement being easily attached and transportable in top speeds, little time is lost between the shed and the field.
Due to high quality built up and strong design and maintenance is low.
High Quality Boron steel Discs.
Tillage depth of the harrow is 6 inch and can be adjusted with help of angle adjustment.
High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.

Description

Specification

Model Number	16DHCF	18DHCF	20DHCF	22DHCF	24DHCF
Number Of Disc	16	18	20	22	24
Type of mounting	Three point Hitch Linkage (CAT II)
Disc Dia (mm) (Optional)	560(610 & 660)
Disc Type	Front: Notched, Rear: Plain
Frame (mm)	100 X 100 ( Sq. Pipe Frame)
Disc Spacing (mm)	225
Maximum Depth (mm)	100-150 (Depends on soil moisture and field conditions)
Gang AXEL (mm)	32 mm
Width of Cut (mm) (Adjustable)	1680	1930	2220	2450	2650
Weight (Kg) (560 Disc)	525	560	615	650	710
Bearings Hub	6	8
Suitable HP Range	55 – 60	70 – 75	60 – 70	80 – 90	90 – 110
