Rotavators

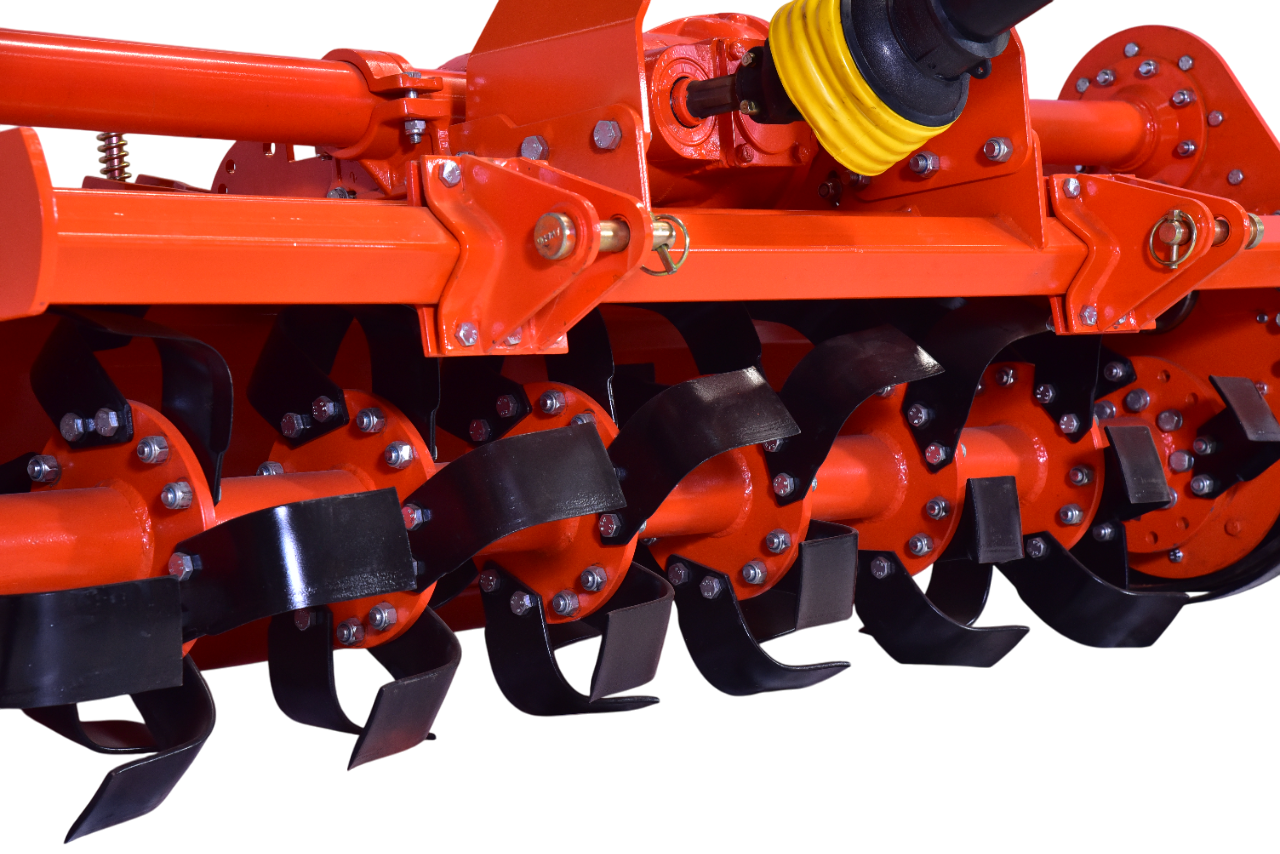

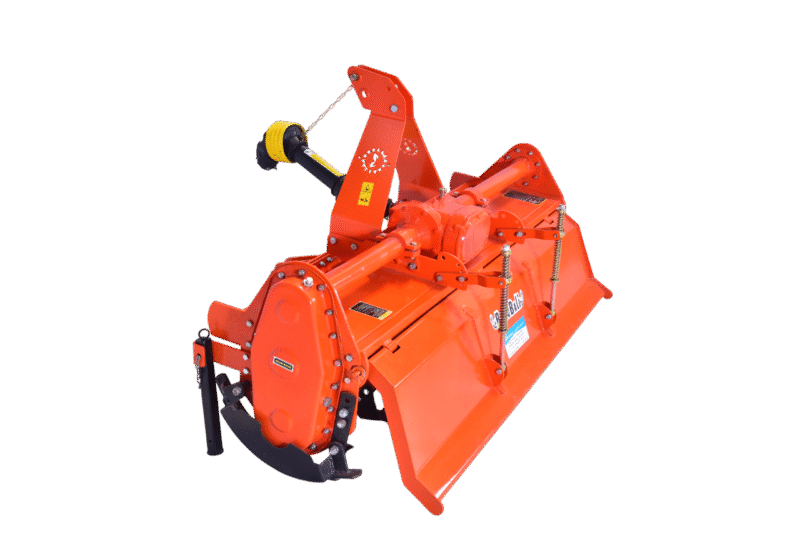

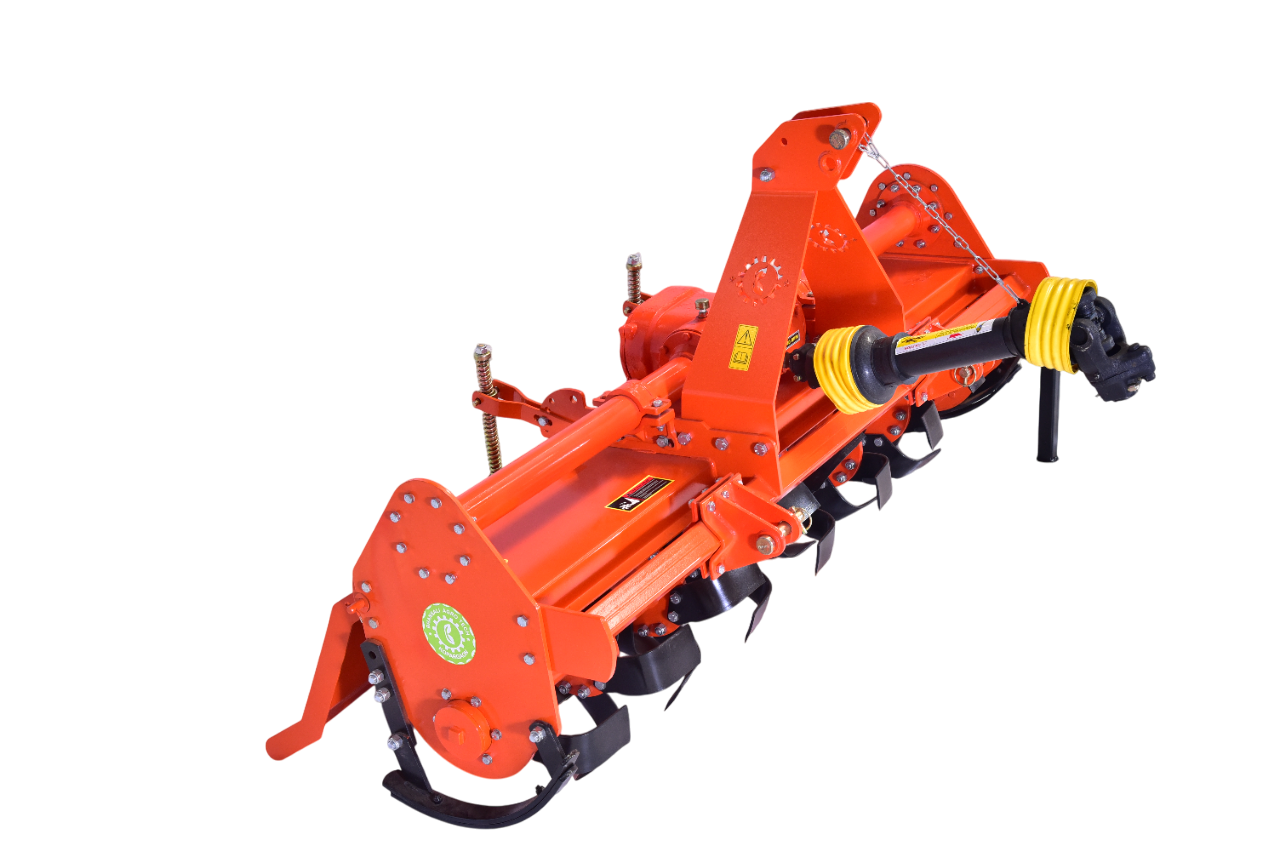

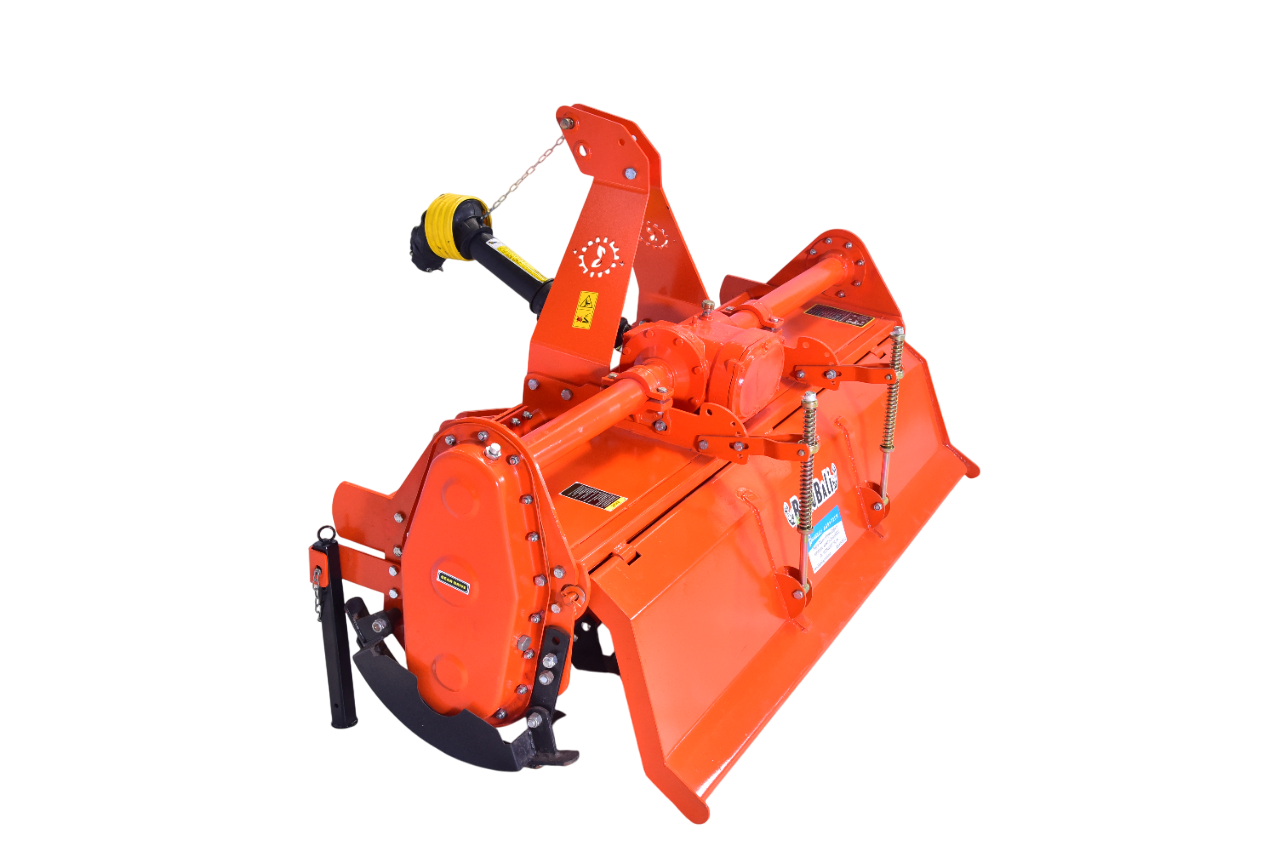

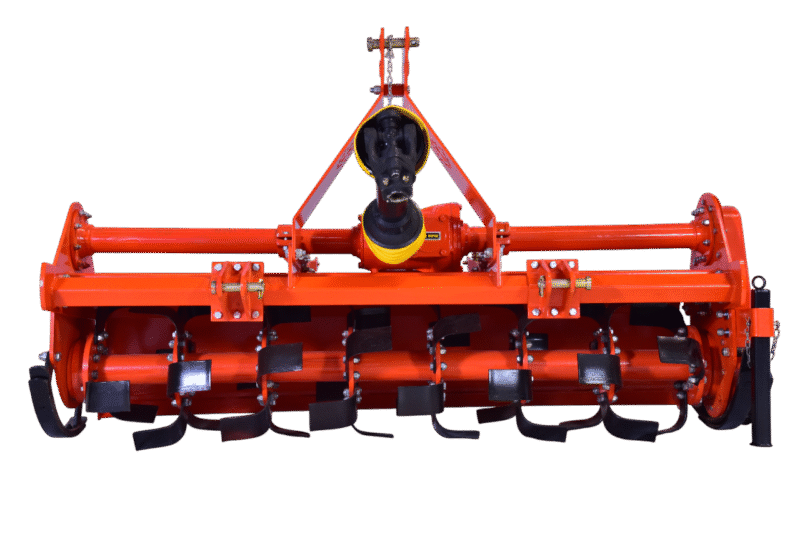

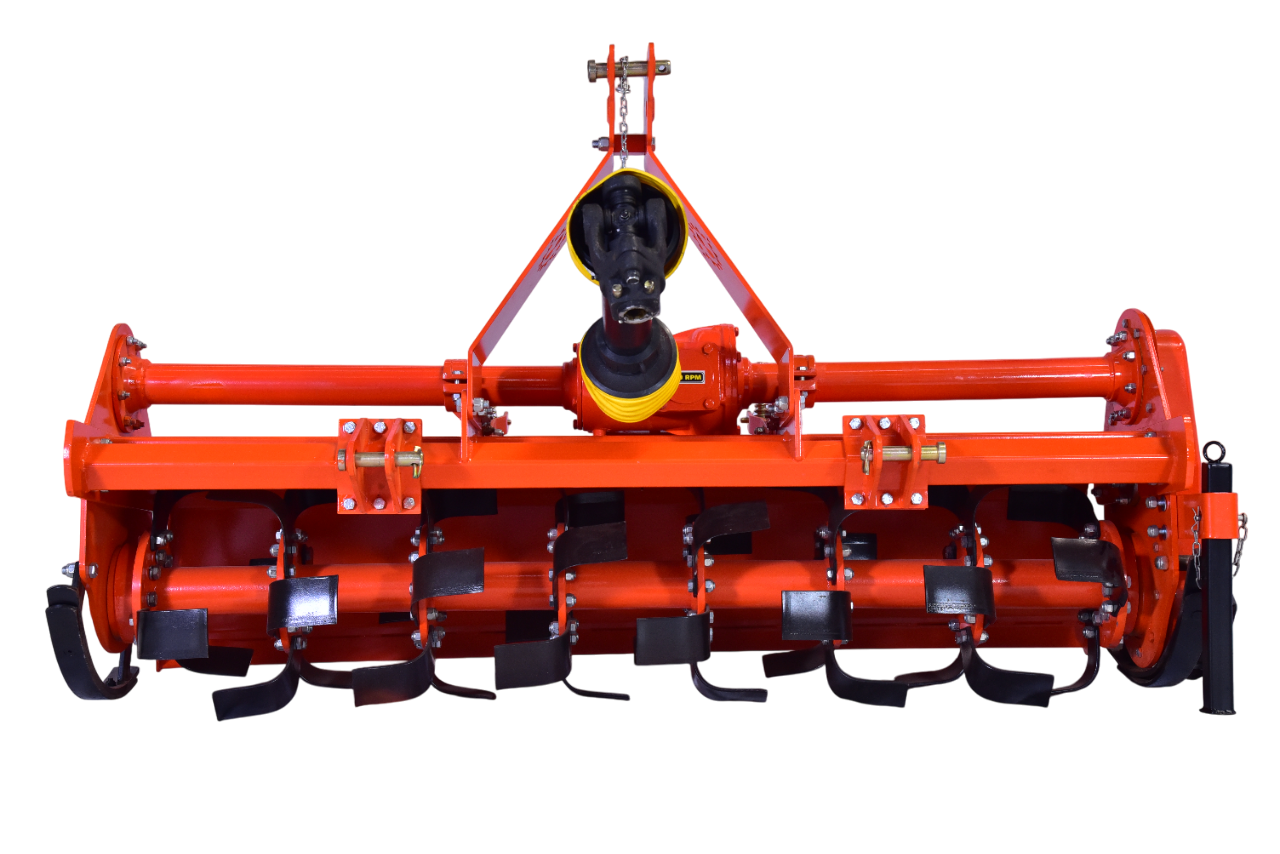

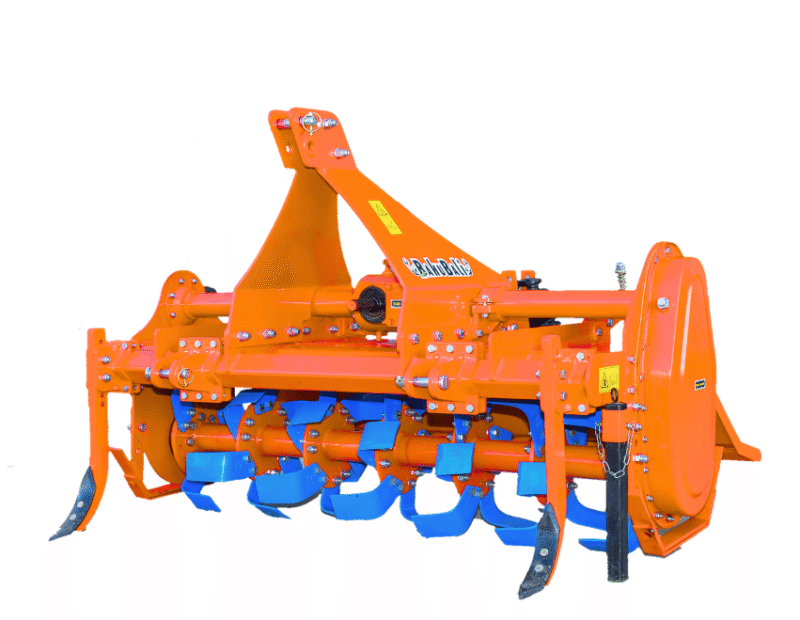

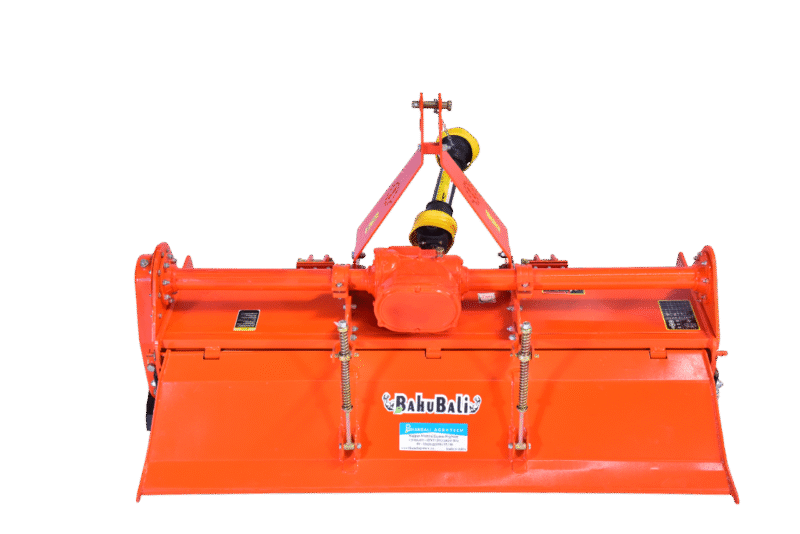

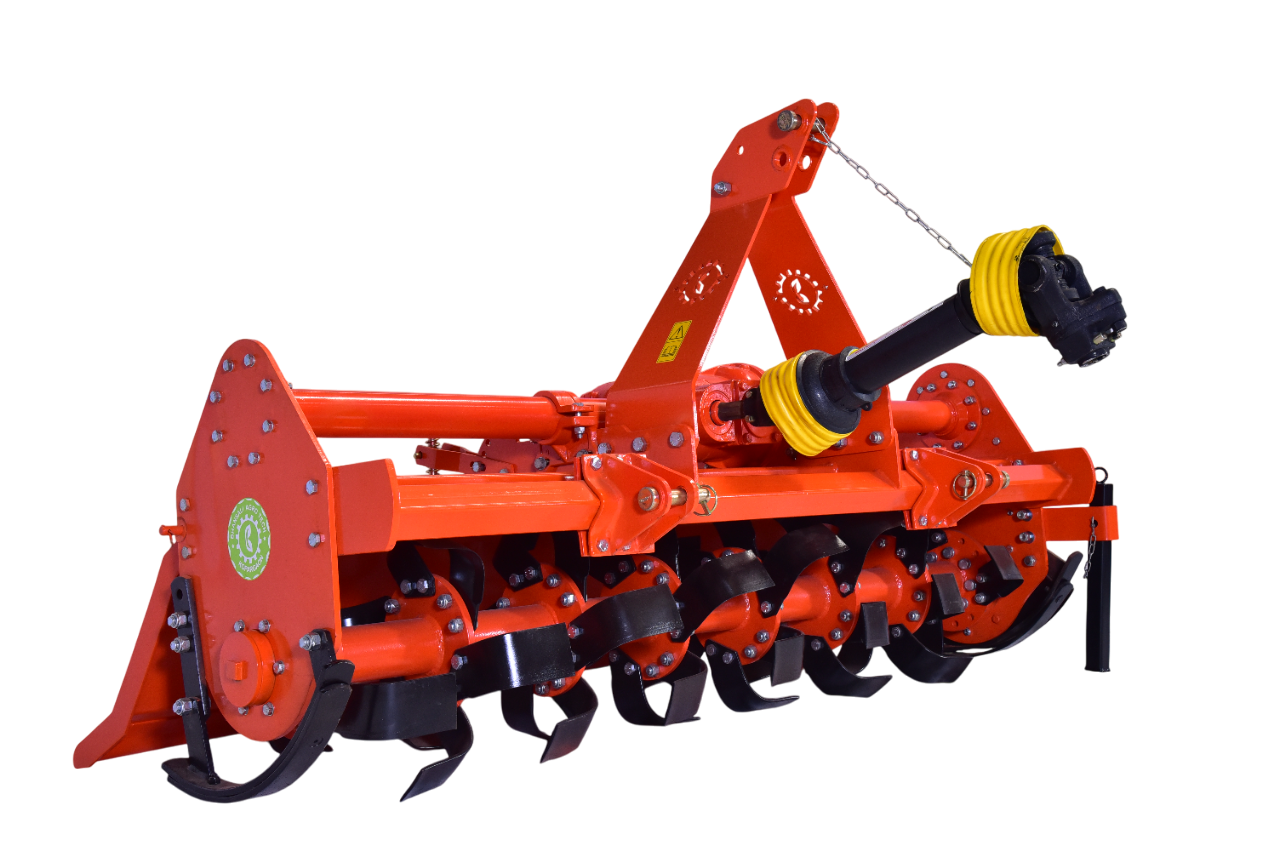

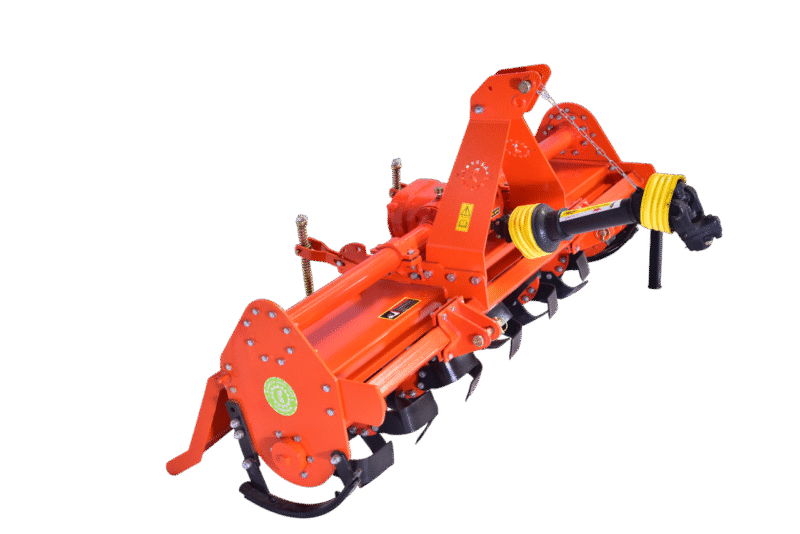

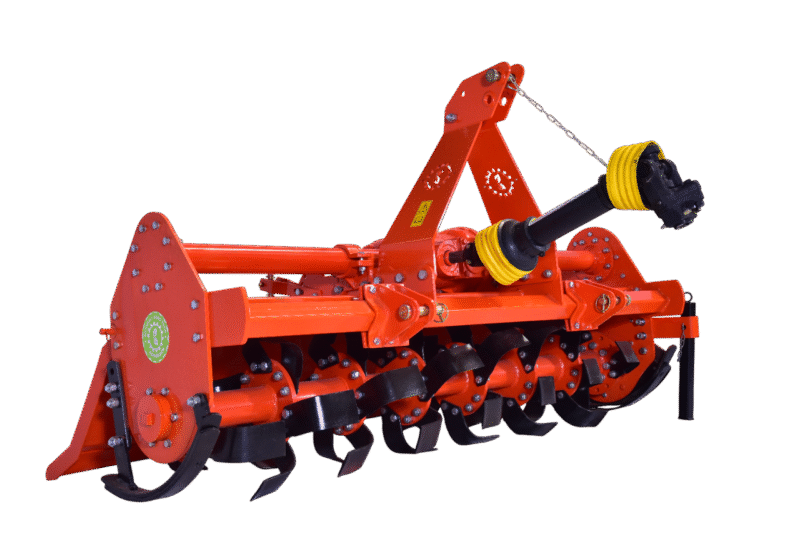

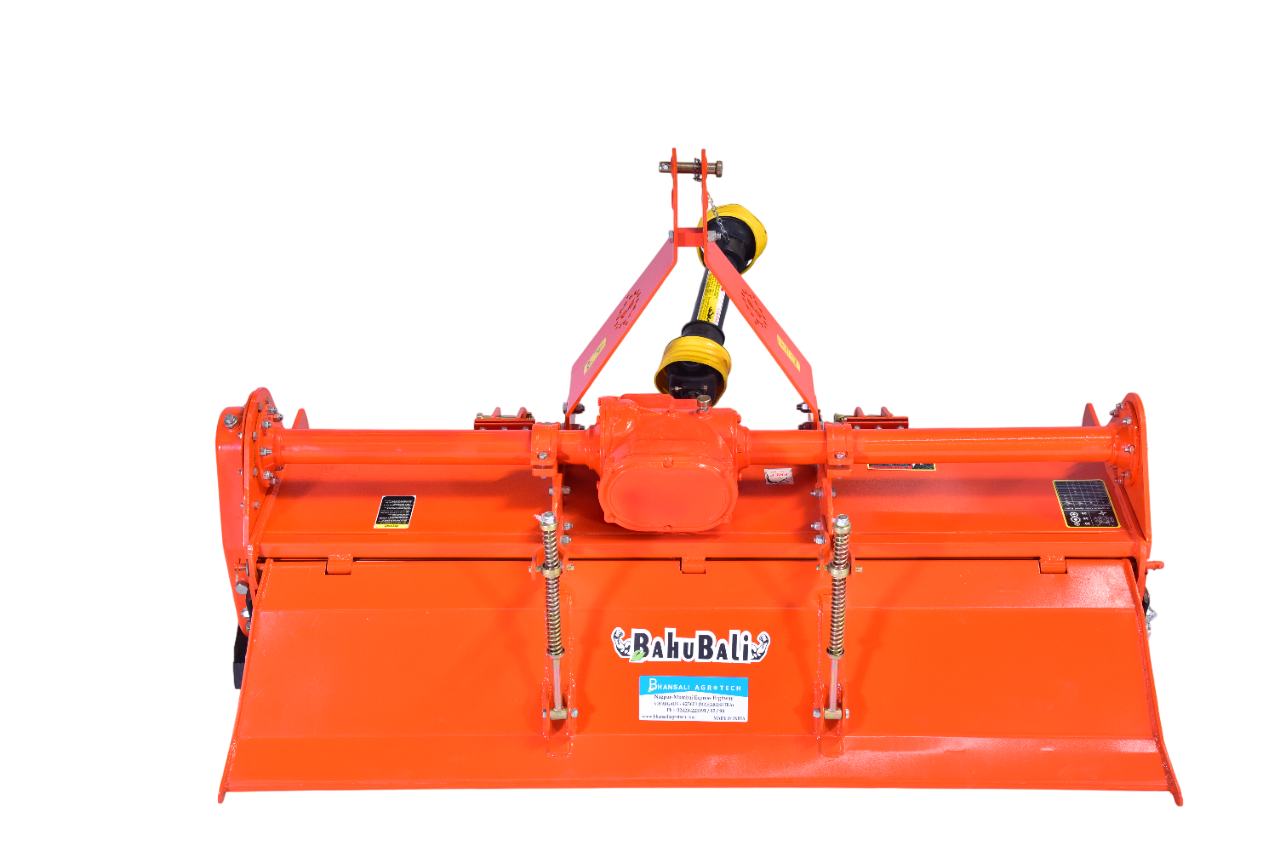

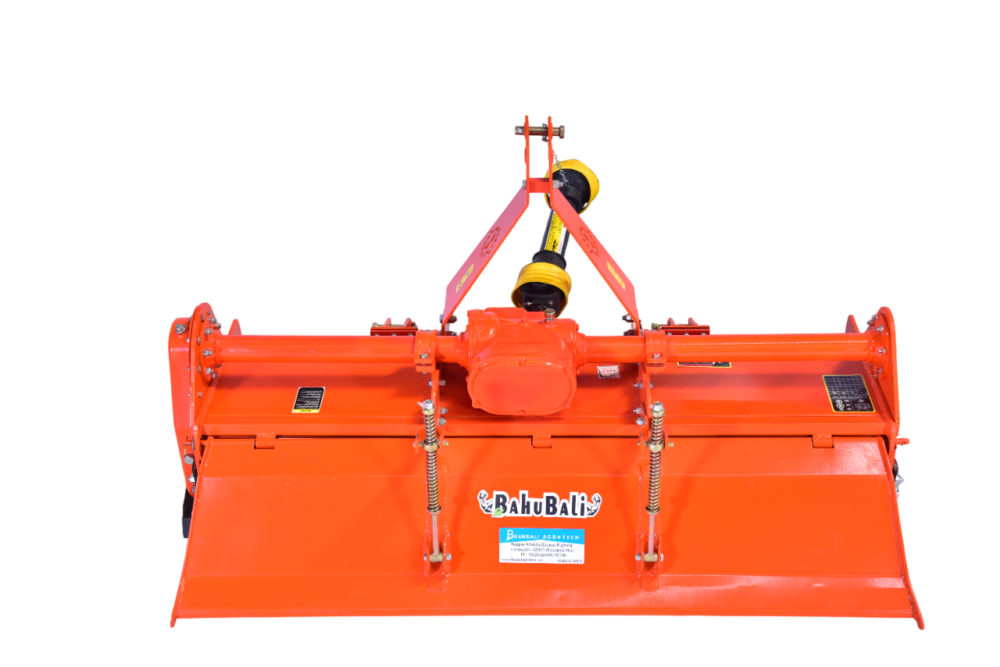

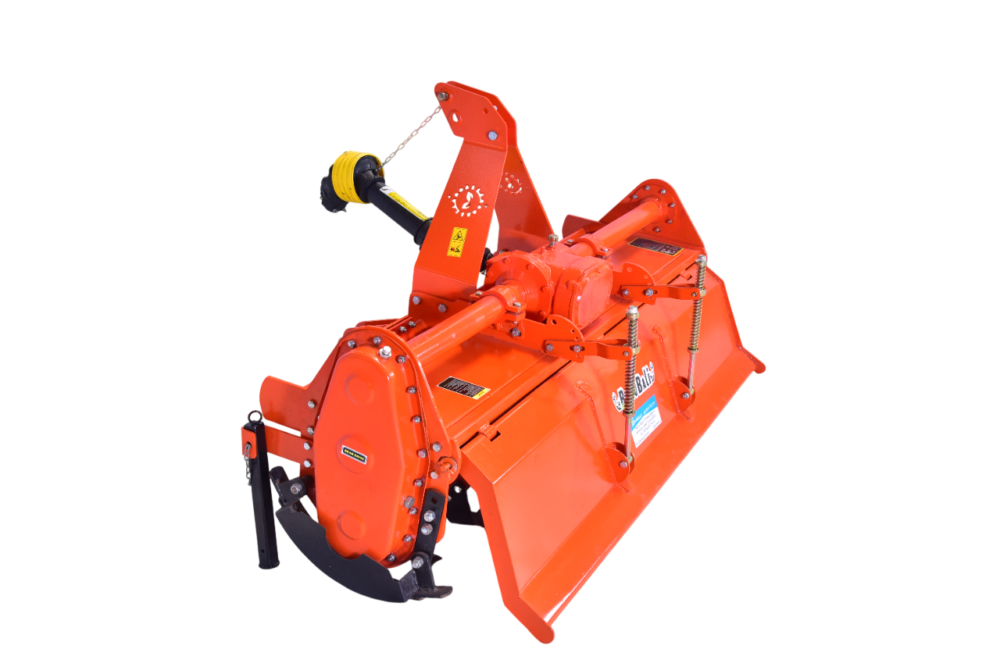

  1. This rotary tiller is a tractor PTO driven machine used for pudding the soil before rice transplantation, chopping and mixing of green manure, crop residue and stubbles into the soil to make it more fertile. As a secondary tillage implement, it prepares fine to accurate seed-bed in one go for sowing any type of crop.

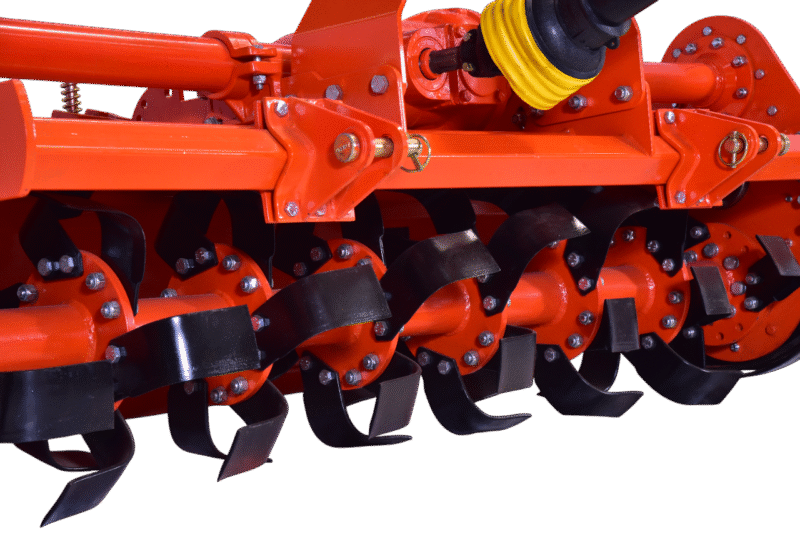

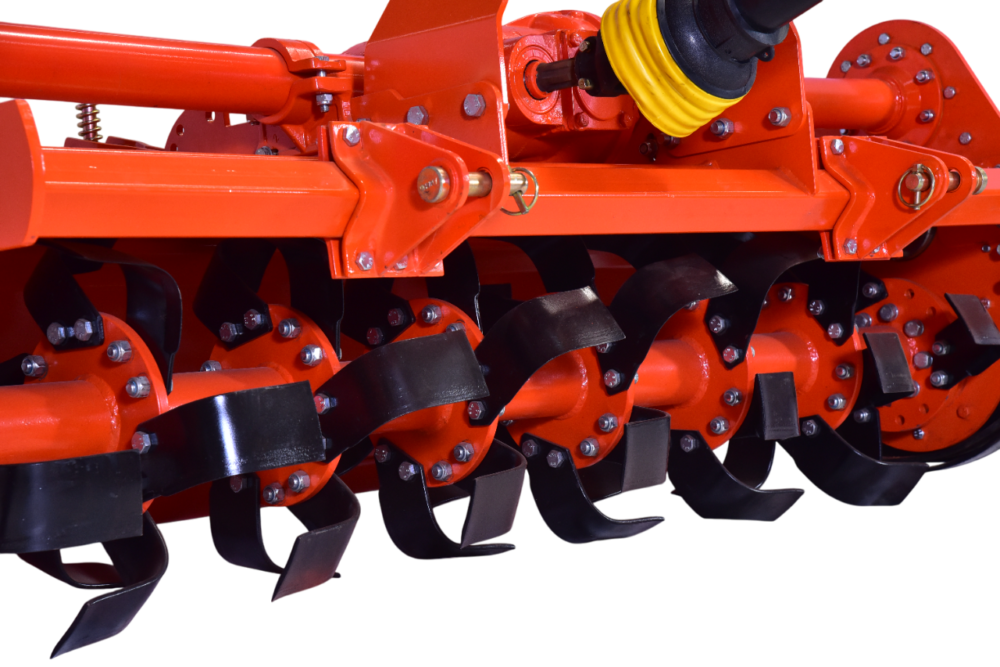

  2. The drive to the blades from the gear box is by shaft and rugged gears to give long life and reliability.
    • Choice of L-Blades, Spike-Blades.
    • Adjustable mounting brackets.
    • Single Speed / Multi Speed gear box.
    • Spring loaded adjustable trailing board.
    • Choice of chain drive or gear drive.
    • Rotor speed standard 210 R.P.M. optional 235 R.P.M.
    • Automatic spring loaded chain tensioner.
Category: Tag:

Description

Specification

Description 30RTMG 36RTMG 42RTMG 48RTMG 54RTMG 60RTMG 66RTMG
Gear Box Multi speed Gear Box*
Input RPM /Rotor RPMs 540 or 1000 / 180 to 240 541 or 1000 / 180 to 240 542 or 1000 / 180 to 240 543 or 1000 / 180 to 240 544 or 1000 / 180 to 240 545 or 1000 / 180 to 240 546 or 1000 / 180 to 240
No. of Blades 30 (1.2 Mtr) 36 (1.5 m) 42 (1.8 Mtr) 48 (2.1 Mtr) 54 (2.31 Mtr) 60 (2.75 Mtr) 66 (3.1 Mtr)
Type of Blades / Material L Type/C Type Boron Steel
Blades Arrangement 6 Blades per gang & 3 blades on end gangs 7 Blades per gang & 3 blades on end gangs 8 Blades per gang & 3 blades on end gangs 9 Blades per gang & 3 blades on end gangs 10 Blades per gang & 3 blades on end gangs 11 Blades per gang & 3 blades on end gangs 12 Blades per gang & 3 blades on end gangs
Side Drive Gear Type/Chain Type
Working Depth (depending on soil) Min : 120 mm – Max : upto 210 mm
Anti Loosening Nylock Nuts provided as a standard fitment
Weight (Kg) 325 390 428 505 570 625 690
Suitable for HP 35 & 45 45 & 55 55 & 65 65 & 75 75 & 80 90 & 100 90 & 100
