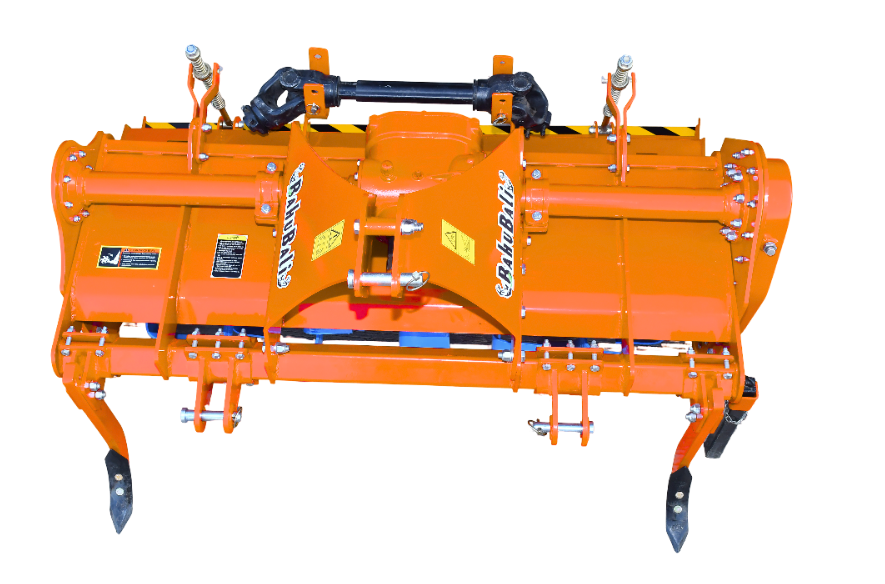

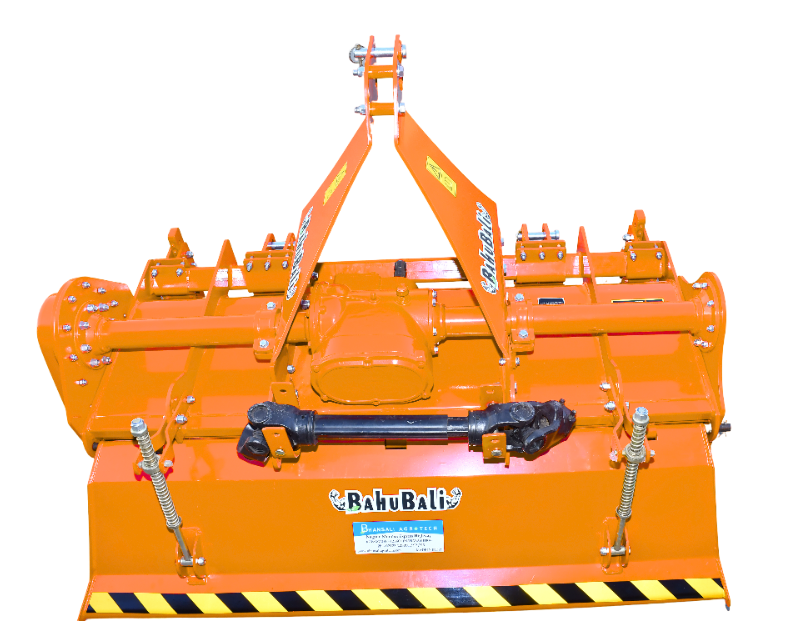

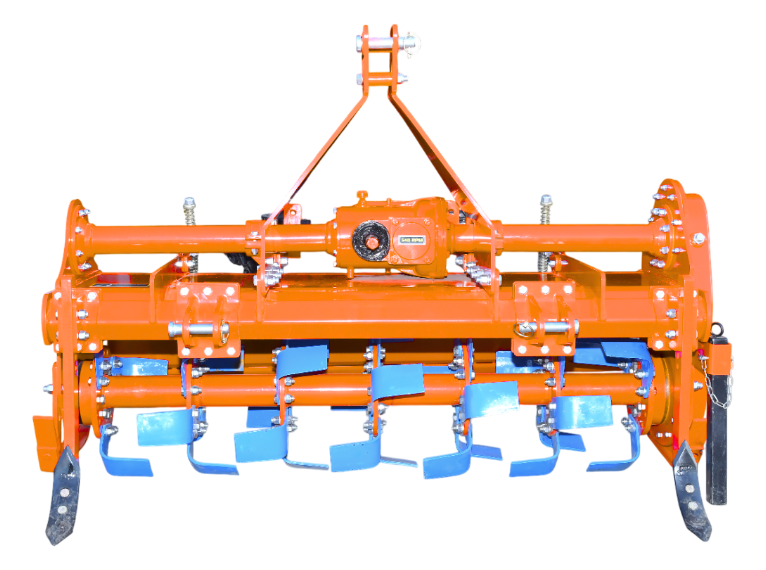

Rotavator HD

Frame and Blade Assembly: Enhanced gap between the frame and blade assembly to prevent mud jamming during operation.
Heavy-Duty Frame: Robust 75 mm Sq. pipe both side ensures superior strength and durability.
Reinforced Frame Sheet: 5 mm thick frame sheet for extra sturdiness and longevity.
Stability and Support: Heavy-duty mask design provides greater stability while working on tough terrains.
PTO Joint Stand: Convenient stand included for the PTO joint, ensuring easy handling and secure attachment. PTO with star-shaped tube and rotational locking for secure and efficient power transfer.
Optional Tyens for Efficient Tilling:
Additional Tyens provided for effective tilling beyond the reach of tractor tires, covering more ground efficiently.
Optional Shara Attachment: Shara attachment available as an optional add-on for enhanced functionality.
3 point Linkage :- A one piece mask is provided to enhances strength and reduces vibration.
Built for rugged performance and reliable results — the perfect companion for modern farming

Description

Specification

Description	36RTMGHD	42RTMGHD	48RTMGHD	54RTMGHD	60RTMGHD
Gear Box	Multi speed Gear Box
Input RPM /Rotor RPMs	540 or 1000 / 180 to 240
No. of Blades	36 (1.5 m)	42 (1.8 Mtr)	48 (2.1 Mtr)	54 (2.31 Mtr)	60 (2.75 Mtr)
Type of Blades / Material	L Type/C Type Boron Steel
No. of flange	7	8	9	10	10
Blades Arrangement	6 Blades per gang & 3 blades on end gangs
Side Drive	Gear Type /Chain type
Working Depth (depending on soil)	Min : 120 mm – Max : upto 210 mm
Anti Loosening	Nylock Nuts provided as a standard fitment
Weight (Kg)	425	467	490	600	640
Suitable for HP	45 & 55	55 & 65	65 & 75	75 & 80	90 & 100
