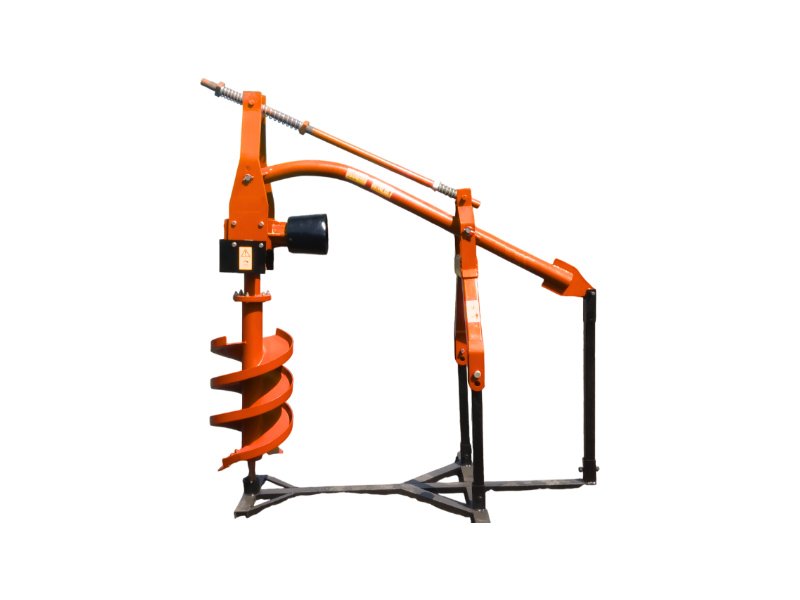

Post Hole Digger

Post Hole Digger is a PTO driven machine that digs holes in rows on equal distances mechanically and economically. It is best suited for tree plantation. It can Also be used for making for electric poles and farm hedges.
It is a PTO driven implement it is fastest method to dig hole in farm land.
Removed soil will be placed around the pit which becomes easy to fill the pit back after plantation or erection work done.
It has robust structure to ensure and excellent performance to the Customer.
We replace auger with same frame as per 6,9,12,18,24,36 inches hole diameter required with depth of 2 to 4 feet.
Its heavy-duty gearbox encapsulates a best-in-class crown-pinion which provides a high output RPM to the auger blade.

Category: Digger

Description

Specification

Model Number	PHD912OC	PHD912	PHD18	PHD2436
Frame	Heavy Duty Rectangular pipe
Three Point Linkage	Category-1	Category-2
Gear Box	Compatible with 30 HP max, With ratio 3:1 Ratio	Compatible with 55 Hp max, With ratio 3:1 Ratio
Out Put Shaft	2″ (50mm)
Input rpm	540
PTO	Regular
Auger length (APPOX) inch	40″
Auger Size inch	6″ / 9″	9″ / 12″	18″	24″
Weight (Approx.) Kg	115 / 130	220 / 240	236	290
Tractor Power (Hp)	20 To 24 HP	35-45 Above	45-50 (Above)
