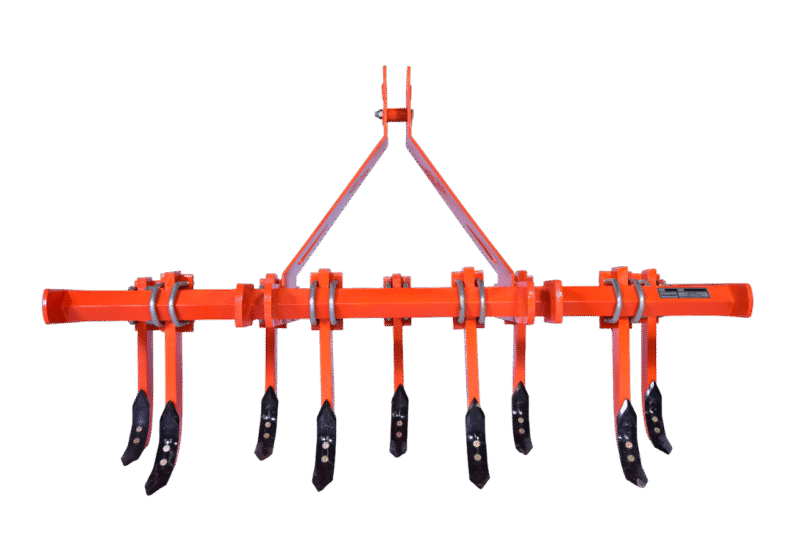

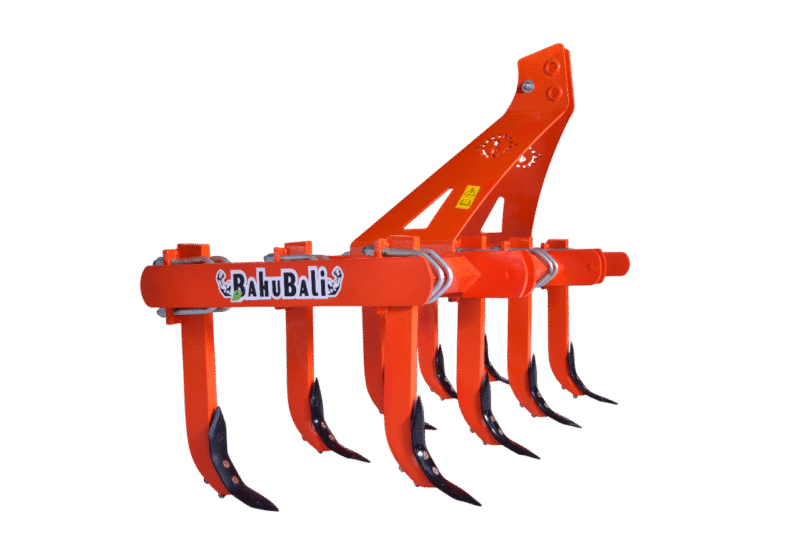

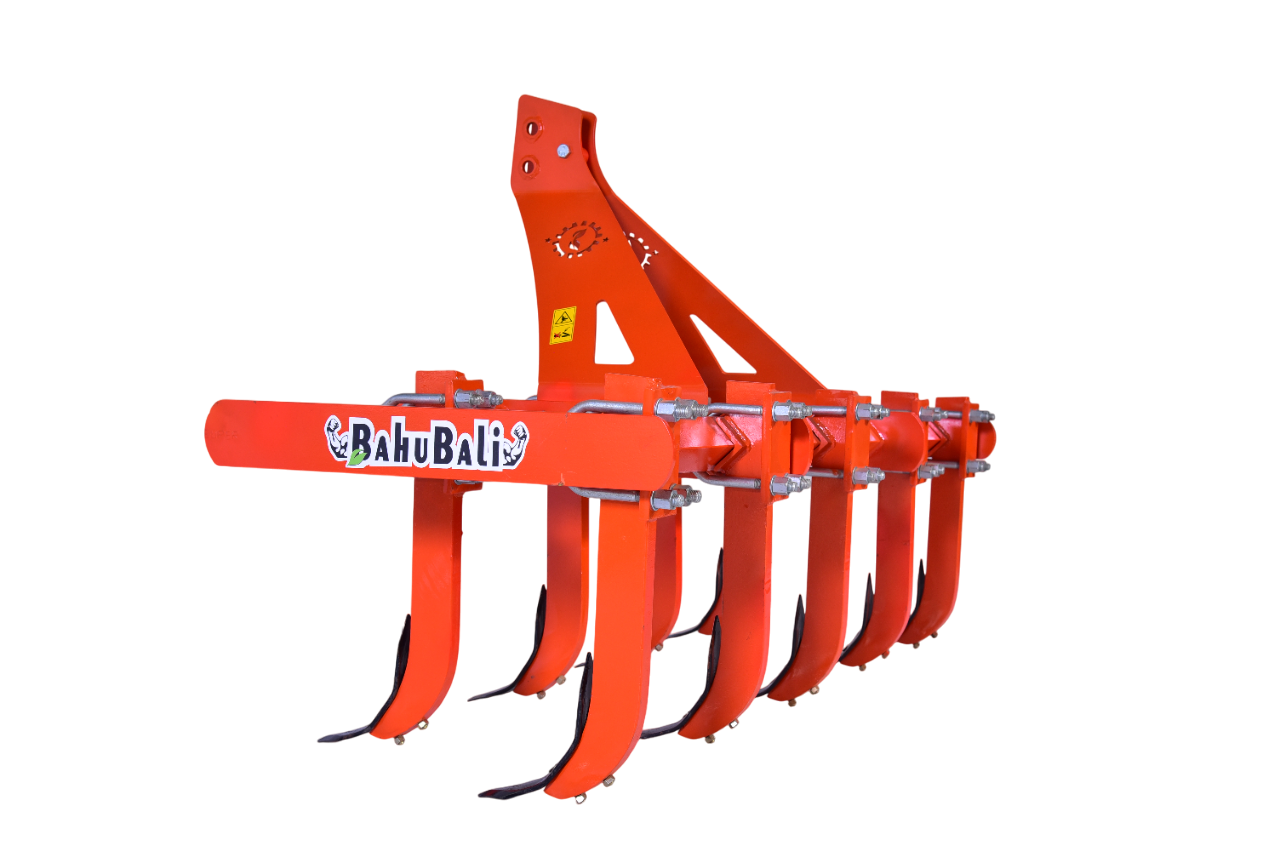

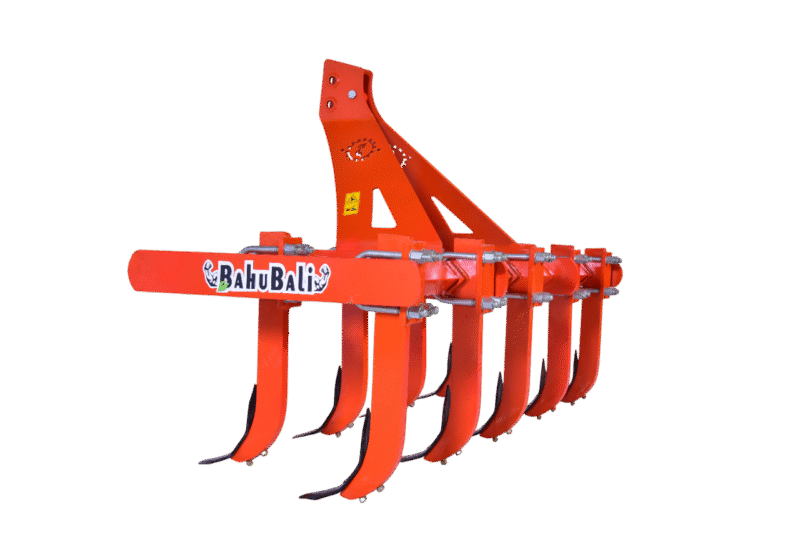

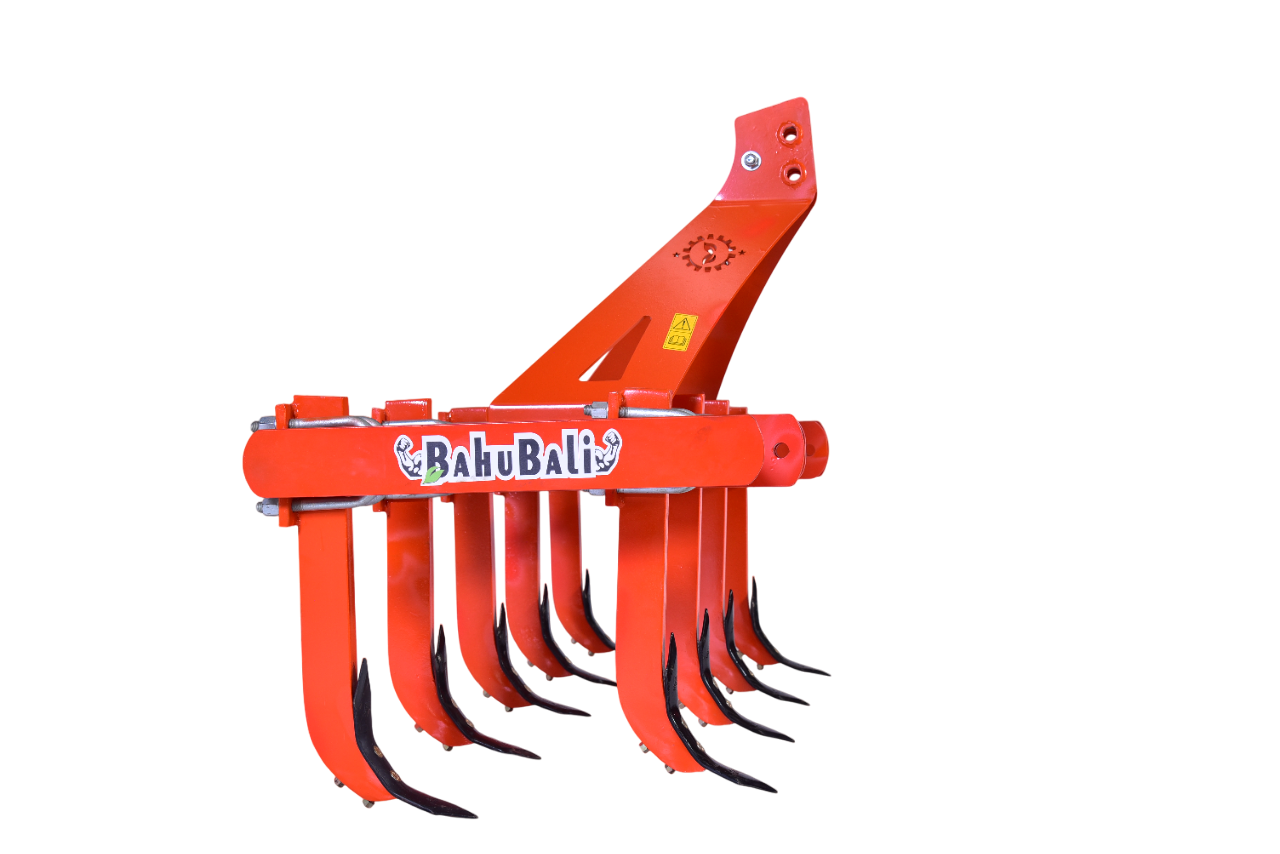

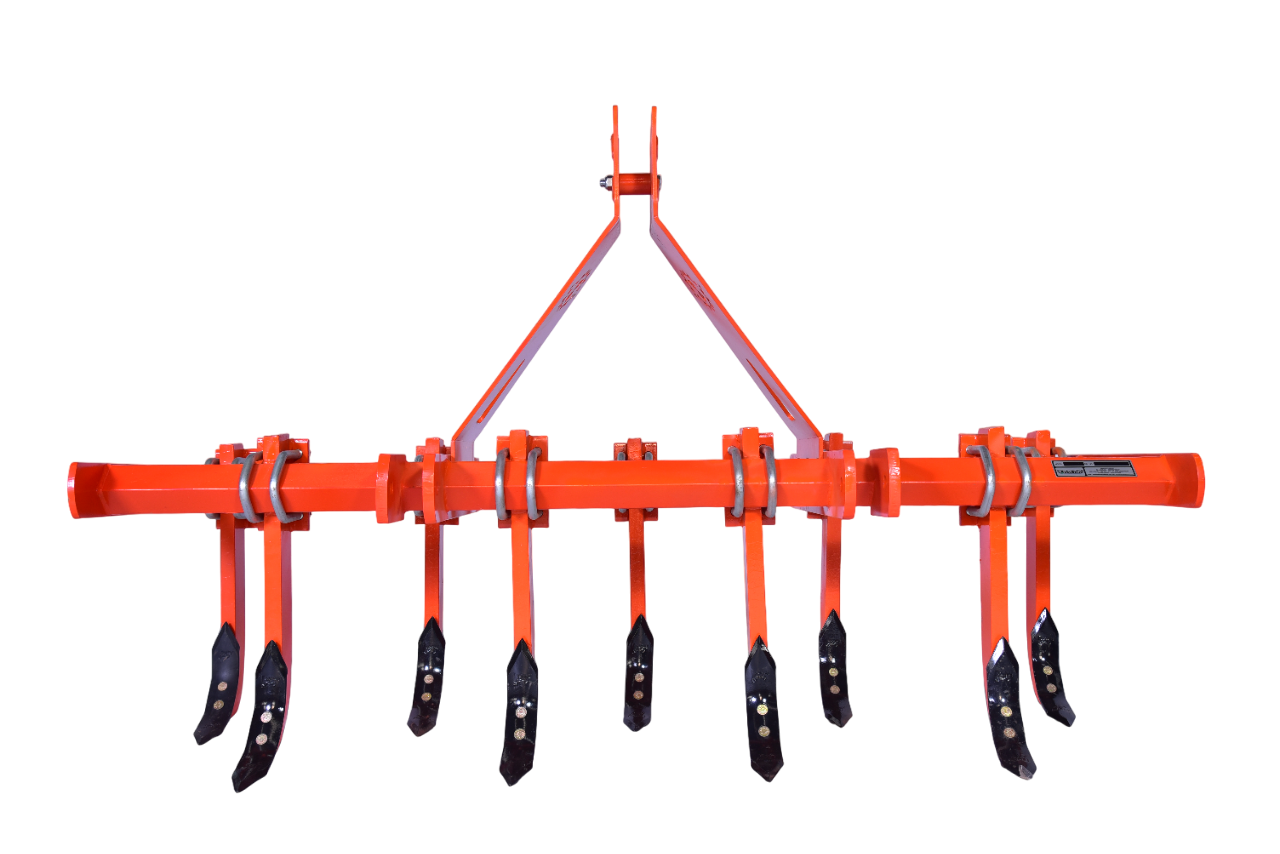

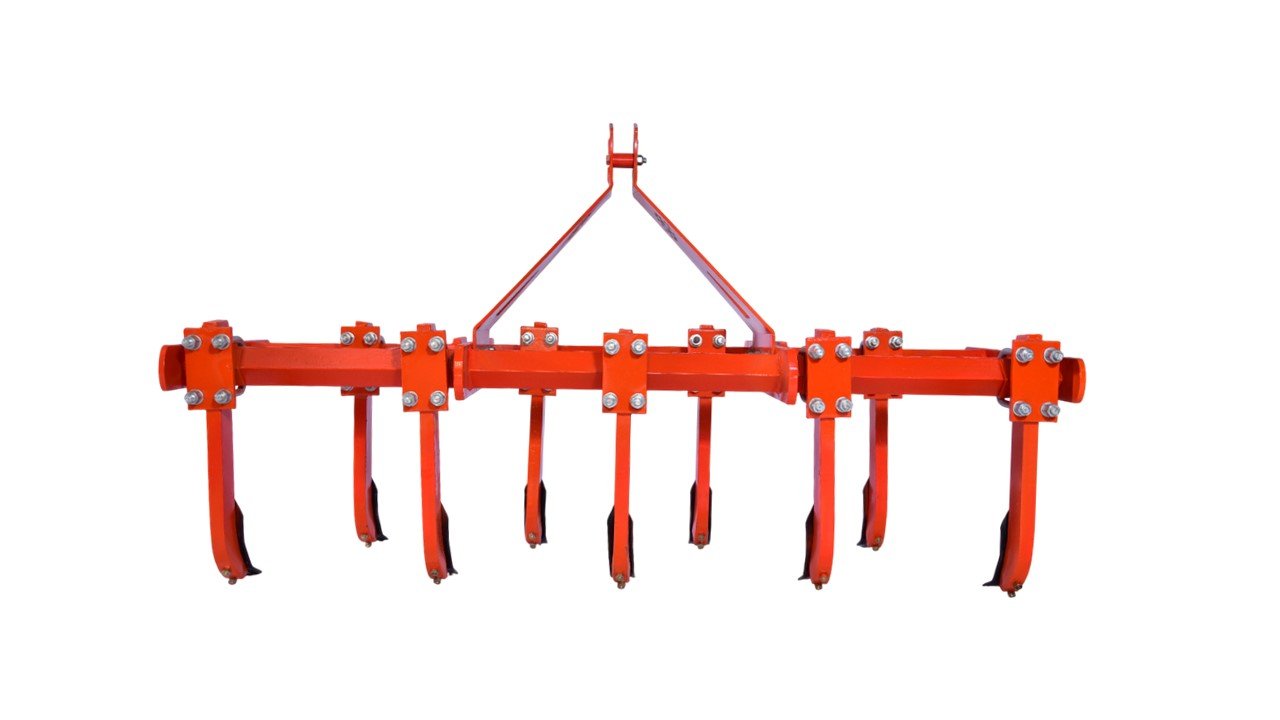

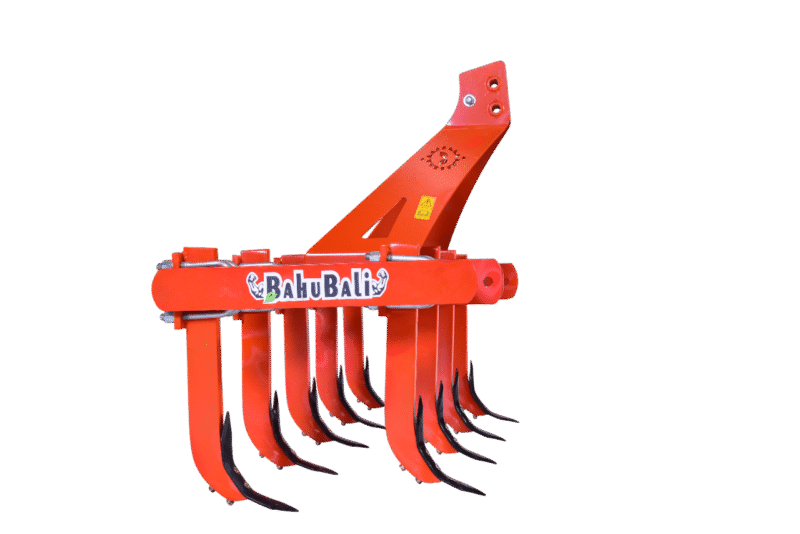

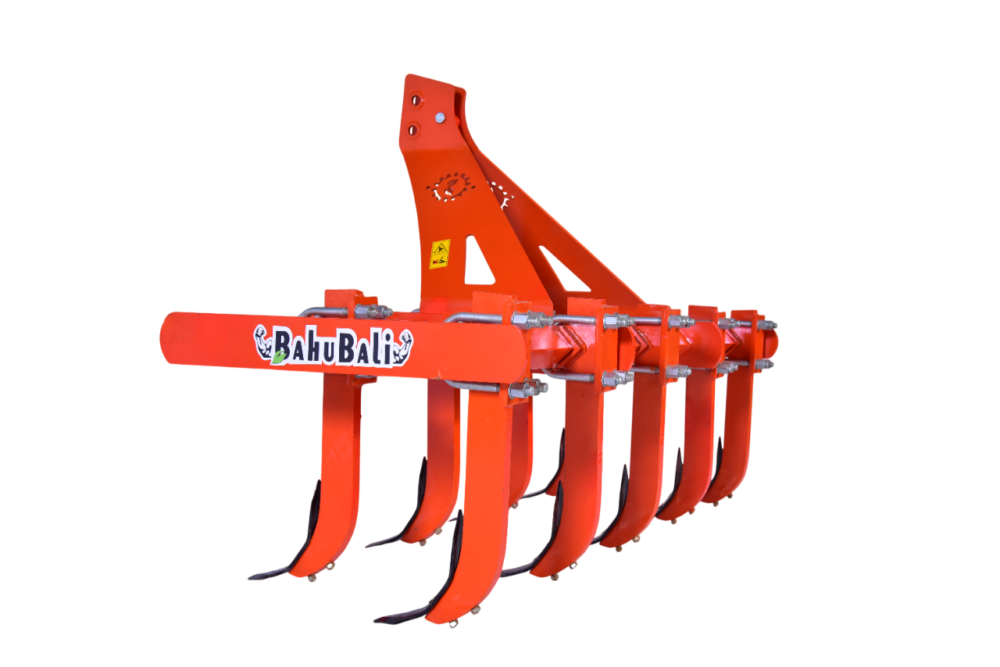

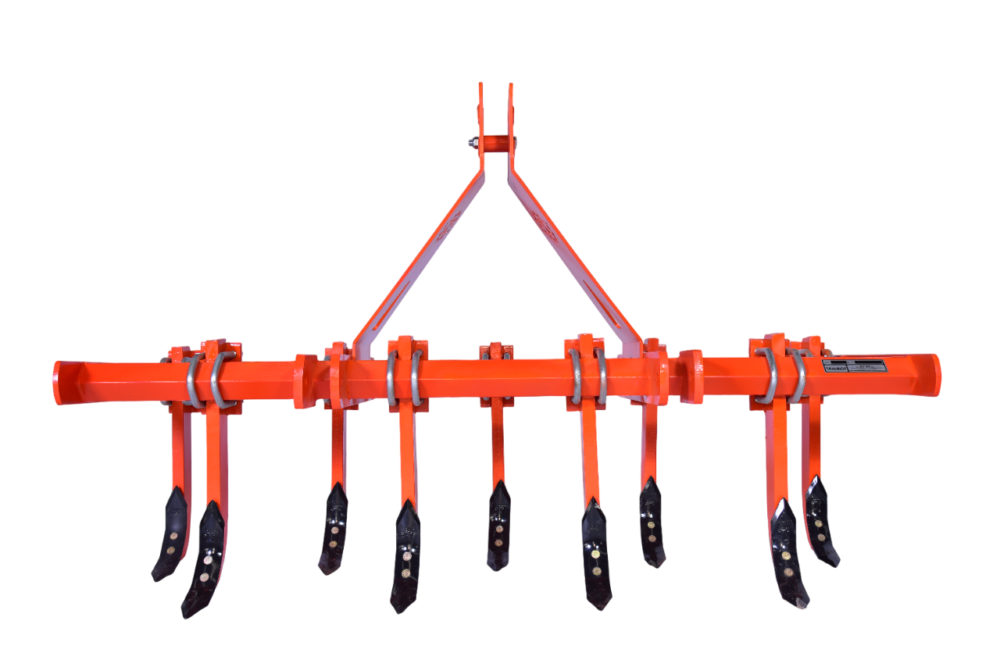

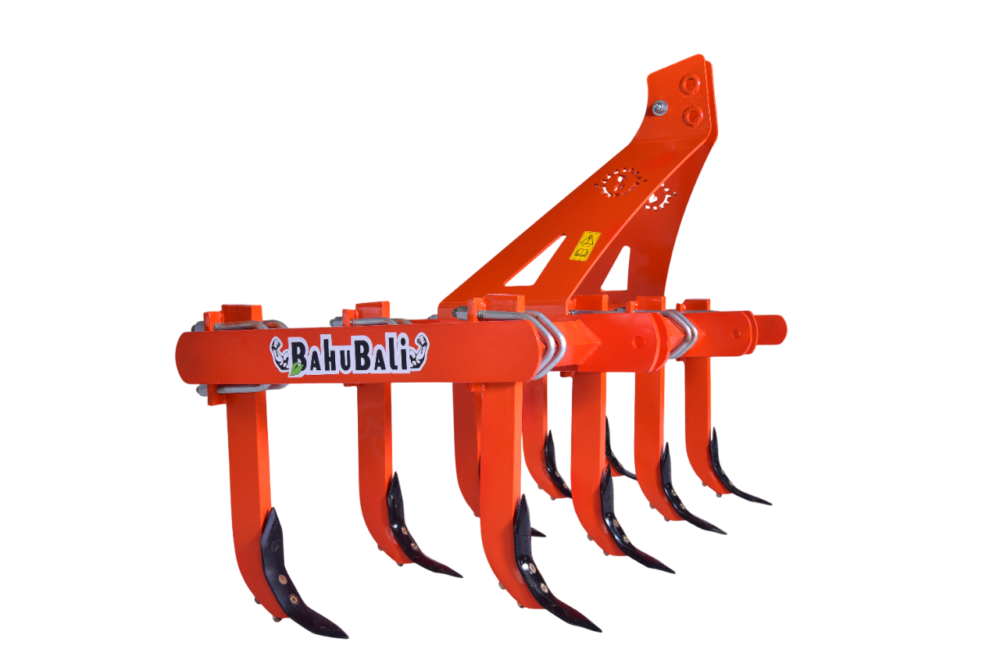

Clamp Type Tiller
Clamp Type Tiller

Clamp Type Tiller

  1. Main frame is made up of 65 mm square duly reinforced by several central supports.
  2. Thicker tynes to restrain from sudden impact loads.
  3. Sharp edged points to give easier and deeper penetrations with effective uprooting of crop residue and cutting of heavy soil clods at any soil conditions.
  4. Provision for spacing adjustments between tynes to be useful for various soil conditions and various crops.
  5. Sharp edged Reversible shovels that gives deeper penetrations at any soil conditions and can be reversed and used on the other side after complete wear of one side.
  6. Can be used for uprooting after cutting crops or primary tillage operations before Sowing.
Category:

Description

Specification

Model Number 7TCT 9TCT 11TCT 13TCT 15TCT
Number Of Tyne 7 Tyne 9 Tyne 11 Tyne 13 Tyne 15 Tyne
Mounting CAT (Flat ) Cat II (75 X 12)
Mounting Category CAT II
Main Frame mm 65 x 65 Sq.
Size of Tyne (Material) 25mm Thickness.(EN8)
Over All: LXWXH (Approx. mm) 800 X 1610 X 965 800 x 2020 x 965 800 x 2475 x 965 800 X 2932 X 965 800 x 3390 x 965
Shovel (Material) 8 mm (EN-42)
Working Width Range (Approx. mm) 1400 1856 2312 2768 3224
Spacing Between Tyne (mm) 228 (Adjustable)
Weight (Approx. in Kgs) 180 230 280 330 380
Suitable HP Range 35 to 45 45 to 55 55 to 60 60 to 70 70 to 90
