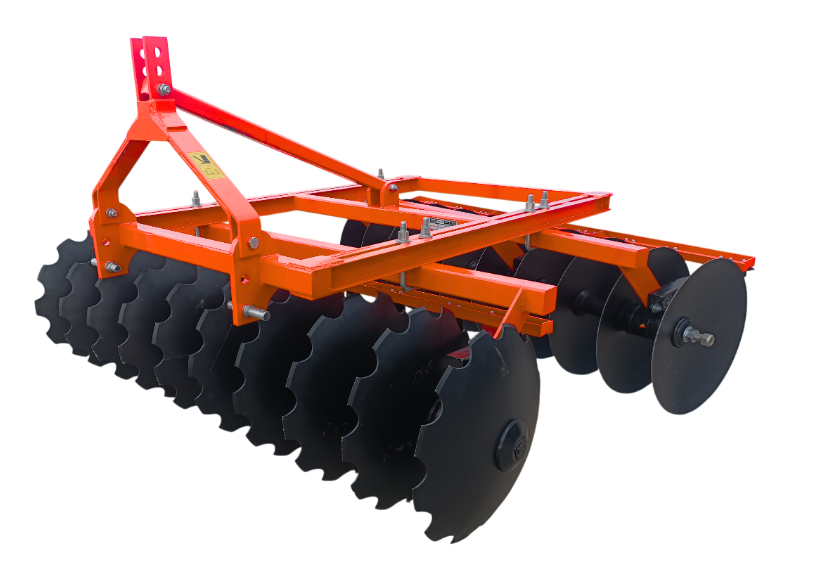

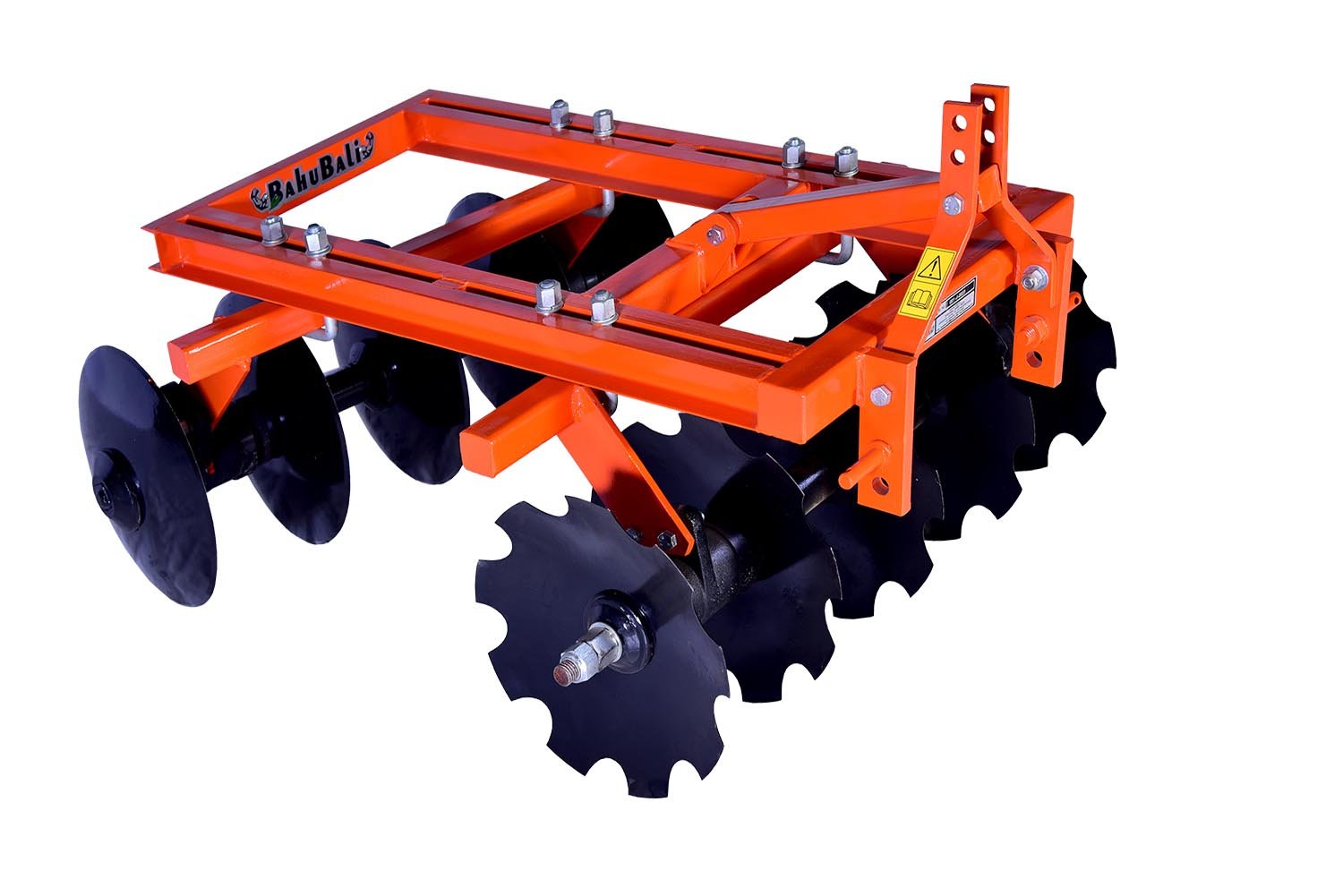

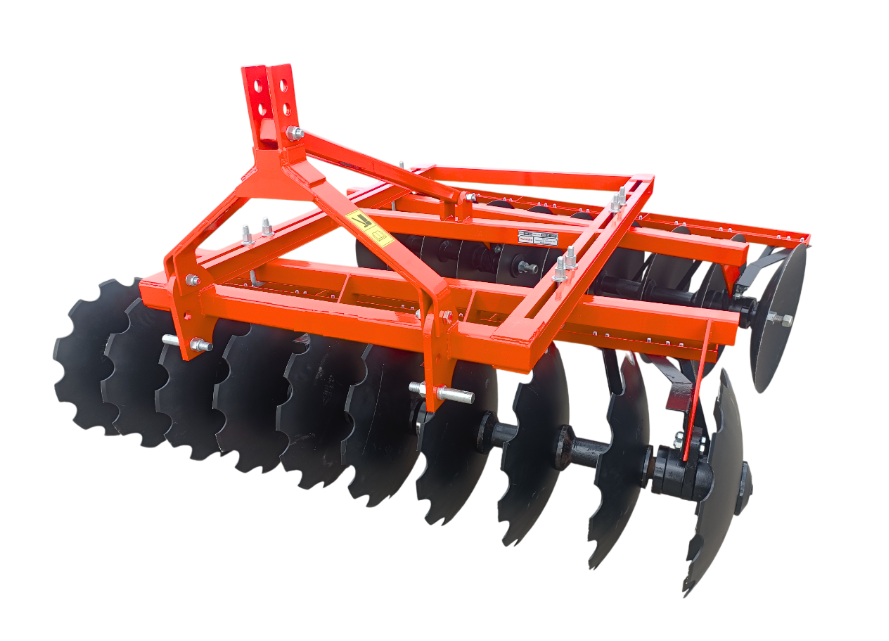

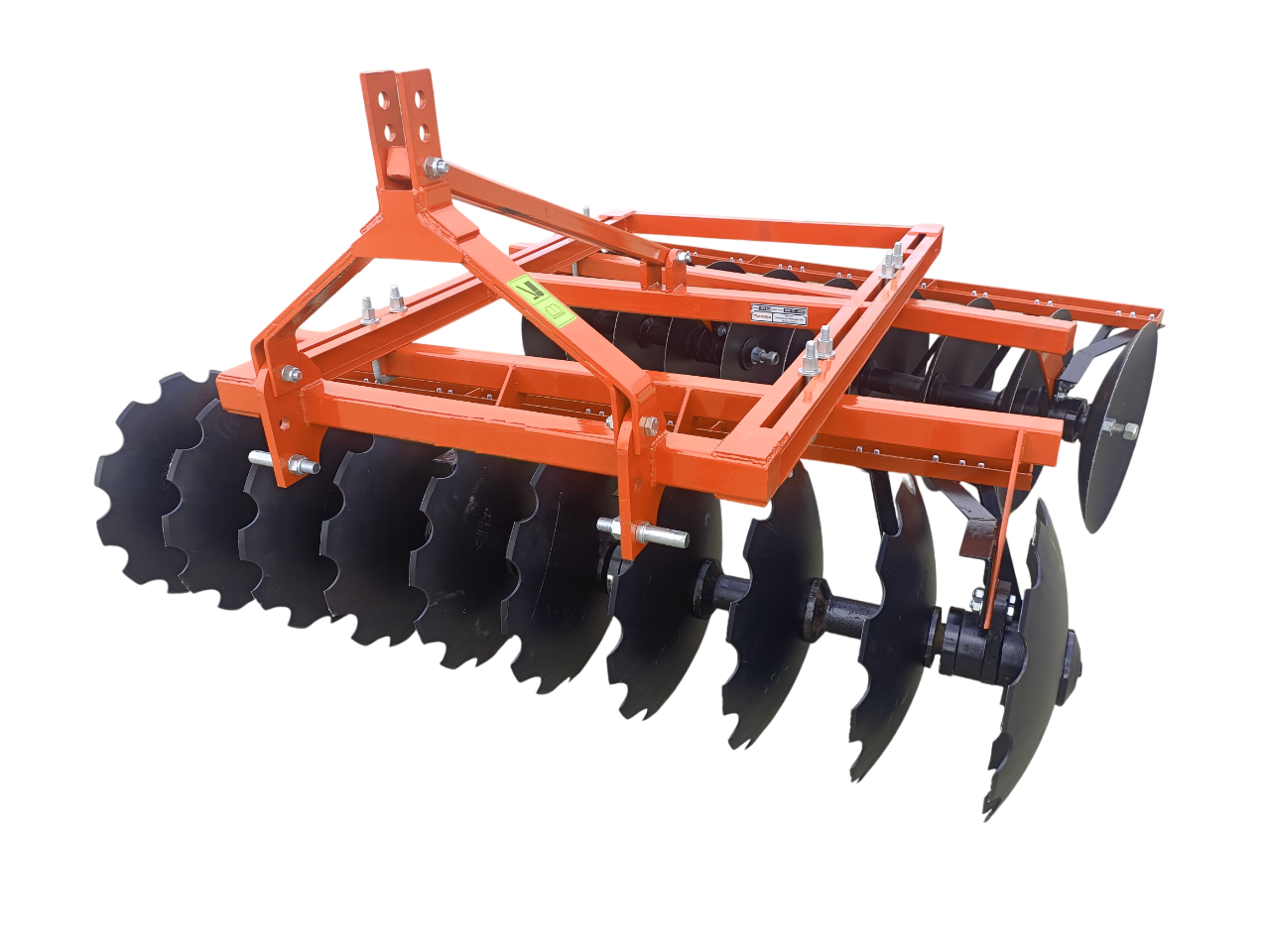

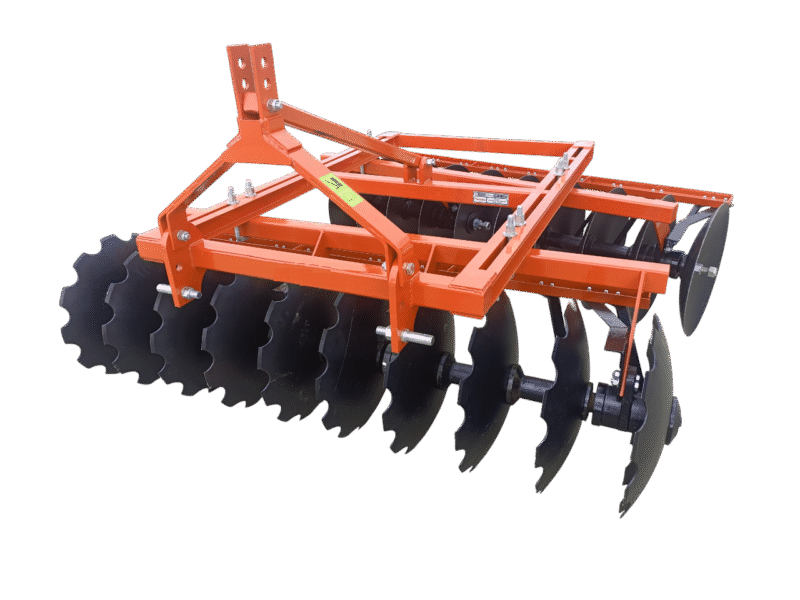

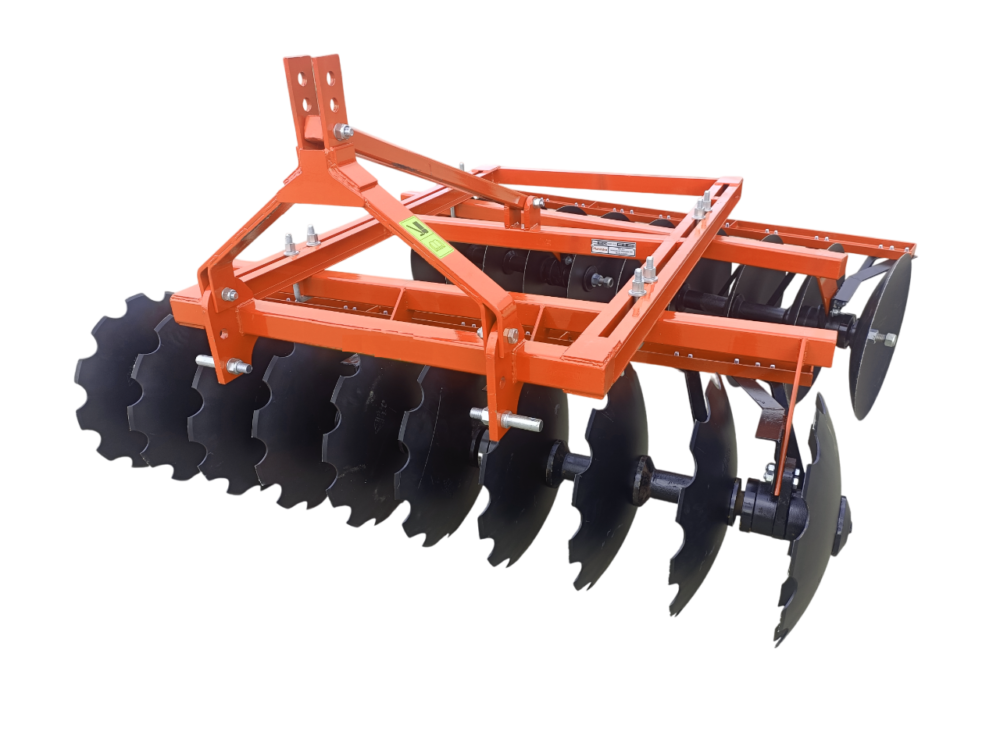

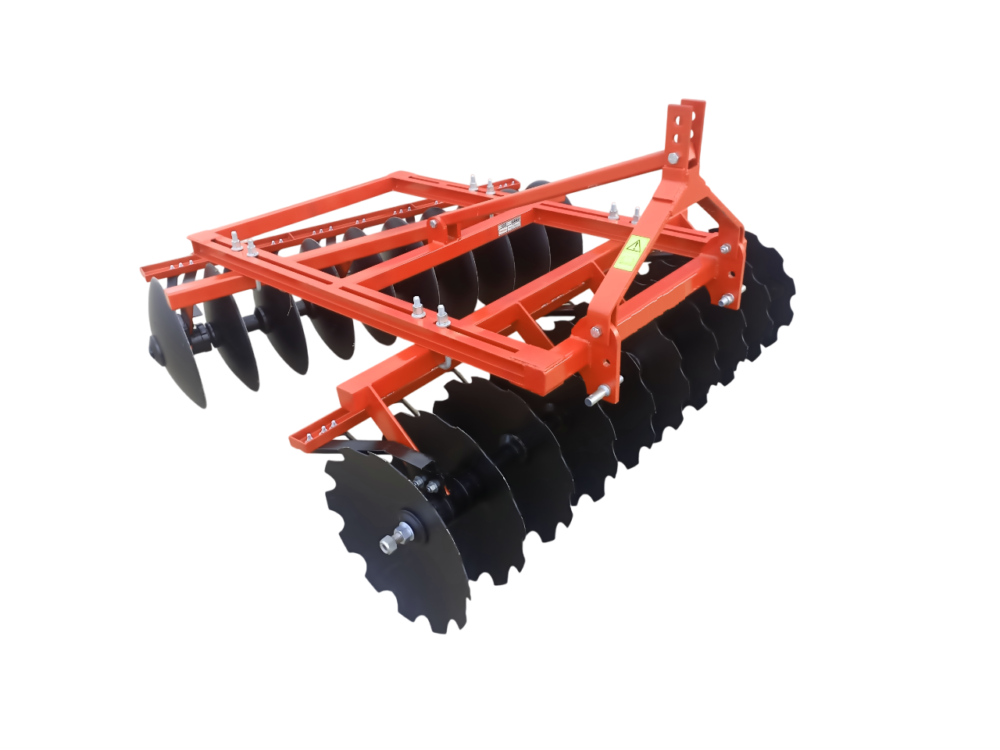

Channel Frame Disc Harrow

Offset Disc Harrow is tractor hydraulic operated implement which trails behind the tractor and effectively breaks up clods with deeper penetration due to its heavy weight and design. Both disc gangs are offset at an angle to ensure no soil remains uncut and heavy crop residue with organic matter is effectively buried.
In addition the implement being easily attached and transportable in top speeds, little time is lost between the shed and the field.
Due to high quality built up and strong design and maintenance is low.
High Quality Boron steel discs
Tillage depth of the harrow is 6 inch and can be adjusted with help of angle adjustment.
High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.
High quality seals prevent the entry of mud and water into the bearings and hubs.

Description

Specification

Description	12 Disc	14 Disc	16 Disc	18 Disc	20 Disc	22 Disc	24 Disc	28 Disc
Type of mounting	Three point Hitch Linkage (CAT II)
Disc Dia (mm) (Optional)	560 ,610 ,660
Disc Type	Front: Notched, Rear: Plain
Frame (mm)	75 X 40( Channel Frame)
Disc Spacing (mm)	225
Maximum Depth (mm)	100-150 (Depends on soil moisture and field conditions)
Gang AXEL (mm)	32 mm
Width of Cut (mm) (Adjustable)	1220	1450	1680	1930	2220	2450	2650	2780
Weight (Kg)	400	445	492	520	555	590	700	790
Bearings Hub	4	4	6	8	8	8	8	8
Suitable HP Range	45-55		55 -60		60-70	80-90	90 -110	90 -110
