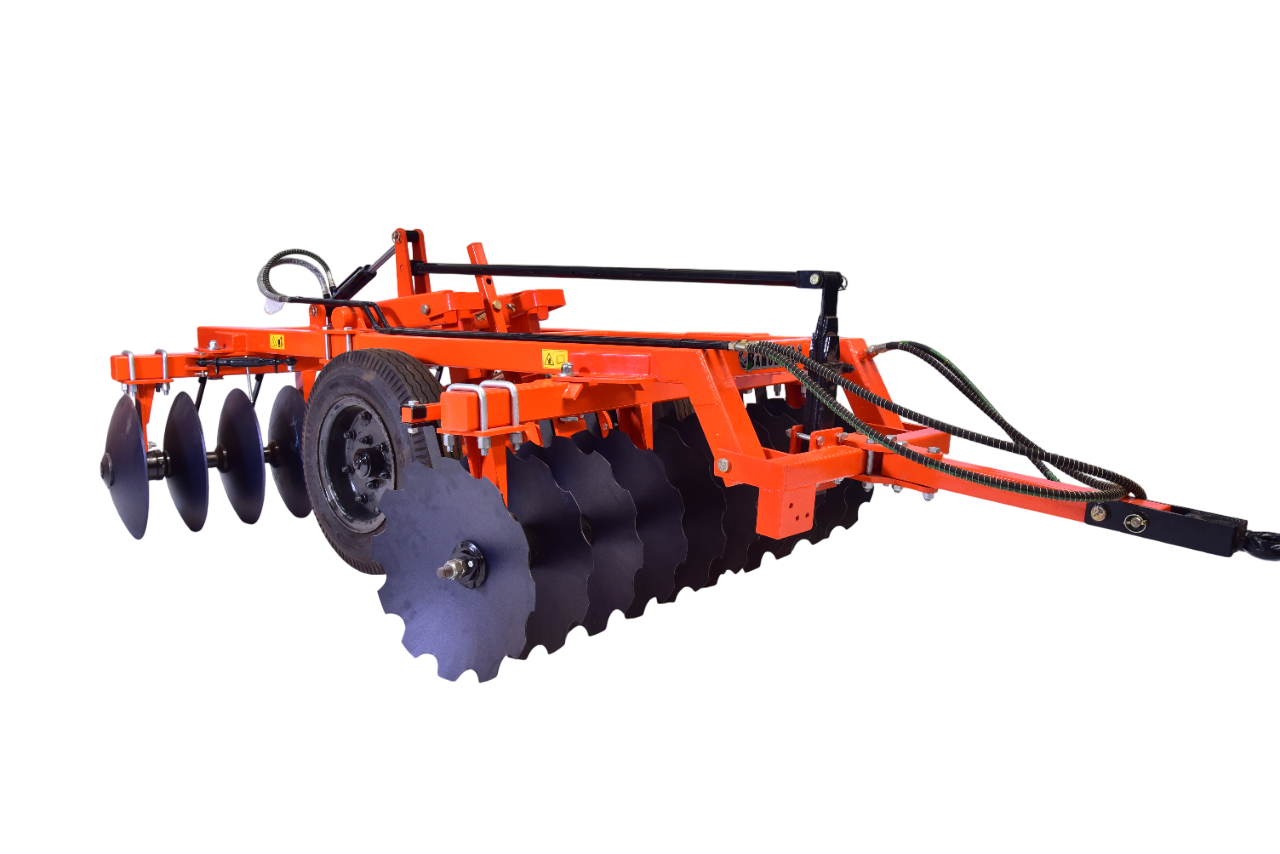

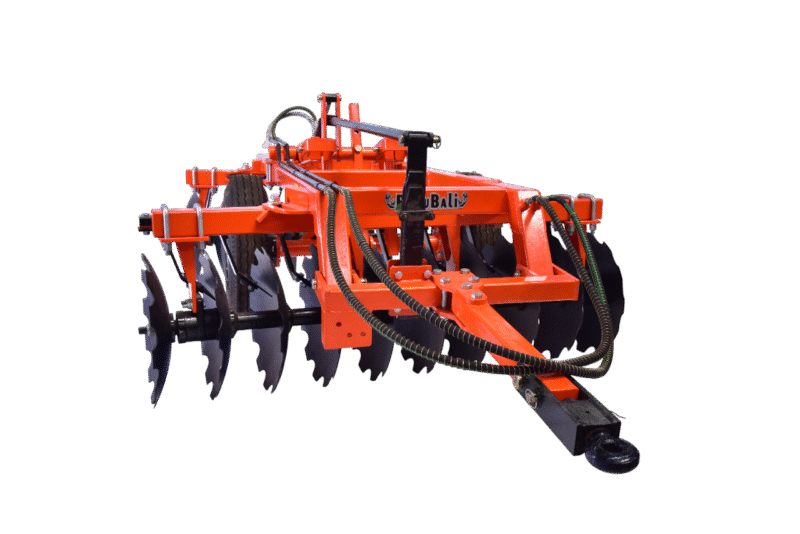

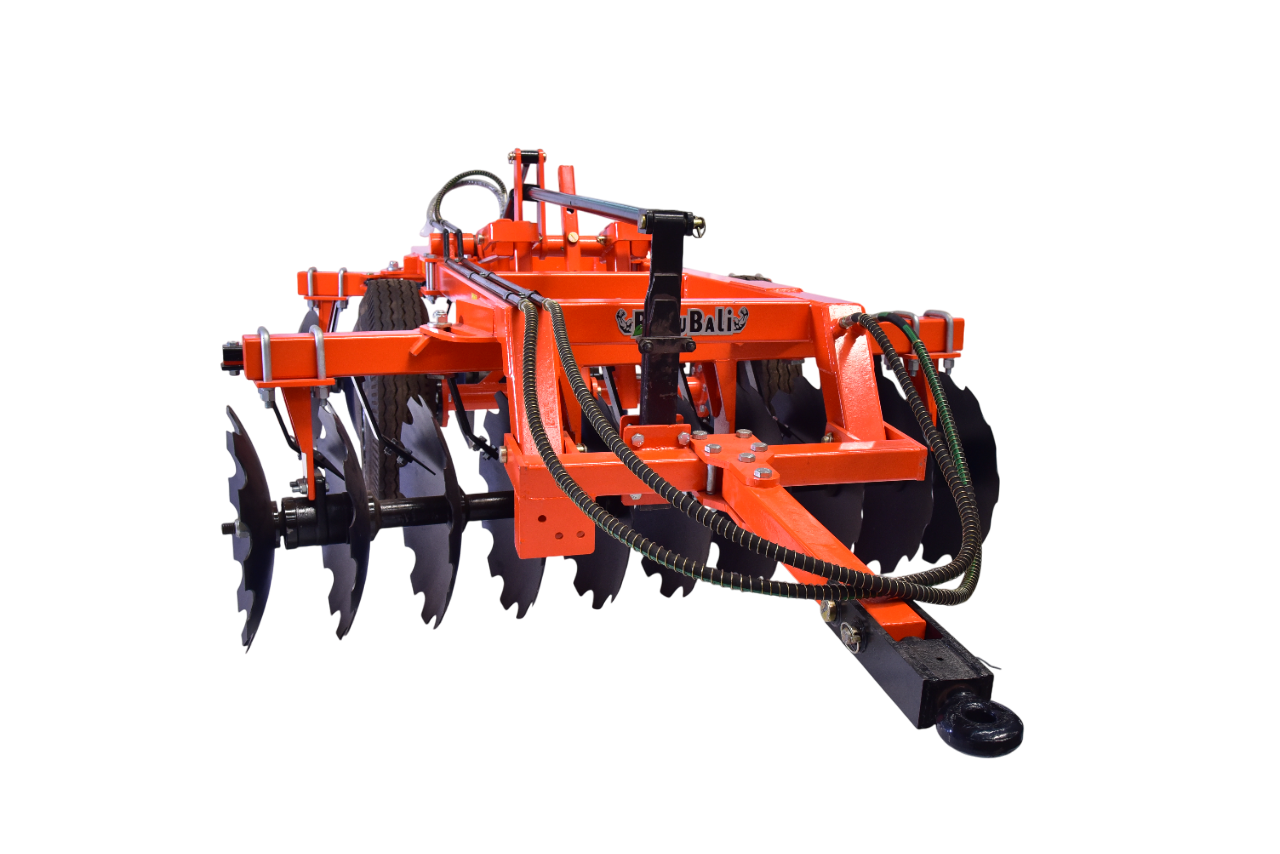

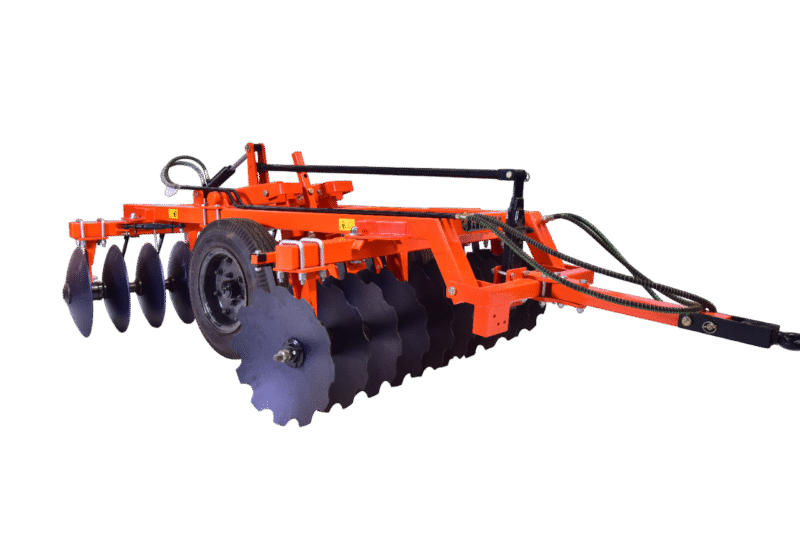

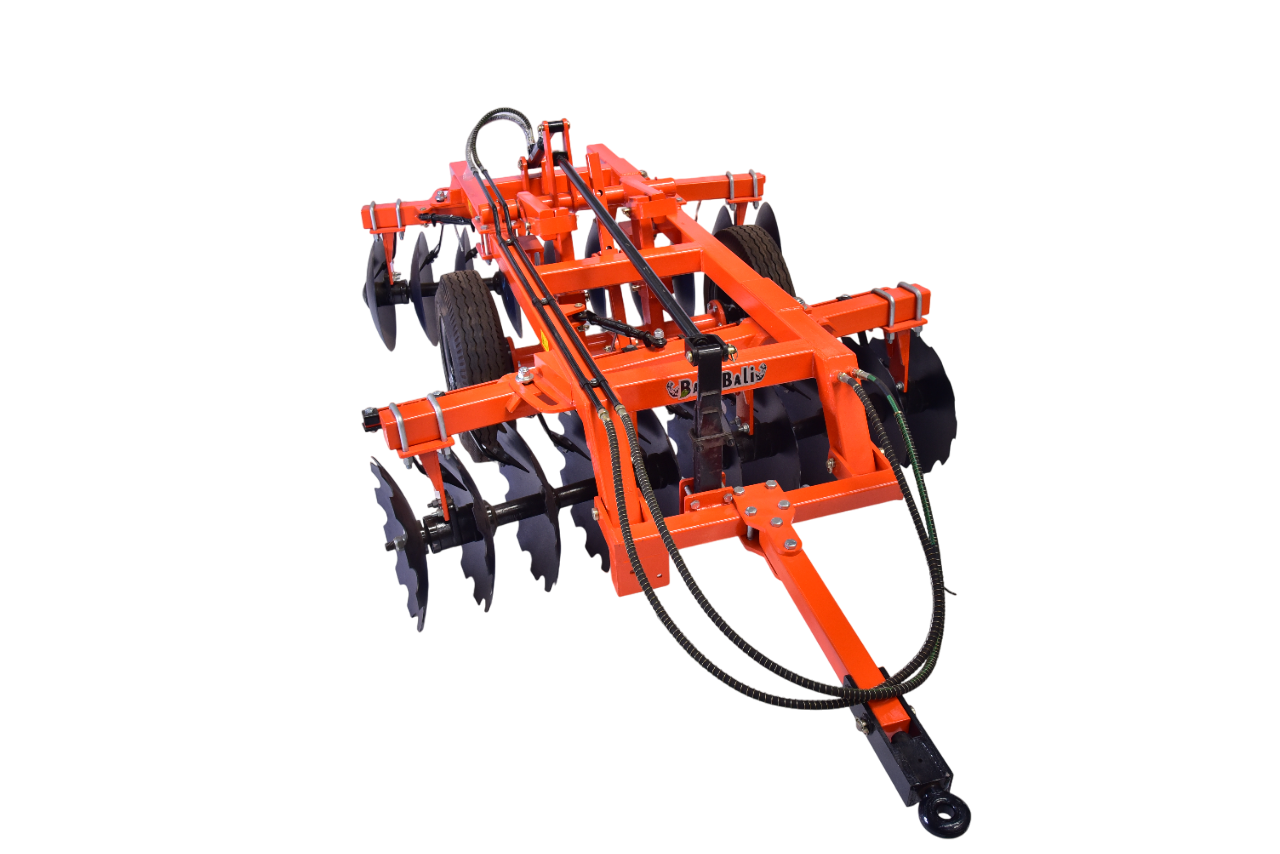

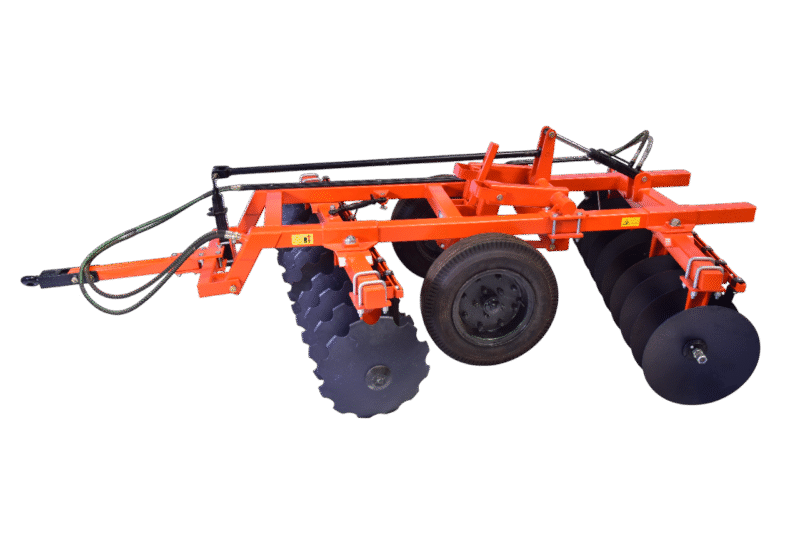

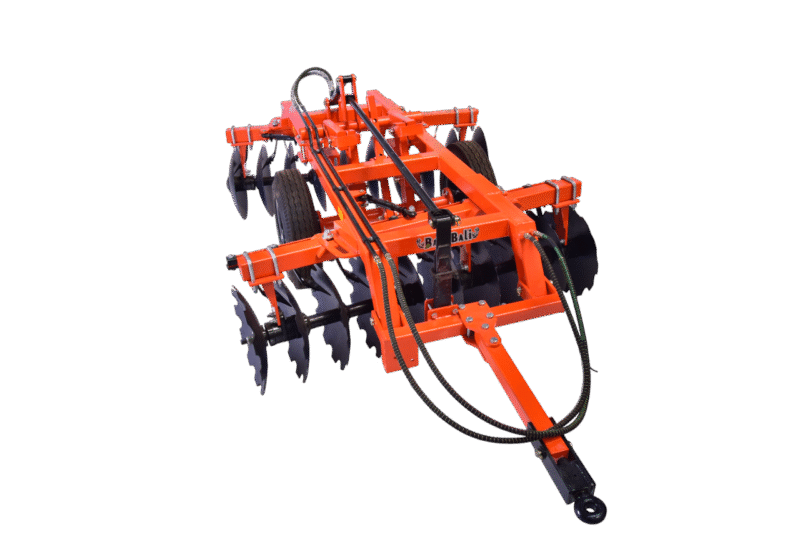

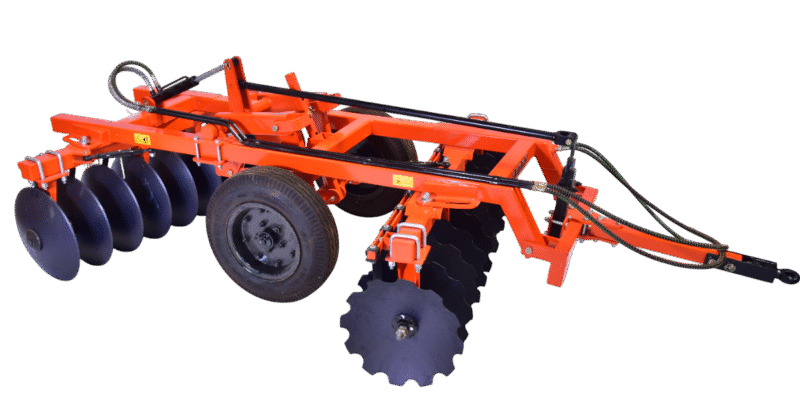

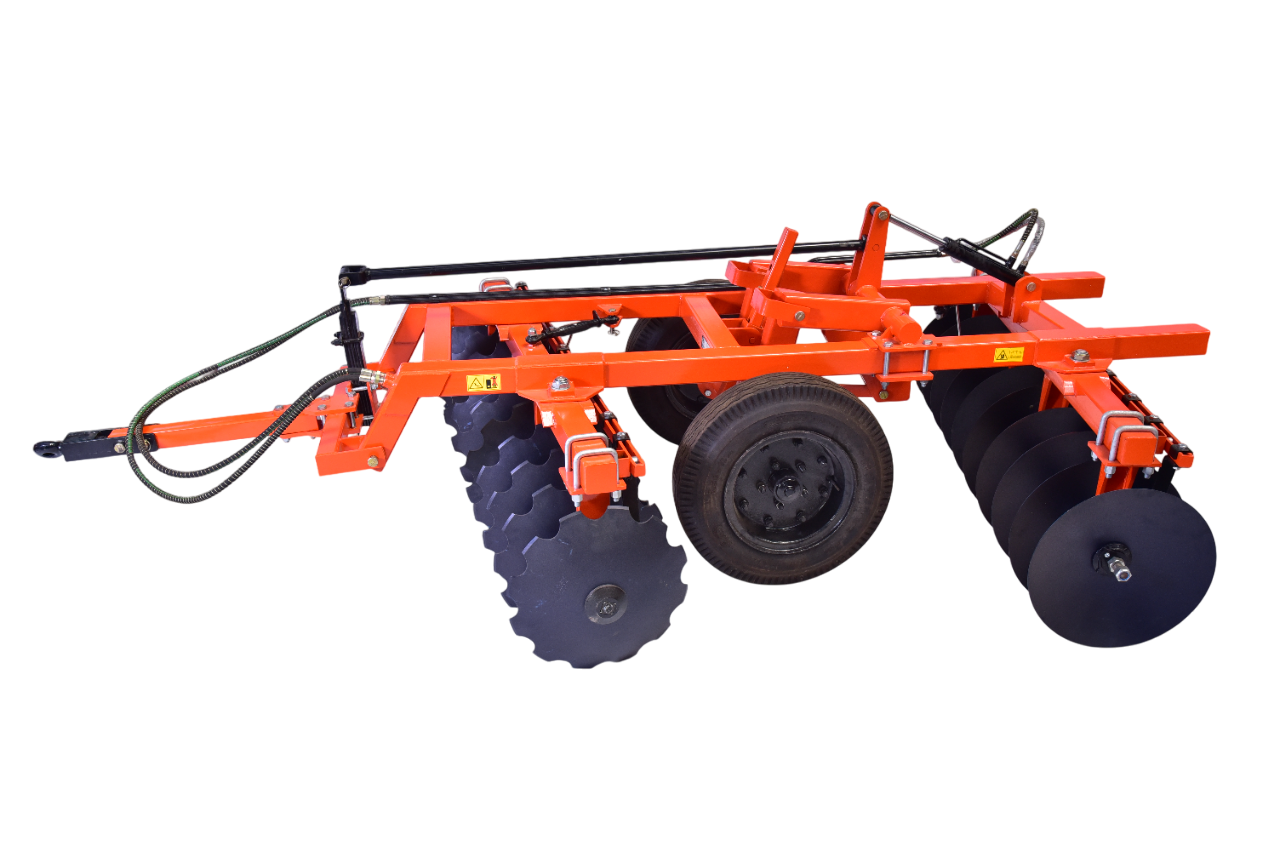

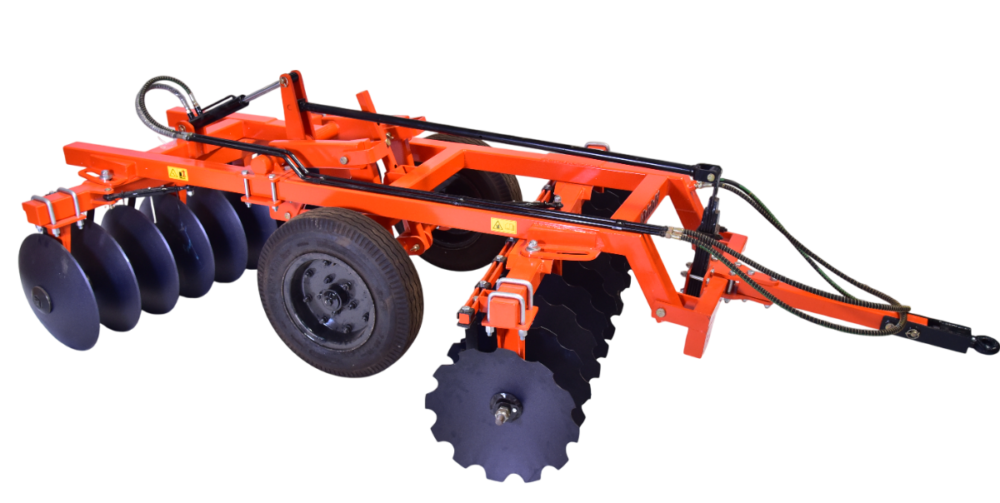

Center Tyre Disc Harrow

Designed to work easily in tough operating conditions. Can be used for both, surface disc harrowing (superficial ploughing) and intensive deep ploughing.
Easy to transport on the tyres using the hydraulic system.
The long lasting and reliable tyres and hydraulic mechanism enable the operator to control the cut depth and facilitate in easy transportation.
Due to center tyre moving from one place to another place is balance and easy.
High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.
High quality seals prevent the entry of mud and water into the bearings and hubs.

Description

Specification

Model Number	18DHCTH	20DHCTH	22DHCTH	24DHCTH	28DHCTH
Number Of Disc	18 Disc	20 Disc	22 Disc	24 Disc	28 Disc
Type of mounting	Three point Hitch Linkage (CAT II)
Disc Dia (mm) (Optional)	610 (660)
Disc Type	Front: Notched, Rear: Plain
Frame	100 X 100 mm
Disc Spacing (mm)	228.6(9”)
Maximum Depth (mm)	150-200 (Depends on soil moisture and field conditions)
Width of Cut & Shaft (mm)	( Adjustable), 40 X 40
Bearings Hub	6	8	8	8	8
Tyre Size	7.5 X 16 Tyre
Total Weight (Approx.) Kgs 610 mm	1020	1220	1420	1580	1670
Suitable HP Range	70	90	100	100-120	135
