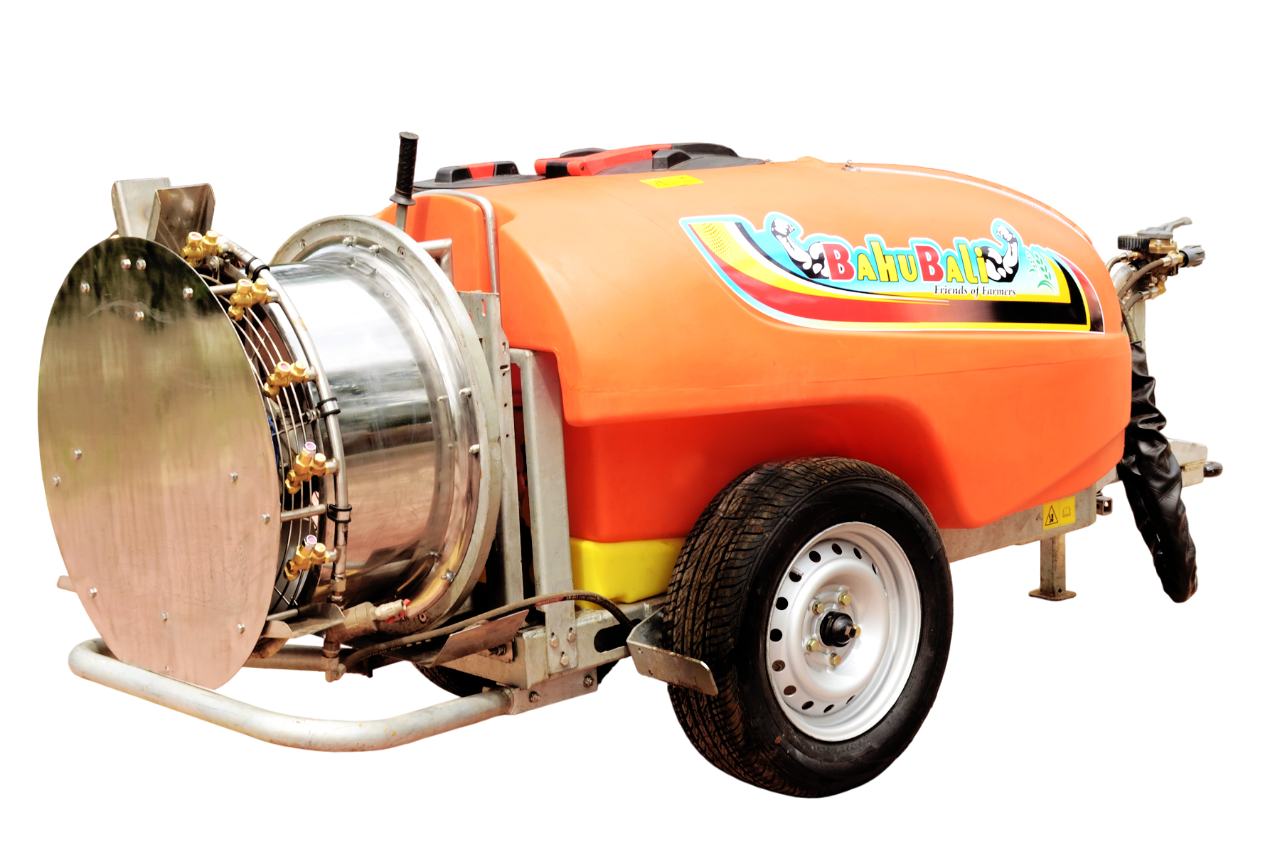

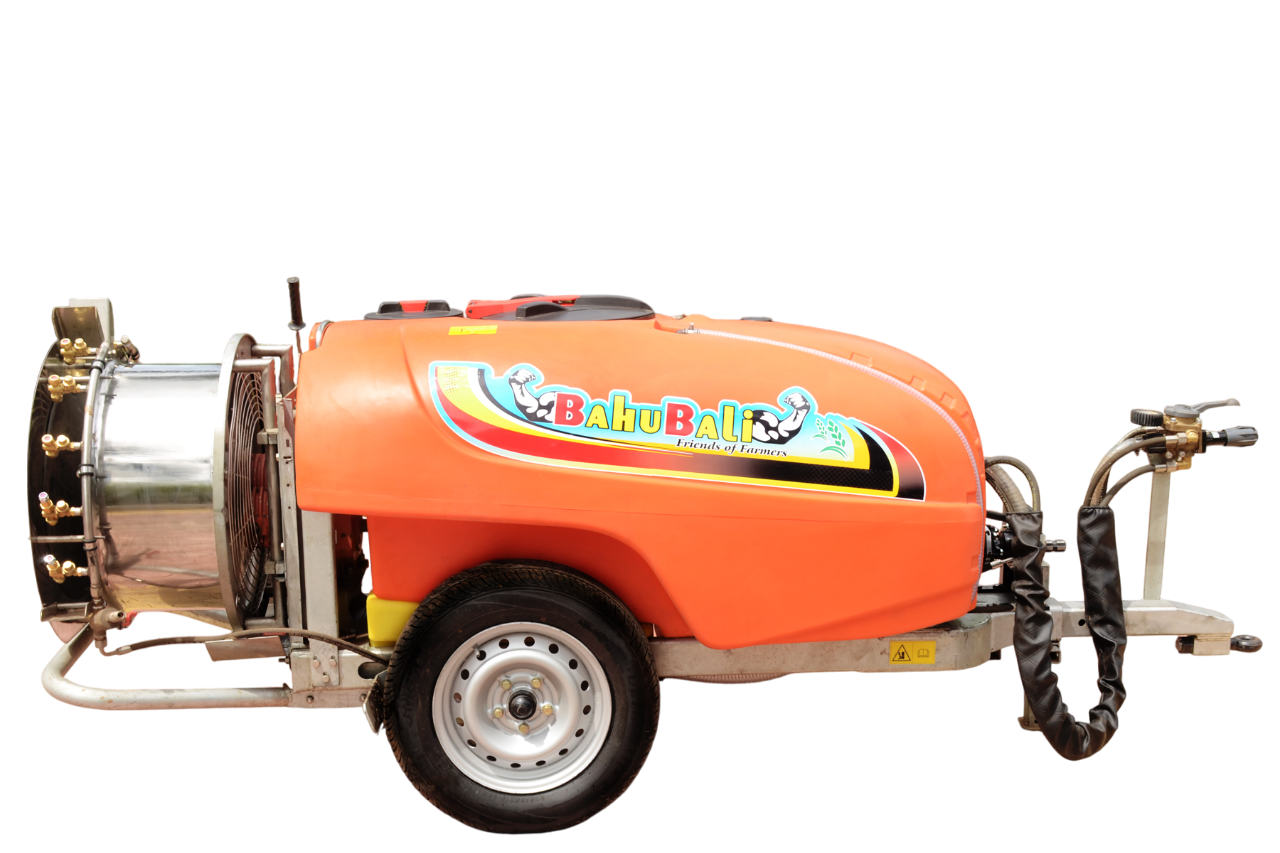

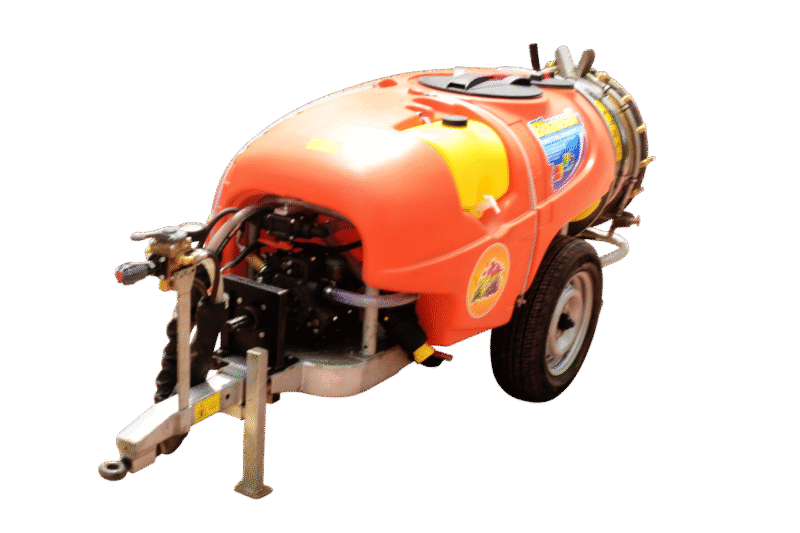

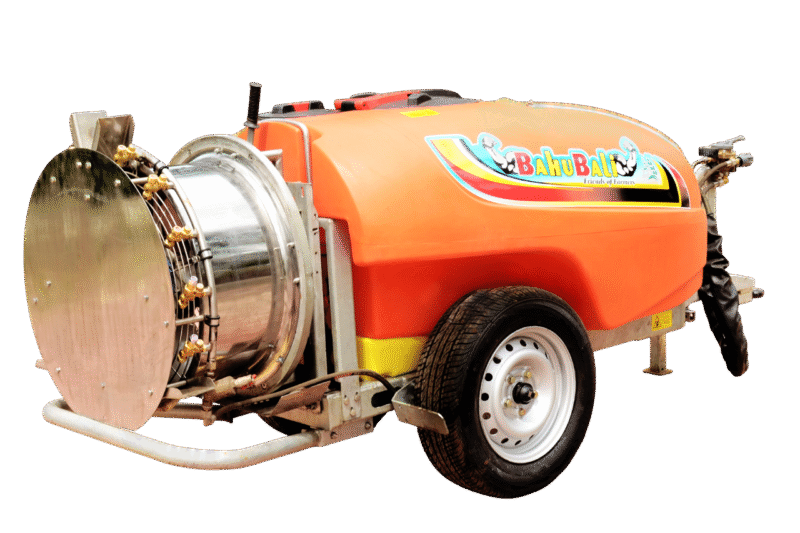

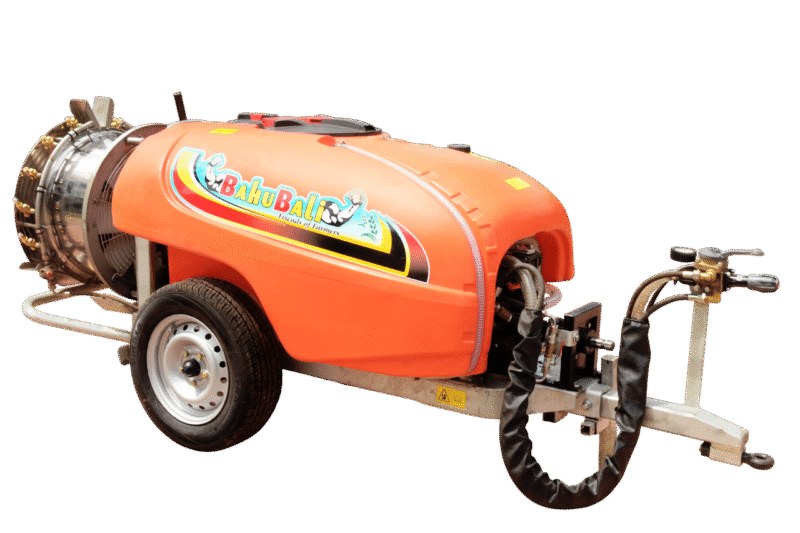

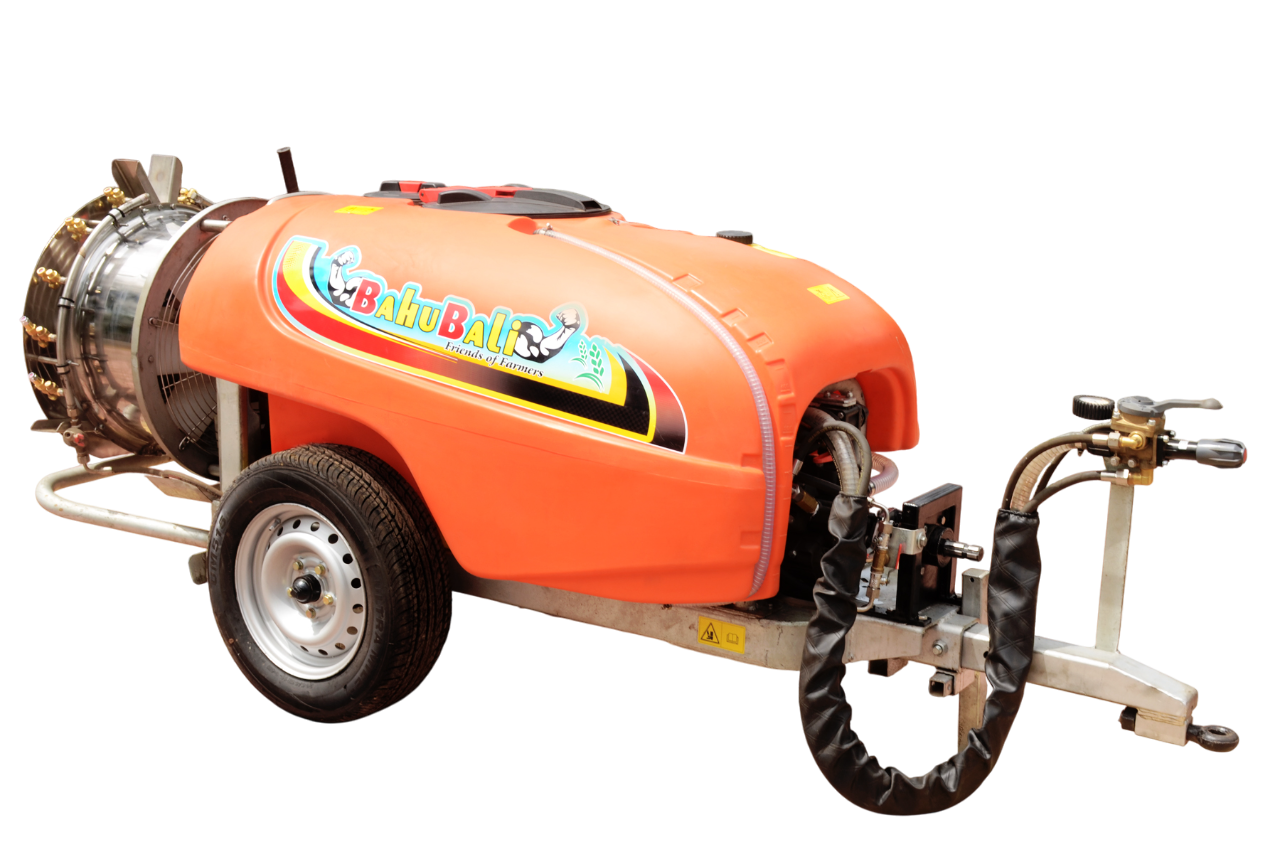

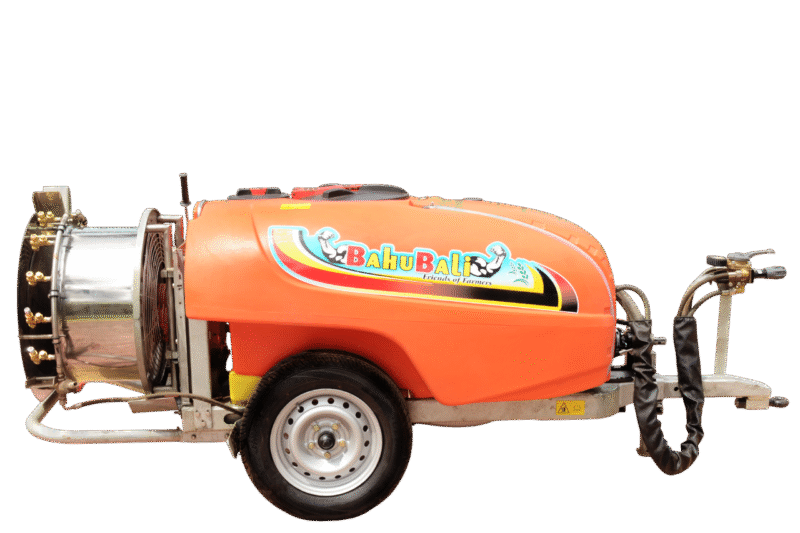

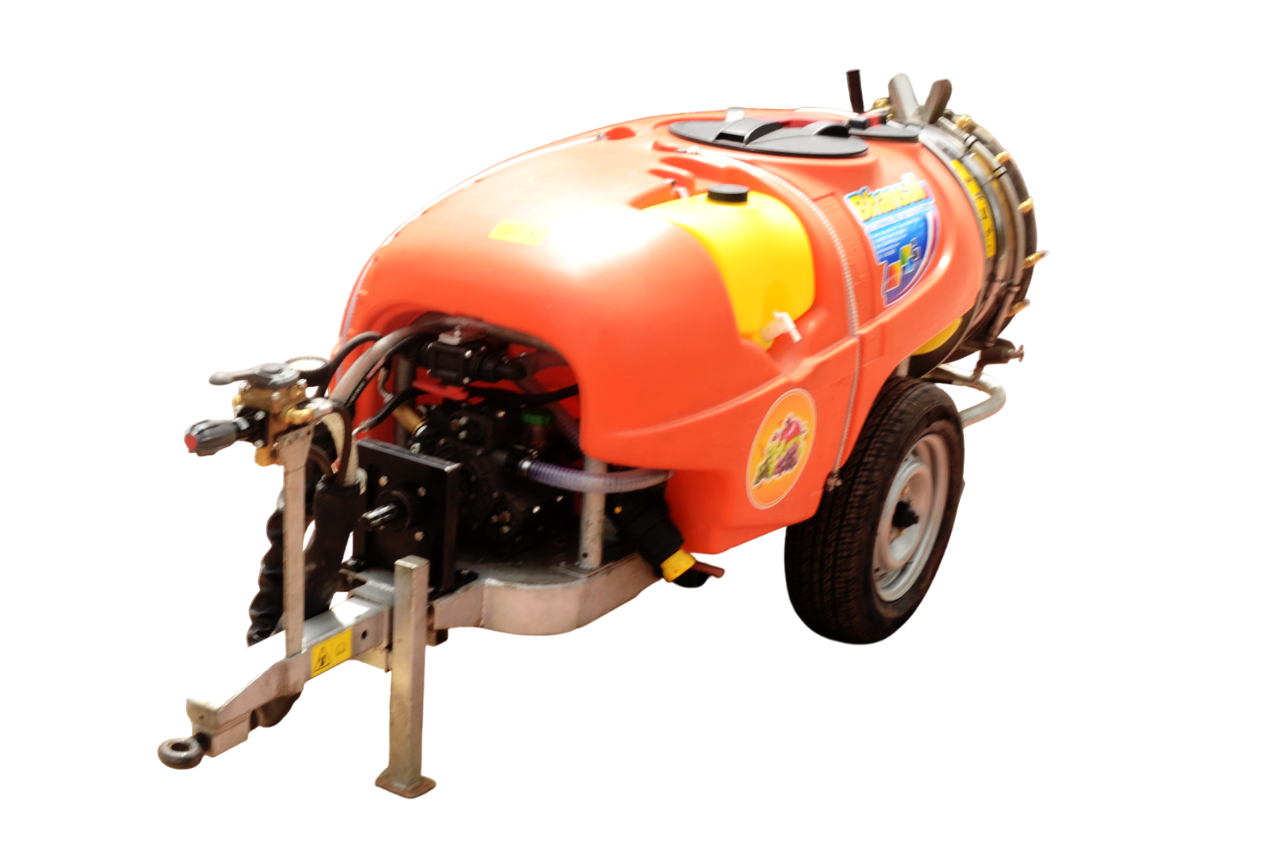

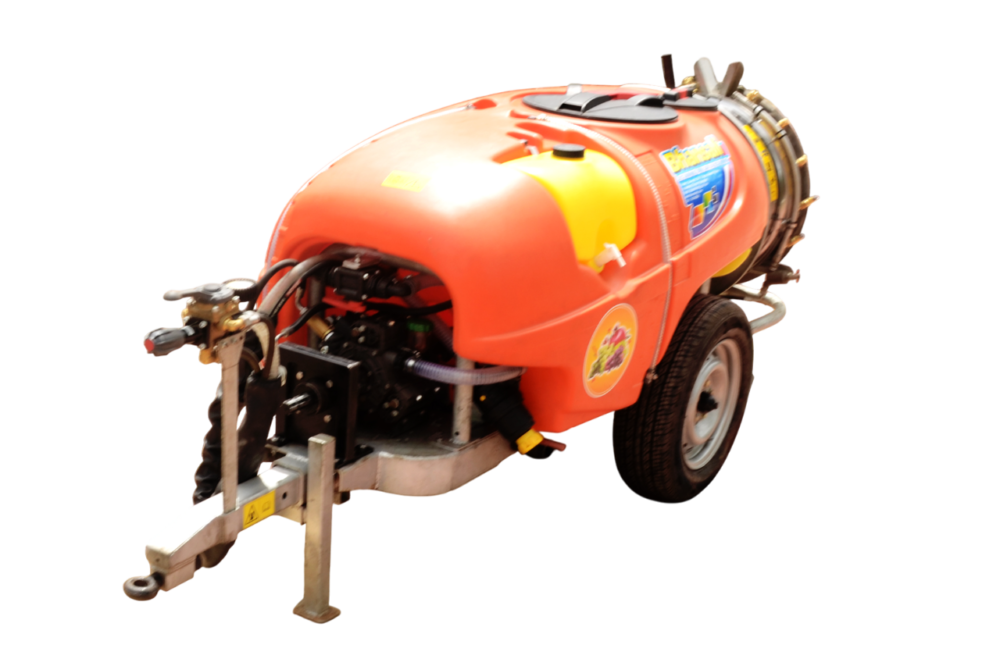

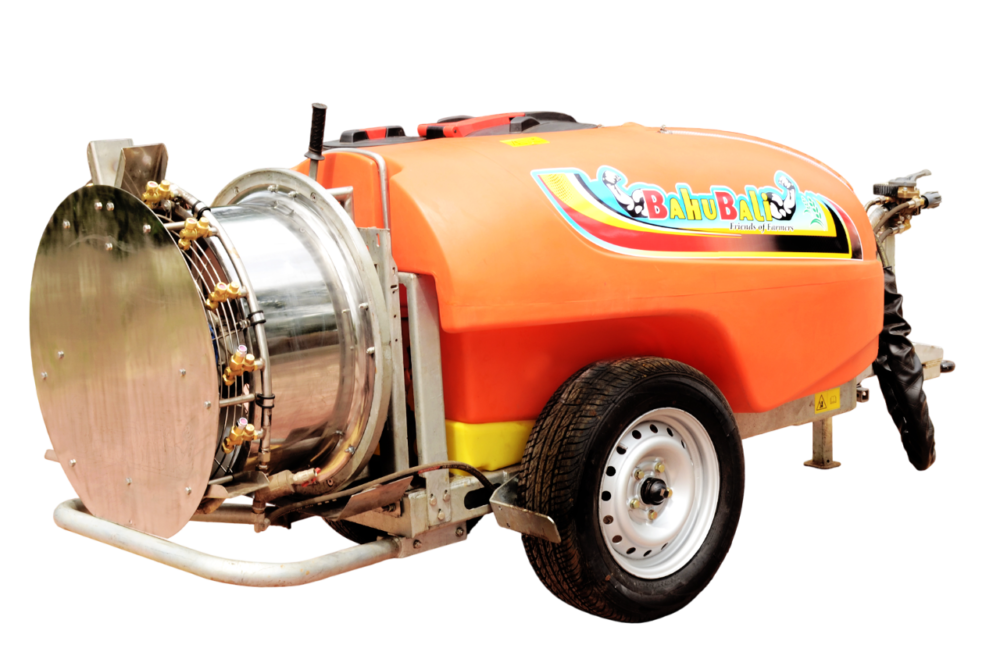

Air assisted sprayer

Reverse fan system for avoid the suction of residuals from ground.
Chemical mixture tank (main), rinsing tank and hand wash tank makes it strong, sturdy and durable.
Anti-coating tank to avoid impact of any environmental conditions.
Rinsing tank can be used to clean hydraulic circuits such as a nozzle, pump and tank.
Diaphragm pump has very low maintenance. It ensures equal flow to each nozzle.
Fan bear any impact of the atmospheric condition and avoids any change in angle of fan thus giving uniform air output.
Fan having the facility of changing the degree of blades to change the air flow.
Well-designed Stainless steel/galvanized fan casing (optional).
Galvanized and powder coating Single piece strong chassis which is fight against corrosion.
Wide angle draw bar and PTO shaft for lowest turning radius.
Suction filter clean the water coming from tank to pump and nozzle filter to avoid blocking of nozzle.
Tubeless tyres have mud removing scrappers, 3-way adjustable and strong bumpers for tank safety.
We can change height of spray nozzles by using tyres axle, So that we can spray in any kind of grape garden very easily.
We can change air flow in required direction by making change in direction of deflectors.
Easy service and maintenance.

Description

Specification

Description	SDF600	SDF800	SDF1000	SDF1500
Fan arrangement	Single/Double fan
Transmission system	Multi speed (Gearbox)
Type of pump	High Pressure Diaphragm pump (Italian)
Pump discharge (lpm), pressure (bar), RPM (rpm)	75, 40, 540	75, 40, 540	75, 40, 540	100, 40, 540
Types of nozzle / Control Brass	Tee-jet/ Comet
Speed Ratio	1:3.5 & 1:45
Main Tank Capacity, lit (Italian imporated)	600	800	100	1500
Hand and System Washing Tank	Available
Material of tank	Polyethylene
Working pressure, bar	Max 20 Bar
Number of Nozzle	10	10	12	14
Required Tractor power (HP)	24 hp and above	24 hp and above	36 Hp And above	36 Hp And above
Diameter of fan assembly, mm	610		660	711
Material of fan and fan casing	Glass Reinforced Polypropylene Nylon, Stainless steel
Types of Filter	160 ltr,80 mesh suction filter and 50 mesh nozzle filter
